Chapter 2 Wireless Device Overview
Network Configuration Examples
Central Unit in an All-Wireless Network
In an all-wireless network, an access point acts as a stand-alone root unit. The access point is not
attached to a wired LAN; it functions as a hub linking all stations together. The access point serves as
the focal point for communications, increasing the communication range of wireless users.
Figure 2
shows an access point in an all-wireless network.

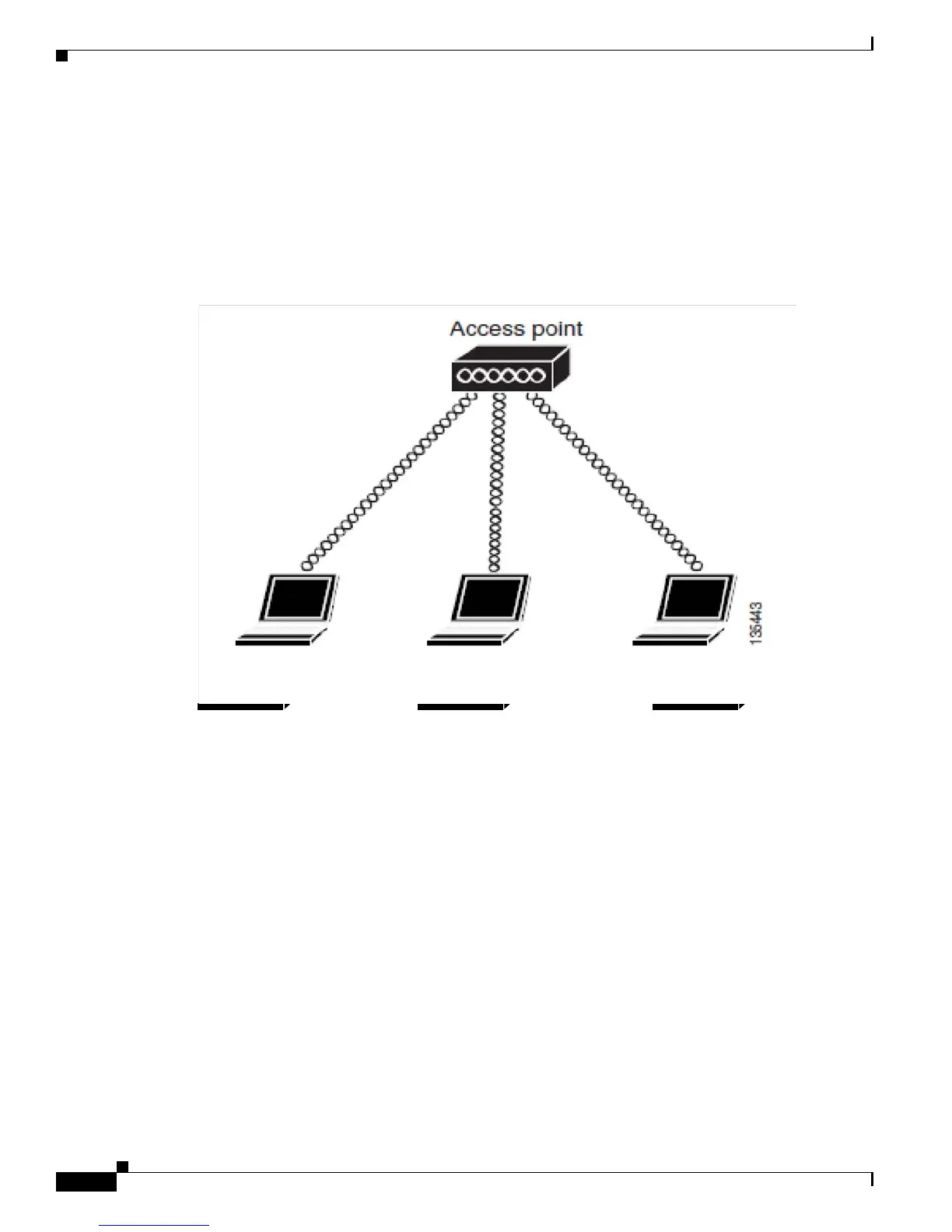

Figure 2 Access Point as Central Unit in All-Wireless Network
Access point
135443
