1-103
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

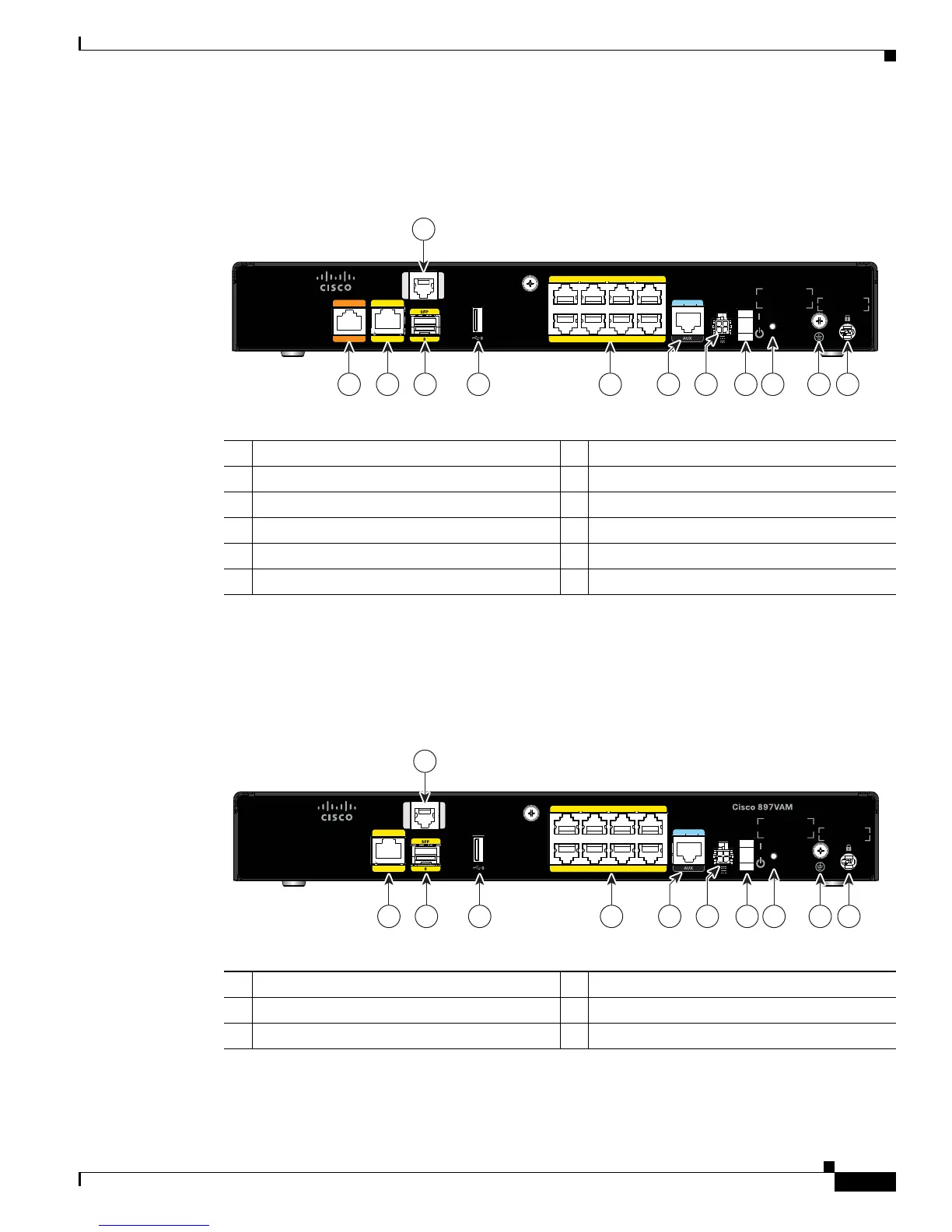

Figure 1-63 shows the back panel of the Cisco 897VA Router.
Figure 1-63 Back Panel of the Cisco 897VA Router
Figure 1-64 shows the back panel of the Cisco 897VAM Router.
Figure 1-64 Back Panel of the Cisco 897VAM Router
7 6 GELAN 5 4
3 2 POE 1 0
0
ISDN
8
GE WAN
54VDC 1.2A
12VDC 2.5A
VDSL/ADSL
overPOTS
CONSOLE
RESET
Cisco 897VA
344767
12
1 2 3 4 5 8 9 10 11
6 7
1 ISDN 7 Power connector
2 GE WAN interface 8 On/Off switch
3 SFP port 9 Reset button
4 USB port 10 Earth ground connection
5 8-port Gigabit Ethernet switch
1
11 Kensington security slot
6 Console/Auxiliary port 12 VDSL/ADSL over POTS
1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with
the factory order, you must order and install it to enable the PoE function.
7 6 GELAN 5 4
3 2 POE 1 0
8
GE WAN
54VDC 1.2A
12VDC 2.5A
VDSL/ADSL
overPOTS
CONSOLE
RESET
344769
11
1 2 3 4 7 8 9 10
5 6
1 GE WAN interface 7 On/Off switch
2 SFP port 8 Reset button
3 USB port 9 Earth ground connection
