Chapter 1 Product Overview
Cisco 860, 880, 890 Series

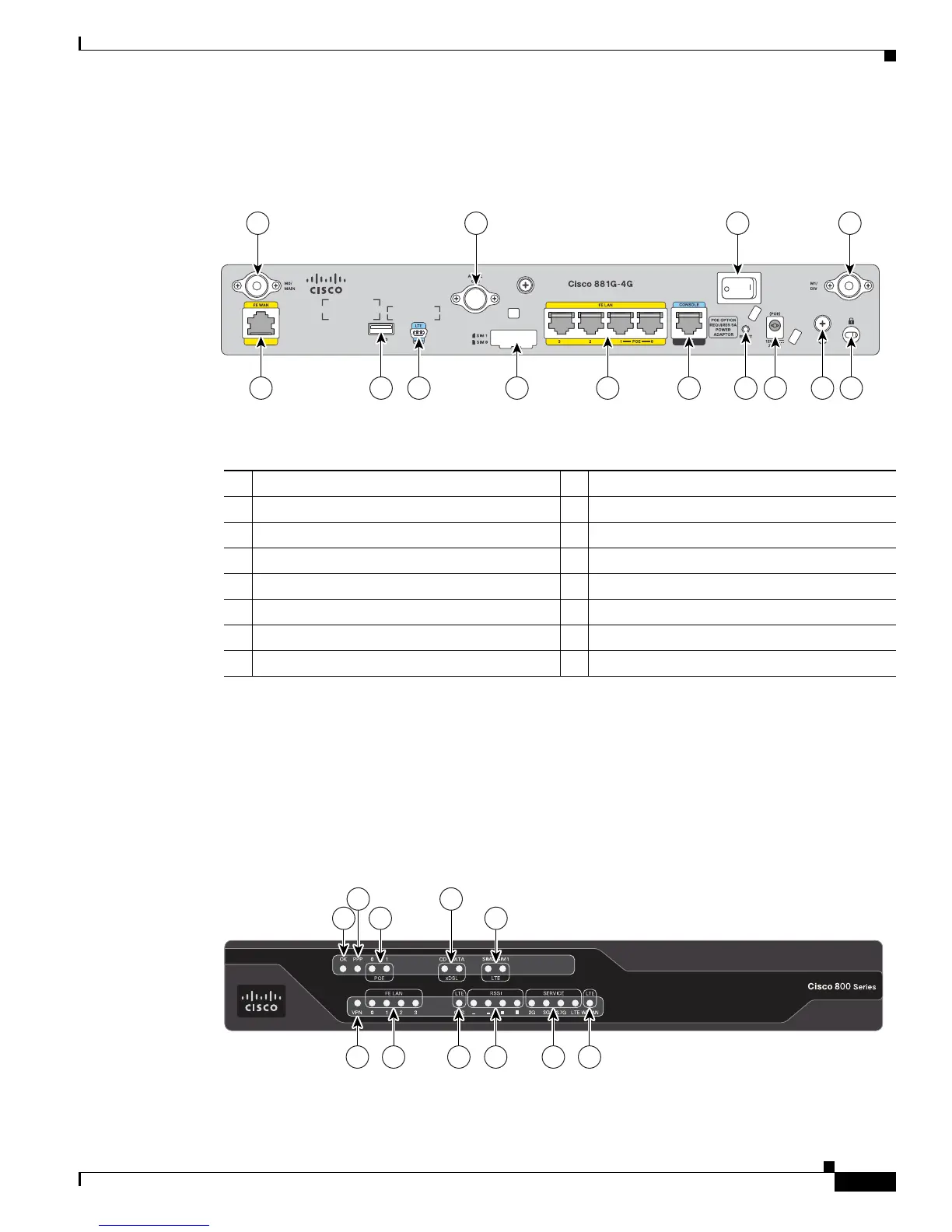

Figure 1-45 shows the back panel of the Cisco C881G-4G ISR.
Figure 1-45 Back Panel of the Cisco C881G-4G ISR
For information on installing the Cisco C880 Series Routers, see:
http://www.cisco.com/c/en/us/td/docs/routers/access/800/hardware/installation/guide/800HIG.html
Cisco C887VAG-4G Integrated Services Router
Figure 1-46 shows the front panel of the Cisco C887VAG-4G ISR.
Figure 1-46 Front Panel of the Cisco C887VAG-4G ISR
372522
1 2 3 4 5 6 8 1097
11121314
1 Primary WAN port—FE 9 Earth ground connection
2 USB port 10 Kensington security slot
3 4G port 11 4G Antenna connector—M1/DIV
4 SIM slots 12 Power switch
5 4-port 10/100 Ethernet switch 13 Active GPS antenna connector
6 Serial port—Console or auxiliary 14 4G Antenna connector—M0/MAIN
7 Reset button
8 Power connector
372529
6 7 8 9 10 11
1 3
2 4
5
