Cisco Integrated Services Router Hardware Installation Guide
Chapter 2 Installing the Router
Installing the Cisco 810 ISR
To mount the router on a wall, follow these steps:
Step 1 Remove the screws on the sides of the routers.
Step 2 Attach the standard brackets to the chassis using the three screws provided for each bracket. (See
Figure 2-21.)

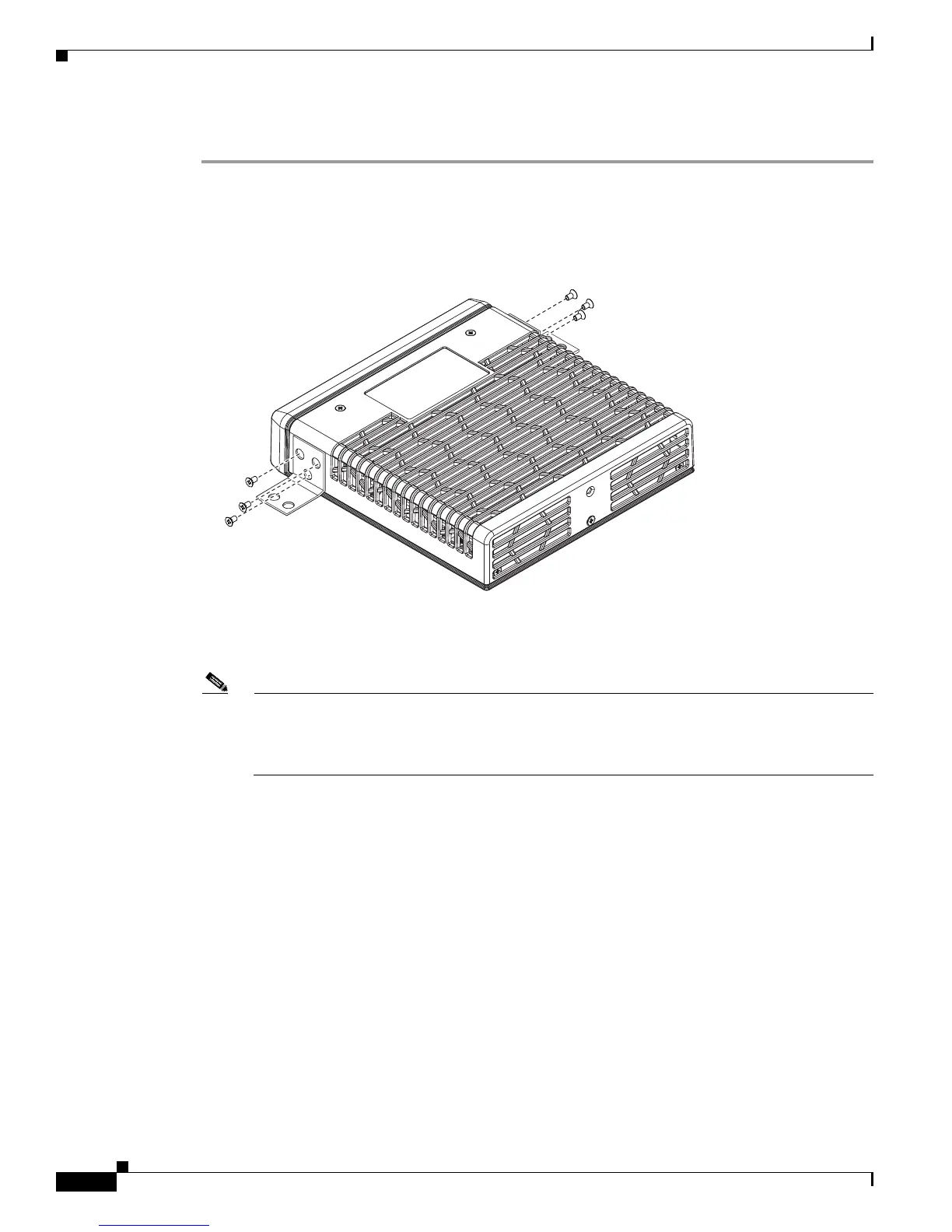

Figure 2-21 Attaching the Standard Brackets
Step 3 Install the router to a wall stud using two number-10 wood screws, round- or pan-head, with number-10
washers or two number-10 washer-head screws. The screws must be long enough to penetrate at least 1.0
inch (25.4 mm) into the supporting wood or metal wall stud. (See Figure 2-22.)
Note The orientation of the Cisco 819 ISR products is critical when wall-mounting. The router must
be oriented as shown in Figure 2-22 with the left side of the router rotated up (as viewed from
the IO side) to comply with IP41 and safety criteria. No other wall mounting orientation is
supported.
