Step 5 Connect the extension cable to the 3G card, as described in the “Connecting the 3G Card” section on
page 3-18. The complete assembly is shown in Figure 3-24.

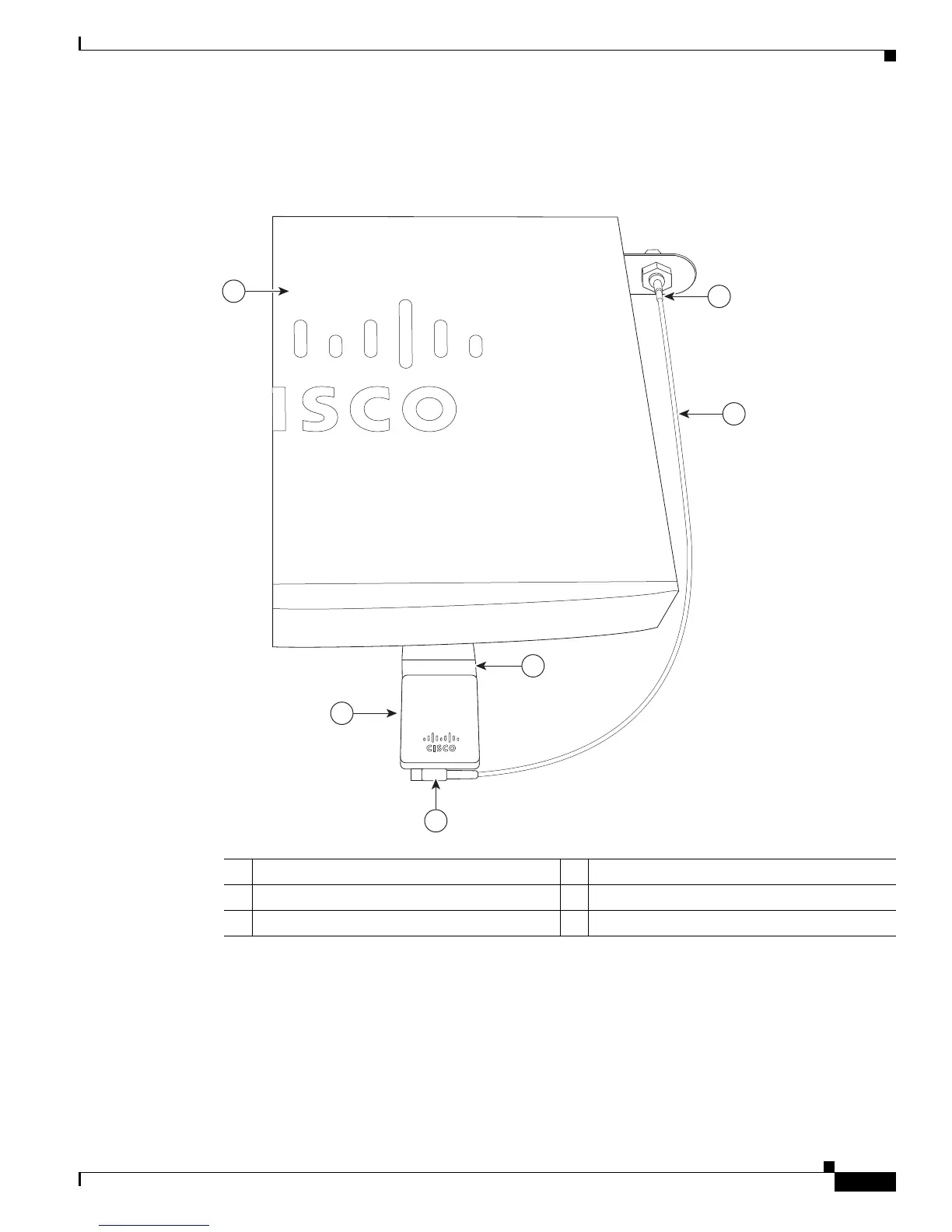

Figure 3-24 Adapter Connected to 3G Card and Router Chassis
Now the adapter is ready for use with the extension cable.
Table 3-3 lists the loss information for the ultra-low-loss (ULL) LMR 400 cables available with the
adapter for the 3G fixed platforms.
1 Router chassis 4 SSMB or SMK-TS-9 connector
2 3G adapter for extended cable/antenna 5 3G card inserted into the router
3 Cable 6 3G card
279089
3
2
1
6
5
4
