Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

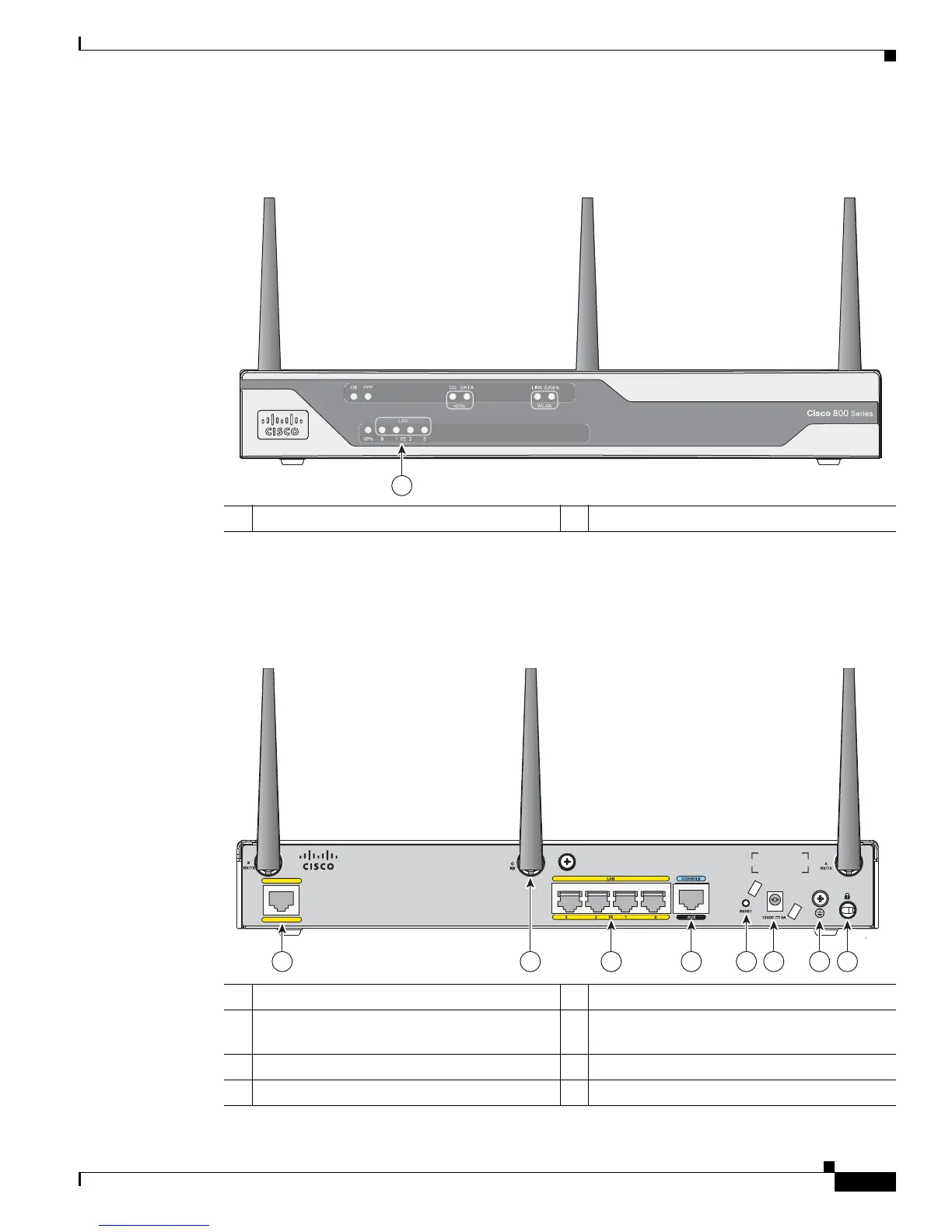

Figure 1-7 shows the front panel details of the Cisco 860 wireless router.
Figure 1-11 Front Panel of the Cisco 860 Series Wireless ISR
Figure 1-12 shows the back panel details of the Cisco 861 wireless (861W) ISR. Nonwireless routers do
not have antennas on the back panel. However, the feature locations are similar for all Cisco 860 series
routers.
Figure 1-12 Back Panel of the Cisco 861W ISR
1 LEDs
231969
1
1 Primary WAN port—10/100 5 Reset button
2 Antenna—captive omnidirectional dipole
WLAN antenna (wireless models only)
6 Power connector
3 4-port 10/100 Ethernet switch 7 Earth ground connection
4 Serial port—console or auxiliary 8 Kensington security slot
232181
31 4 6 7 852
WAN
FE 4
Cisco 861W
