Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

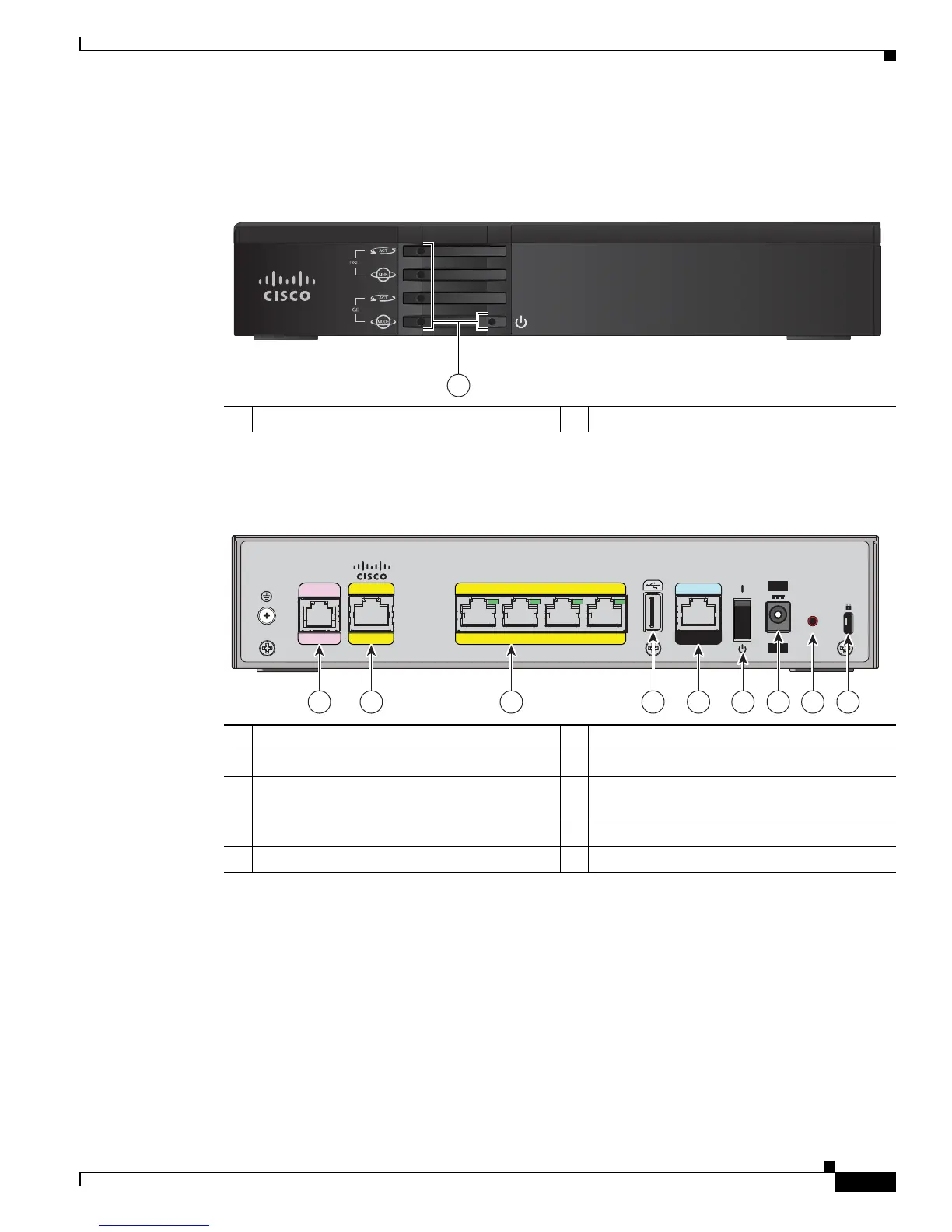

Figure 1-13 shows the front panel details of the Cisco 866VAE, Cisco 867VAE, Cisco 866VAE-K9, and
Cisco 867VAE-K9 integrated services routers (ISRs).
Figure 1-13 Front Panel of the Cisco 860VAE series ISR
Figure 1-14 shows the back panel details of the Cisco 866VAE ISR.
Figure 1-14 Back Panel of the Cisco 866VAE ISR
1 LEDs
246199
Cisco 860 Series
1
1 xDSL port
1
1. Using RJ-11.
6 On/Off switch
2 GE WAN interface 7 Power connector
3 Ethernet LAN FE interfaces (FE0 through
FE3 interfaces)
8 Reset button
4 USB port 9 Kensington security slot
5 Serial port—console or auxiliary
246200
CONSOLE
AUX
FE 2 FE 1 FE 0FE 3OVER ISDN
LAN
WAN
GE0
VDSL/ADSL
12V 2.5A
RESET
Cisco 866VAE
1 2 3 4 7 8 95 6
