1-47
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

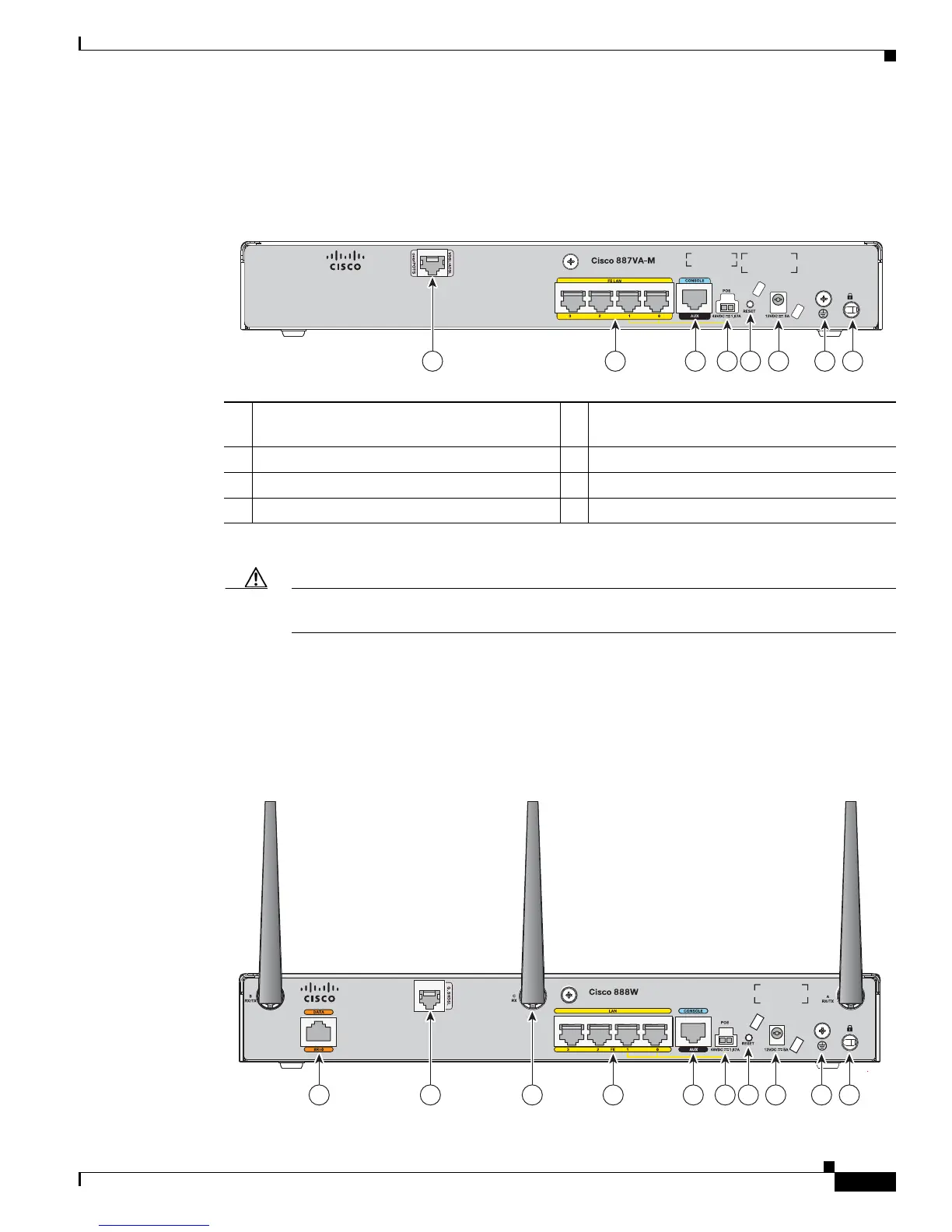

Figure 1-20 shows the back panel details of the Cisco 887VA and 886VA-M data router.
Figure 1-20 Back Panel of the Cisco 887VA and 887VA-M Router
Figure 1-21 shows the back panel details of the Cisco 888W data router. Nonwireless routers do not have
antennas on the back panel. However, the feature locations are similar across all Cisco 880 series data
routers.
Figure 1-21 Back Panel of the Cisco 888W Data Router
254139
2 3 4 6 7 851
1 Primary WAN port—VDSL/ADSL over
POTS
1
5 Reset button
2 4-port 10/100 Ethernet switch
2
6 Power connector
3 Serial port—console or auxiliary 7 Earth ground connection
4 PoE power connector—optional 8 Kensington security slot
1. 887VA-M has Annex M support.
2. Ports 0 and 1 provide PoE with the optional PoE module installed.
For the Cisco 887VA, the primary WAN port is designed for an RJ-11 connector only. Damage to the
primary WAN port may occur if a non-RJ-11 connector is inserted.
231951
1 4 5 6 8 9 1072 3
