Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series
Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF
or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables,
detach the end away from the unit first. Statement 1026
To connect the FXO line, follow these steps:
Step 1 Connect one end of the straight-through RJ-11 cable to the FXO port. See Figure 3-37.

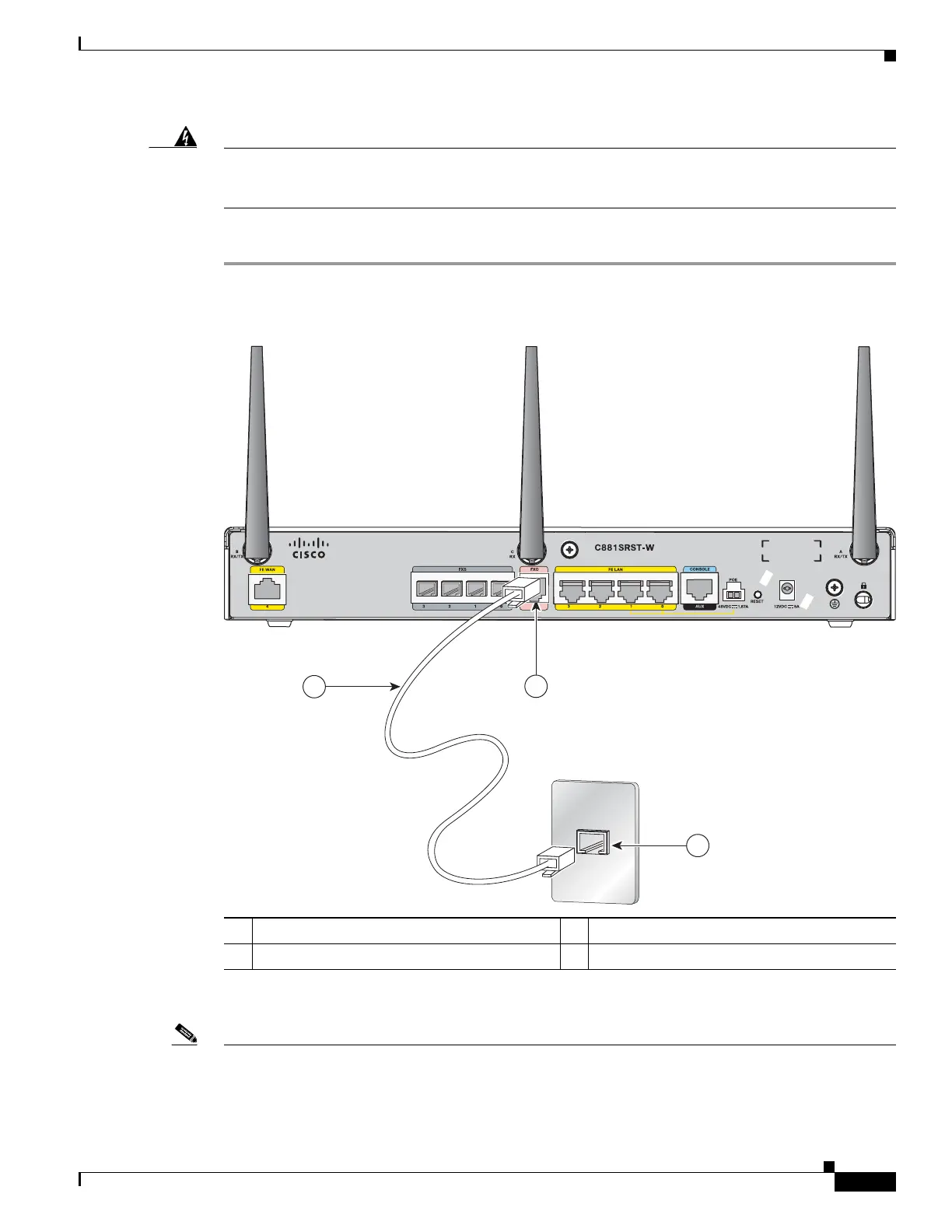

Figure 3-37 Connecting an FXO Line
Step 2 Connect the other end of the RJ-11 cable to a telephone wall outlet.
Note If you have specified the use of a private line automatic ringdown (PLAR) off-premises extension (OPX)
connection mode for an FXO voice port (with loop resistance less than 8000 Ohm), you must ensure that
the soft-offhook option is enabled on the port.
1 FXO port 3 Telephone outlet
2 RJ-11 cable
270542
2
1
3

Cisco 890 Series Specifications

General

Product Type	Router
Form Factor	Desktop
USB Ports	1 x USB 2.0
Firewall	Yes
VPN Support	Yes
RAM	256 MB
Wireless	802.11n
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	10 to 85% non-condensing
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	TCP/IP
Routing Protocol	OSPF, BGP, RIP-1, RIP-2, EIGRP, HSRP, VRRP
Remote Management Protocol	SNMP, Telnet, HTTP, HTTPS, SSH
Features	VPN support, firewall protection, Quality of Service (QoS), VLAN support
Encryption Algorithm	AES, 3DES, DES
