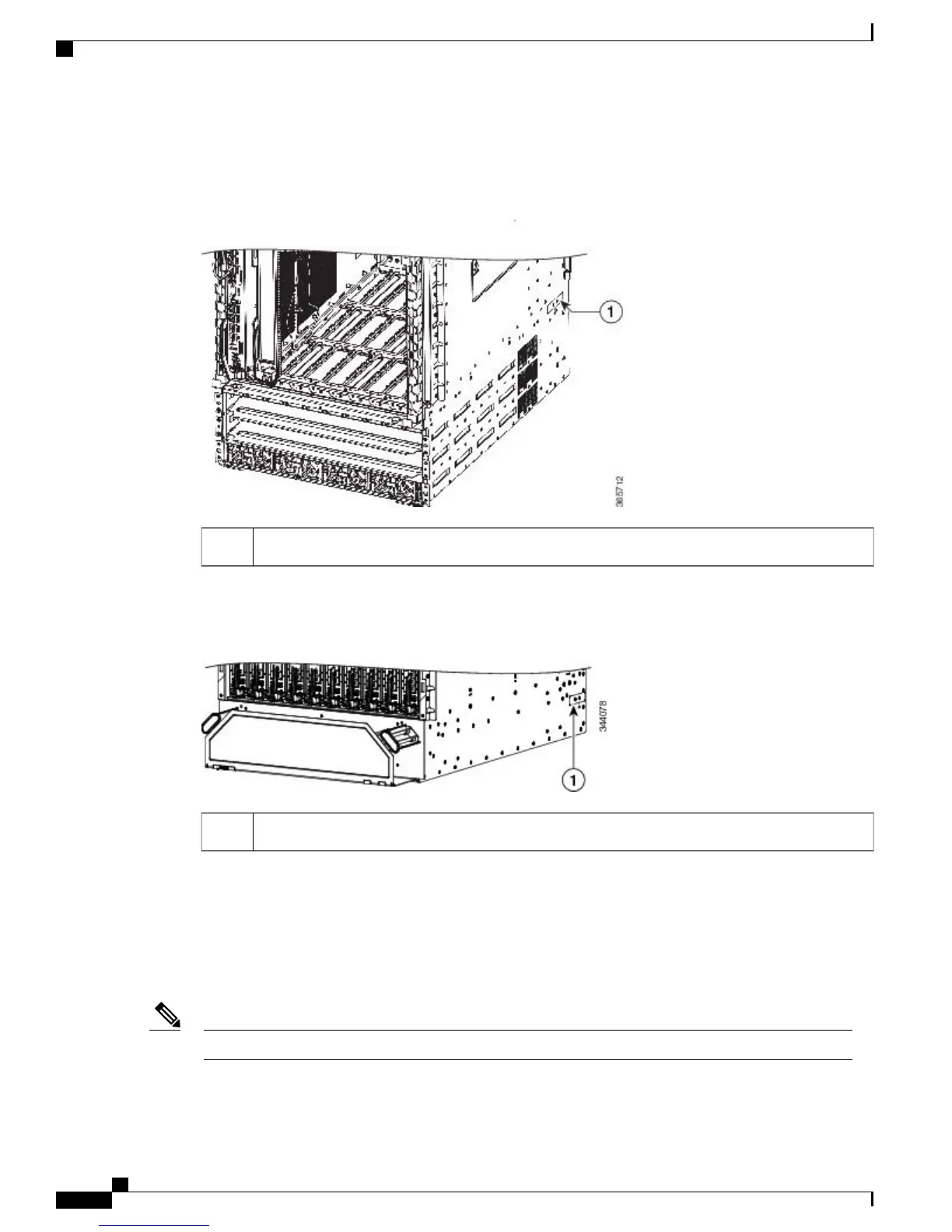

Figure 59: NEBS Bonding and Grounding Point on the Cisco ASR 9912 Router
NEBS grounding point near bottom, rear, right side of the chassis1
Figure 60: NEBS Bonding and Grounding Point on the Cisco ASR 9922 Router
NEBS grounding point near bottom, rear, right side of the chassis1
To ensure a satisfactory supplemental ground connection to the router, use the following parts:
•
One grounding lug, which has two holes with 0.625- to 0.75-inch (15.86- to 19.05-mm) spacing between
them, and a wire receptacle able to accept a #6 AWG or larger, multistrand copper wire.
•
Two 10-32 x 0.25-inch round-head screws and two locking washers (nickel-plated brass is ideal).
The chassis ground wire connectors have a torque value of 30 in-lb.Note
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
56
Preparing for Installation
Site Requirement Guidelines
