If the AP needs to be mounted directly to a ceiling on the grid work, then AIR-AP-BRACKET-1 is flush mounted and has the lowest
profile. However, if the AP is mounted to an electrical box, other wiring fixture, inside a NEMA enclosure, or wall mounted, then
AIR-AP-BRACKET-2 is a better choice. The extra space in the bracket allows for wiring, and the extra holes line up with many
popular electrical boxes. When mounting the bracket to the ceiling grid work, some ceiling tiles are recessed. For this reason, two
different styles of ceiling clips, such as recessed and flush rails are available

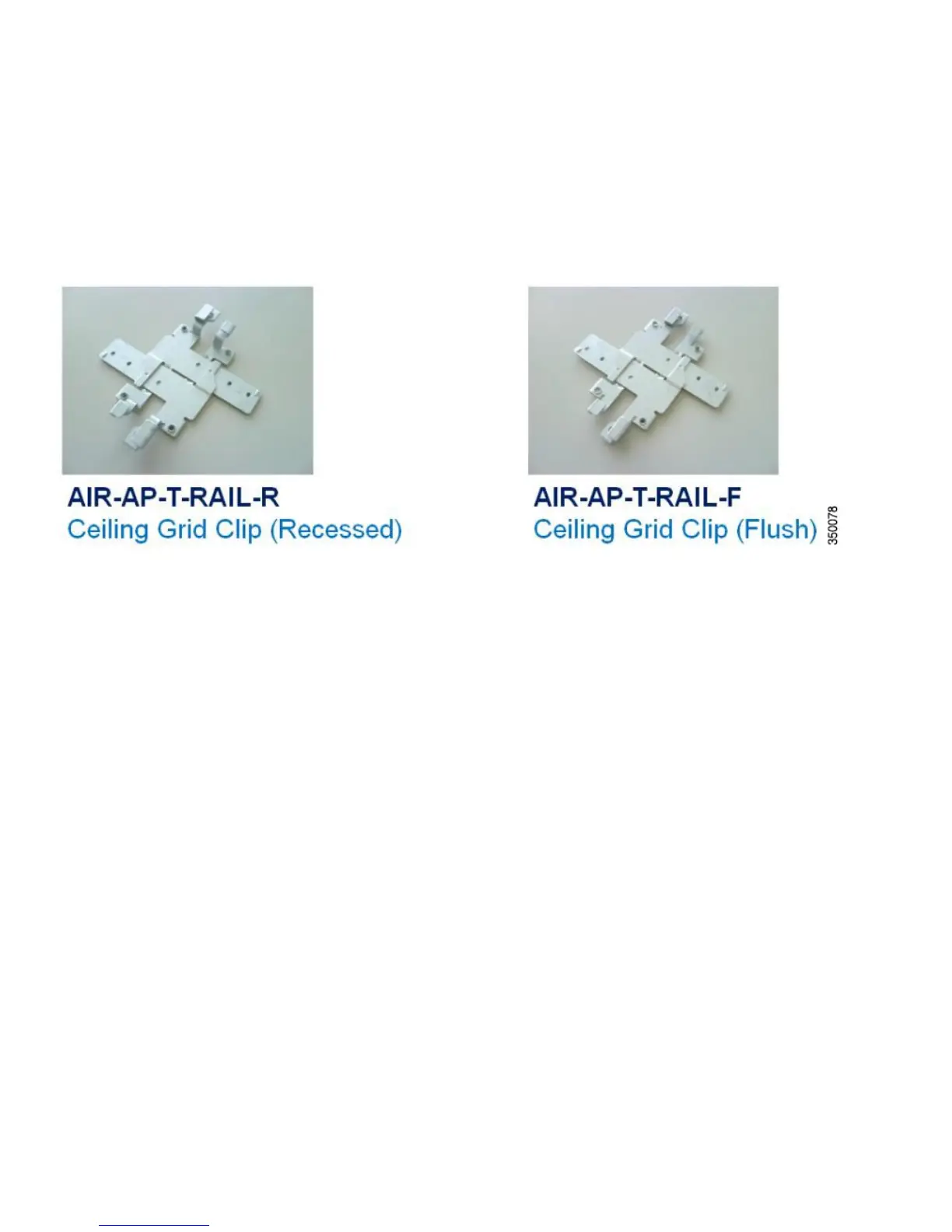

Figure 8: Different Clips are Available for Attaching to Ceiling Grid Work
