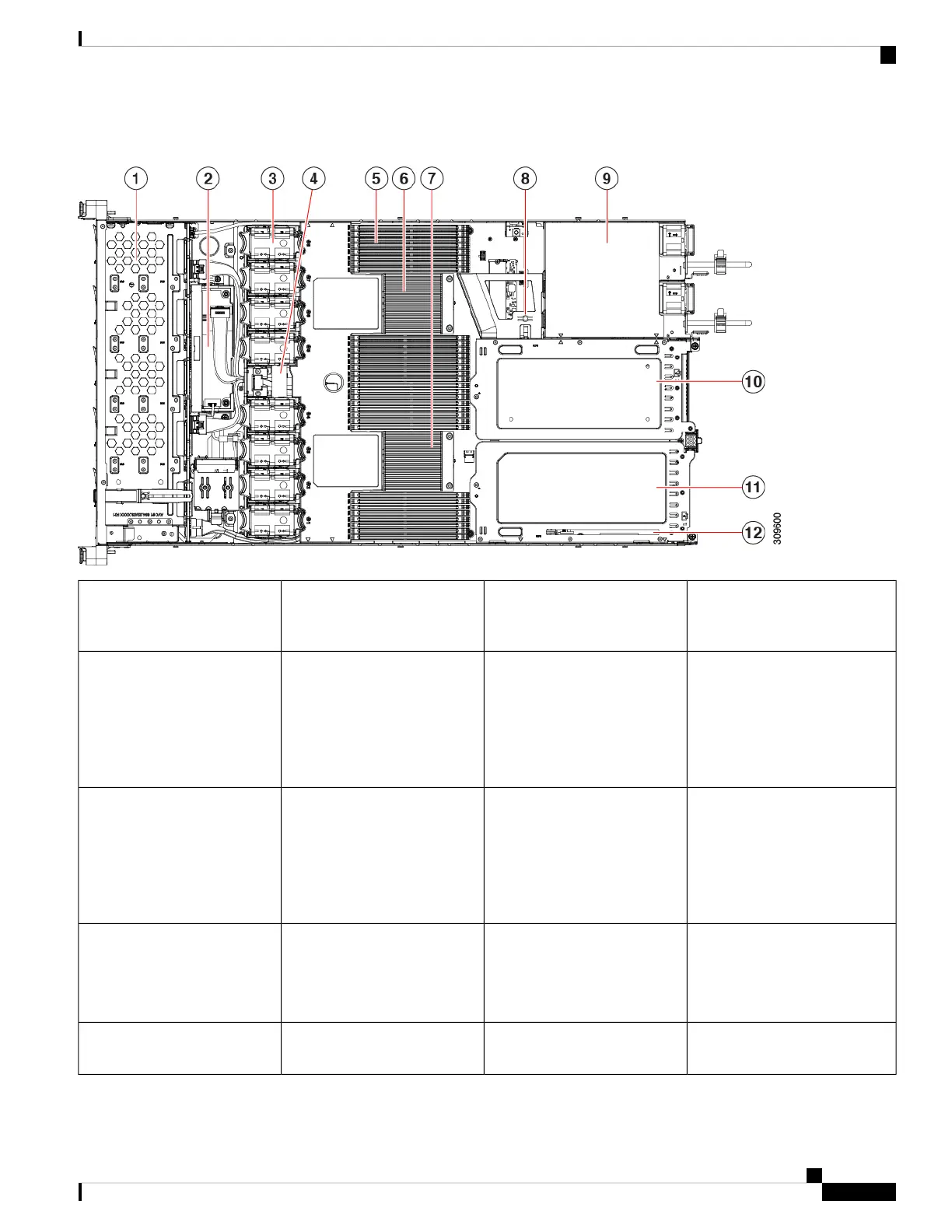

Figure 6: Cisco APIC M4 and L4 Server, Serviceable Component Locations
Cisco M6 12G SAS RAID card
or Cisco M6 12G SAS HBA
Controller
2Front-loading drive bays 1–10
support SAS/SATA/NVMe
drives.
1
SuperCap module mounting
bracket
The SuperCap module (not
shown) that mounts into this
location provides RAID
write-cache backup.
4Cooling fan modules, eight.
Each fan is hot-swappable
3
Motherboard CPU socket two
(CPU2)
6DIMM sockets on motherboard,
32 total, 16 per CPU
CPUs are arranged in groups of
eight sockets above the top CPU
and below the bottom CPU, and
16 sockets between the CPUs.
5
M.2 module connector
Supports a boot-optimized RAID
controller with connectors for up
to two SATA M.2 SSDs
8Motherboard CPU socket one
(CPU1)
7
PCIe riser slot 210Power Supply Units (PSUs),
two
9
Cisco APIC M4/L4 Server Installation and Service Guide
11
Overview
Serviceable Component Locations
