External Features
This topic shows the external features of the server versions.
Cisco APIC M4 and L4 Server (SFF Drives) Front Panel Features
The following figure shows the front panel features of the small form-factor drive versions of the server.

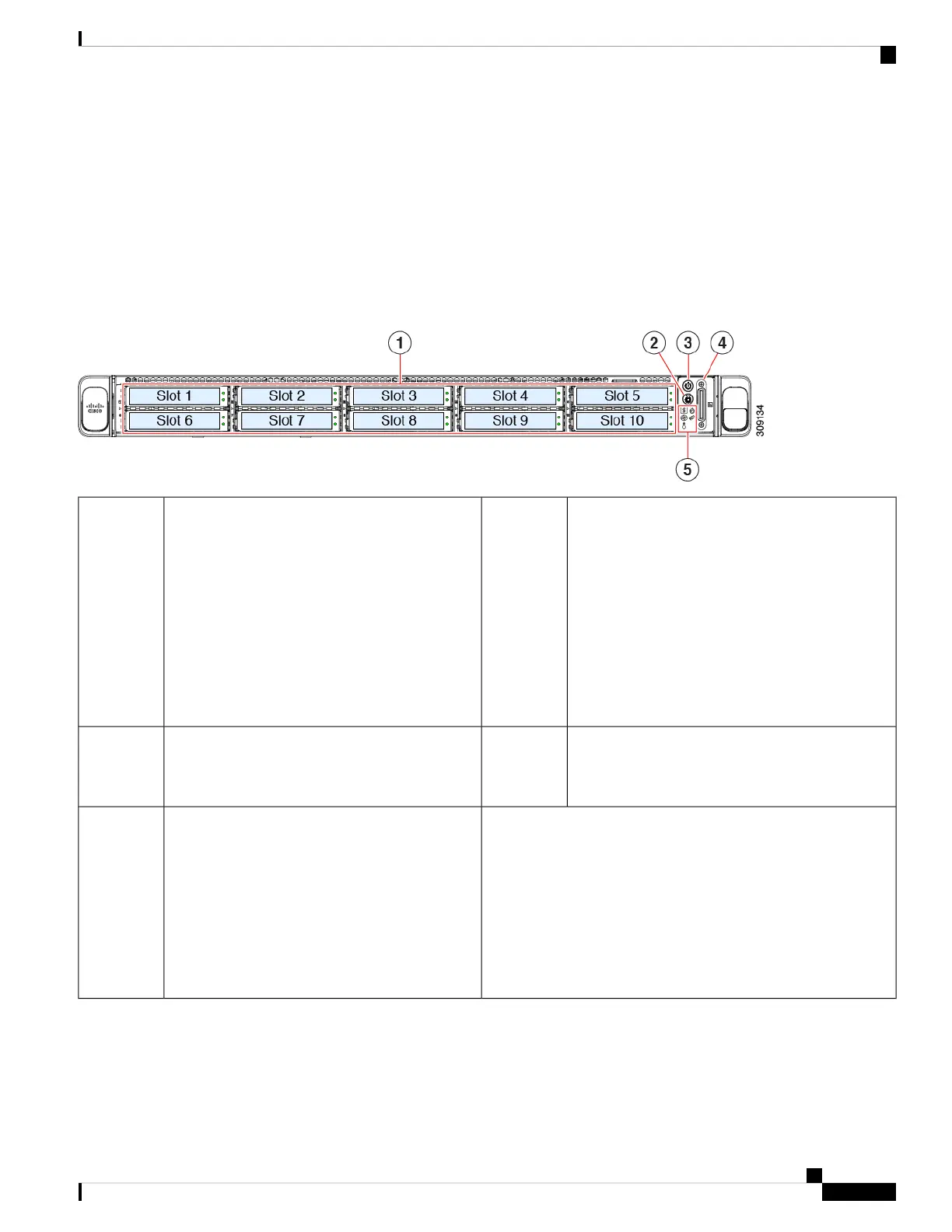

Figure 1: Cisco APIC M4 and L4 Server (SFF Drives) Front Panel
Unit identification button/LED2Drive bays 1-10 support SAS/SATA hard disk
drives (HDDs) and solid state drives (SSDs).
As an option, drive bays 1-4 can contain up to 4
NVMe drives in any number up to 4. Drive bays
5 through 10 support only SAS/SATA HDDs or
SSDs.
APIC Server-M4 and L4 — Drive bays 1-10
supports 2.5-inch NVMe-only SSDs.
APIC-Server-M4 and L4: Drive bays 1 and 2
support NVMe PCIe SSDs.
1
KVM connector
(used with KVM cable that provides one DB-15
VGA, one DB-9 serial, and two USB 2.0 connectors)
4Power button/power status LED3
System LED cluster:
• Fan status LED
• System Status LED
• Power supply status LED
• Network link activity LED
• Temperature status LED
5
Cisco APIC M4 and L4 Server Rear Panel Features
The rear panel features are the same for all versions of the server.
