19
You can connect the Cisco AS5350 and Cisco AS5400 to a WAN in the following ways:
• Connect each T1/PRI port to an RJ-45 jack with a straight-through RJ-45 to RJ-45 cable.

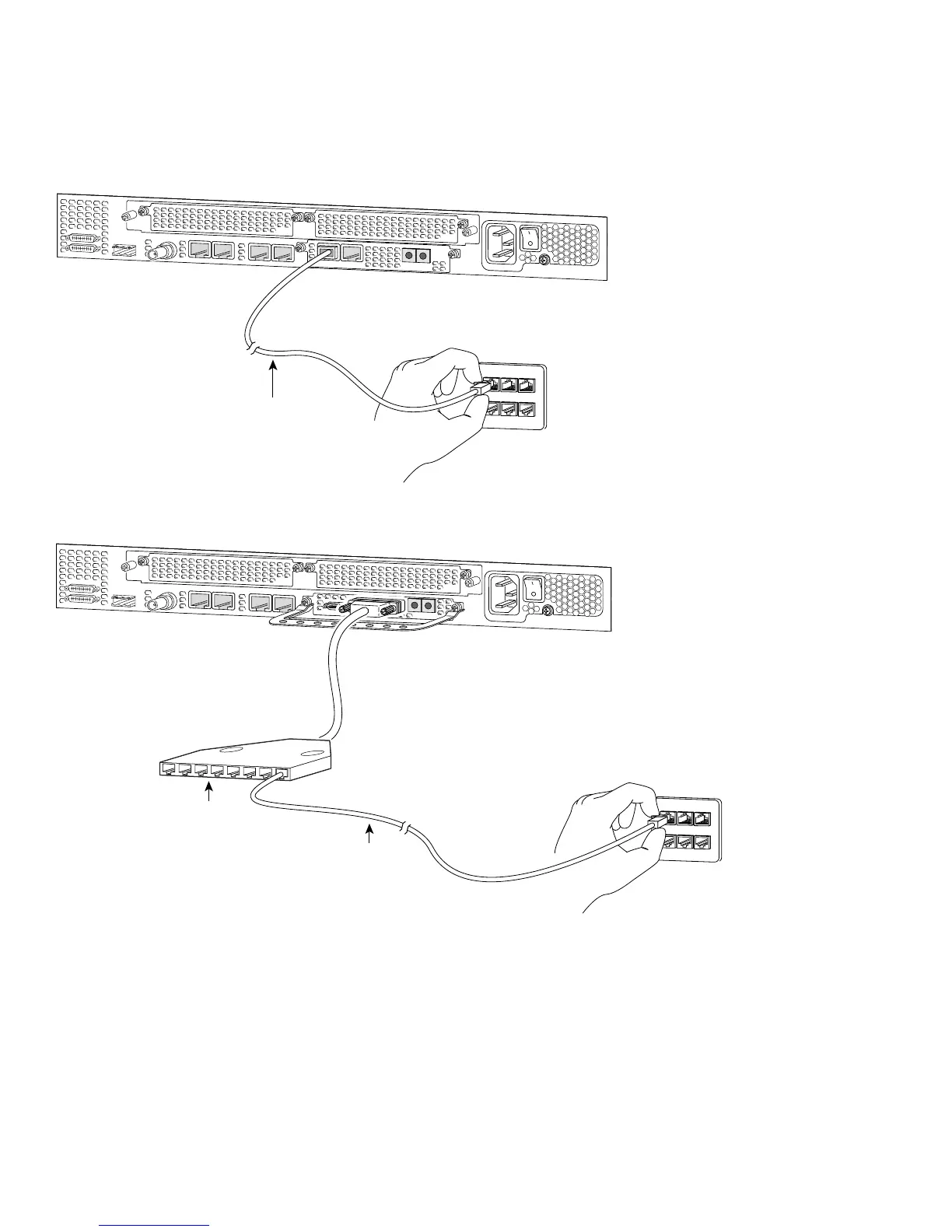

Connecting 2-Port or 4-Port DFC on Cisco AS5350 to RJ-45 Jack
Connecting 8-Port DFC on Cisco AS5350 to RJ-45 Jack
35672
RJ-45 jack
Straight-through
RJ-45-to-RJ-45 cable
56057
T1/E1 8 PRI
connector
RJ-45 jack
P
1
P
2
P
3
P
4
P
5
P
6
P
7
P
0
Straight-through
RJ-45-to-RJ-45 cable
