Cisco ASA 5506-X Hardware Installation Guide

Lock slot
The slot accepts a standard Kensington
T-bar locking mechanism for securing
the ASA.
8Reset button
A small recessed button that if pressed
for longer than three seconds resets the
ASA to its default “as-shipped” state
following the next reboot. Configuration
variables are reset to factory default.
However, the flash is not erased and no
files are removed.
You can use the service
sw-reset-button to disable the
reset button. The default is
enabled.
Note
Pressing the reset button on the
ASA 5506W-X does not affect
the AP configuration, but it
causes any unsaved AP
configuration to be lost,
because the system has
rebooted. After the system
reboots, if you want a default
AP configuration, use the
hw-module module wlan
recover configuration
command to recover the AP
configuration.
Note
7
The following figure shows the rear panel of the 5506H-X.

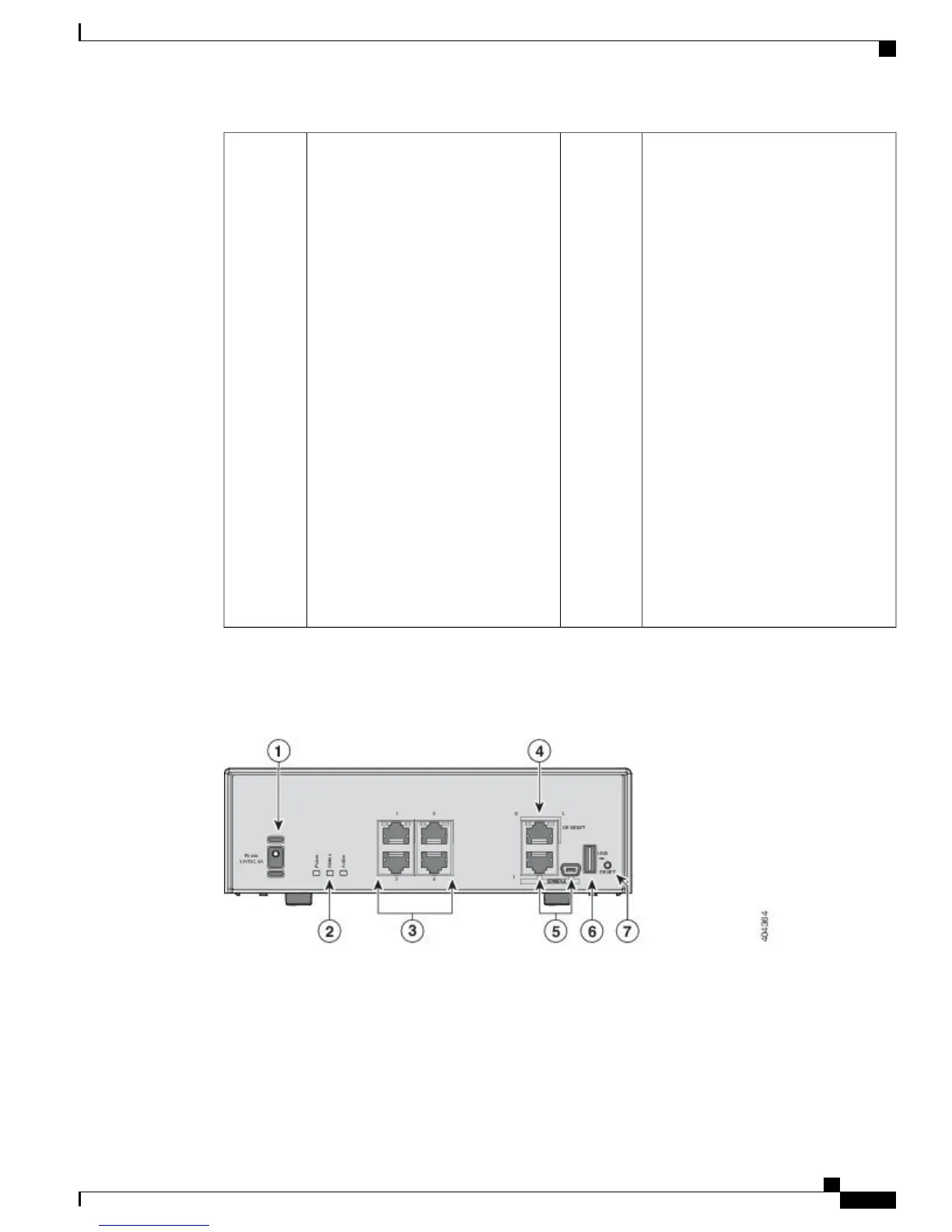

Figure 6: ASA 5506H-X Rear Panel
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only 7
Overview
Rear Panel

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
