Cisco ASA 5506-X Hardware Installation Guide

Install the Adjustable Power Supply Retainer
You can install an adjustable power supply retainer for the Delta and LiteOn power supplies in the rack-mount
tray. The bracket kit contains the bracket, 2 M3 screws, and washers. The following figure shows the adjustable
retainer.

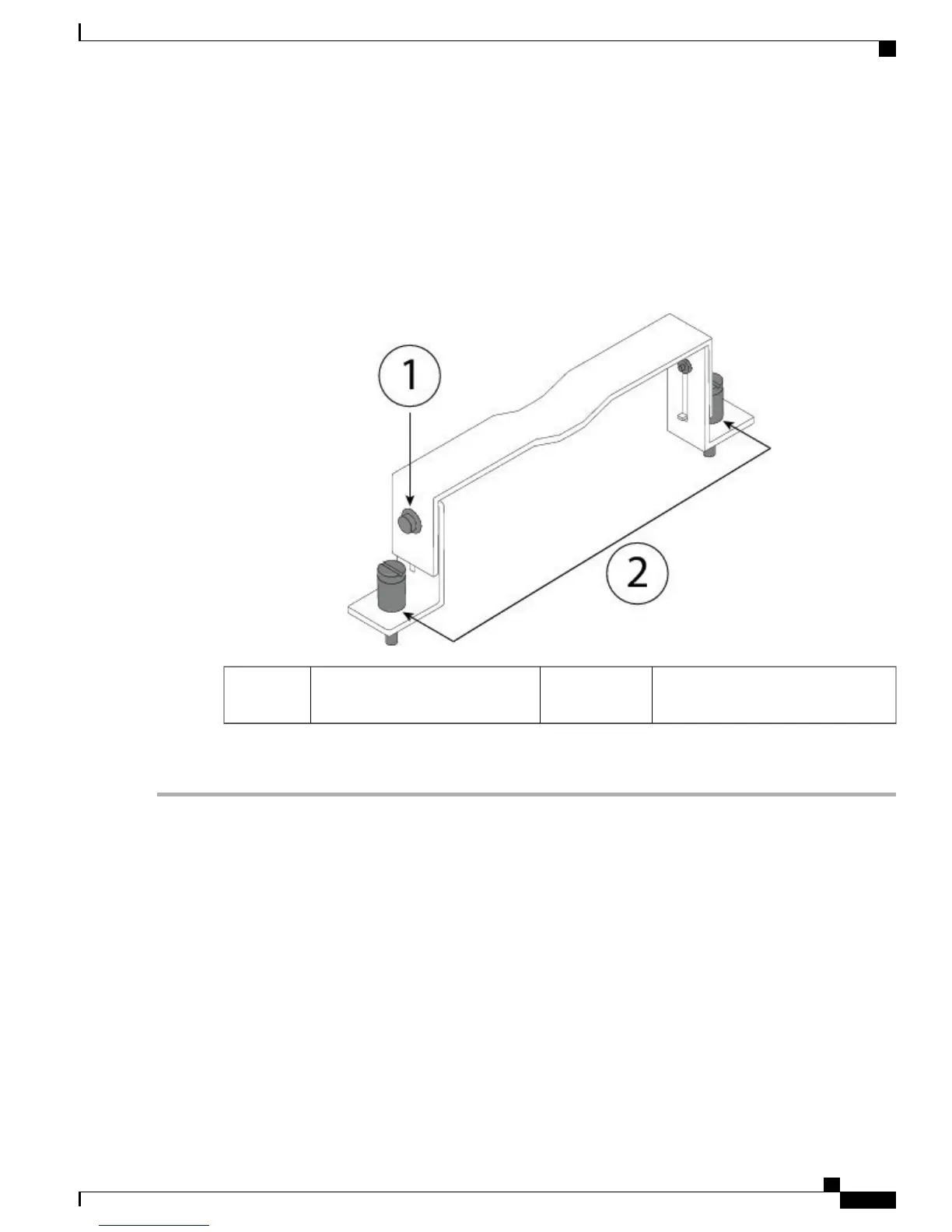

Figure 32: ASA Bracket Assembly
Two captive screws to attach to
rack-mount tray
2Two screws to loosen to change
from high to low bracket
1
Step 1
Slide the rack-mount shelf containing the ASA(s) out of the rack.
Step 2
At the back of the rack-mount shelf behind the power supplies, install the adjustable retainer.
a) Loosen the 2 top screws (item 1 in the figure above) slightly to adjust the bracket for each power supply.
The Delta power supply uses the bracket extended to its tallest configuration. This configuration has item 1 shifted
to the bottom of the slot on the bracket over the power supply. The LiteOn power supply uses the bracket extended
to its shortest configuration. This configuration has item 1 shifted to the top of the slot on the bracket over the power
supply.
b) Install the bracket over the power supply and screw the 2 bottom M3 captive screws (item 2 in the figure above) on
each side of the bottom of the bracket into the rack-mount tray.
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only 47
Maintenance and Upgrades
Install the Adjustable Power Supply Retainer

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
