Cisco ASA 5506-X Hardware Installation Guide

5506H-X, the LEDs are located on the bottom left of the chassis. The network port LEDs are at the top sides
of each network port. See Rear Panel, on page 6 for more information.

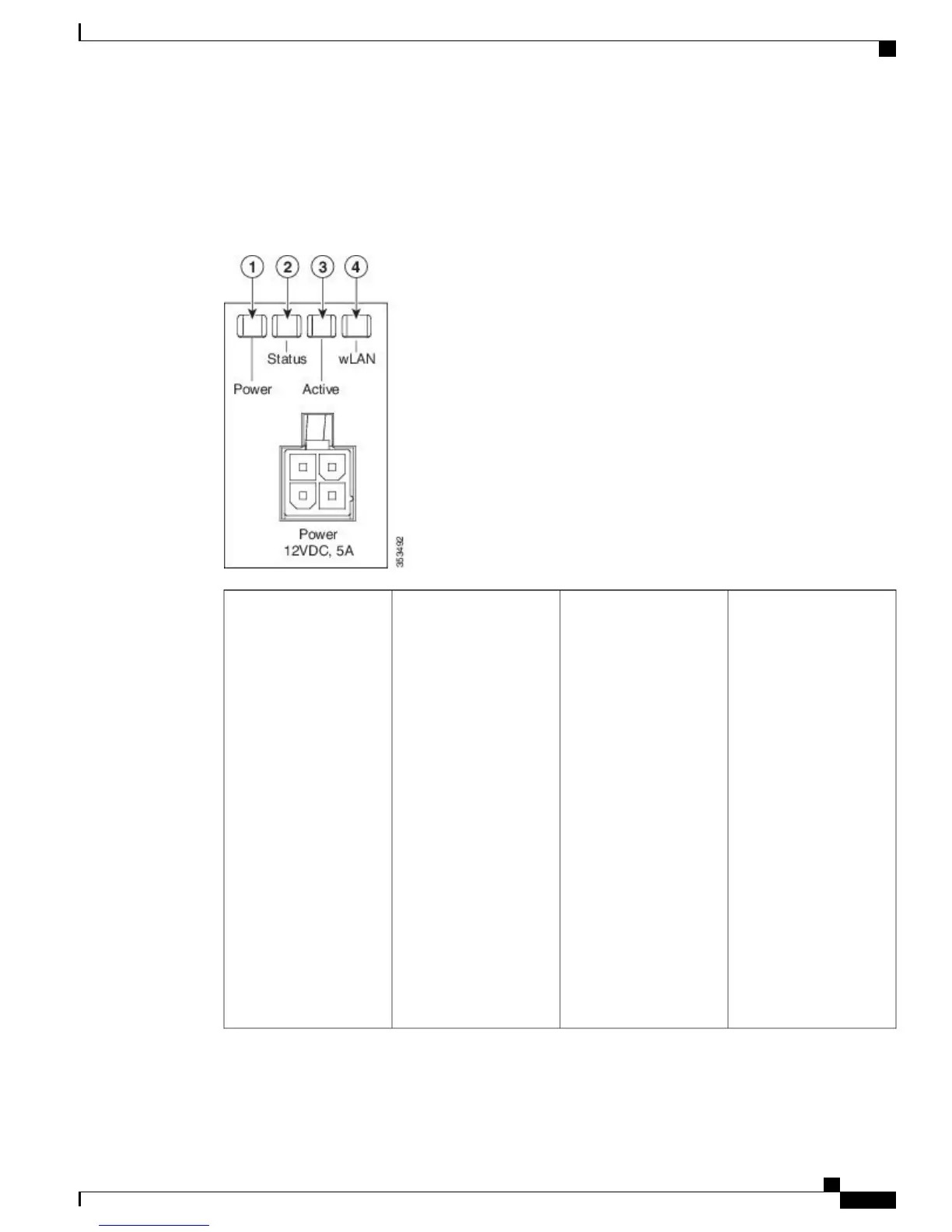

The following figure shows the LEDs on the top left edge.
Figure 7: LEDs
Status
System operating status:
• Green – Normal
system function.
• Amber – Critical
alarm indicating one
or more of the
following:
•
Major failure
of a hardware
or software
component.
•
Over-temperature
condition.
•
Power voltage
outside the
tolerance
range.
2Power
Power supply status:
• Unlit – Power
supply off.
• Solid green – Power
supply on.
See Power Supply
Modules, on page 13 for
additional power
information specific to
your specific ASA.
1
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only 9
Overview
LEDs

Cisco ASA 5506-X Specifications

General

Model	ASA 5506-X
Firewall Throughput	750 Mbps
Maximum Firewall Connections	50, 000
Maximum VPN Peers	50
Integrated Ports	8 x 1 GE
Stateful Inspection Throughput	750 Mbps
Weight	4.4 lb (2 kg)
Firewall Throughput (Multiprotocol)	750 Mbps
Firewall Throughput (Application Visibility and Control AVC)	250 Mbps
Concurrent Sessions	50, 000
New Connections per Second	10, 000
IPsec VPN Throughput	100 Mbps
Interfaces	8 x 1 GE
Memory	4 GB
Flash Memory	8 GB
Form Factor	Desktop
VPN Throughput	100 Mbps
Maximum Concurrent Sessions	50, 000
New Sessions per Second	10, 000
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-13 to 158°F (-25 to 70°C)
Power Supply	External
Humidity	10% to 90% non-condensing
