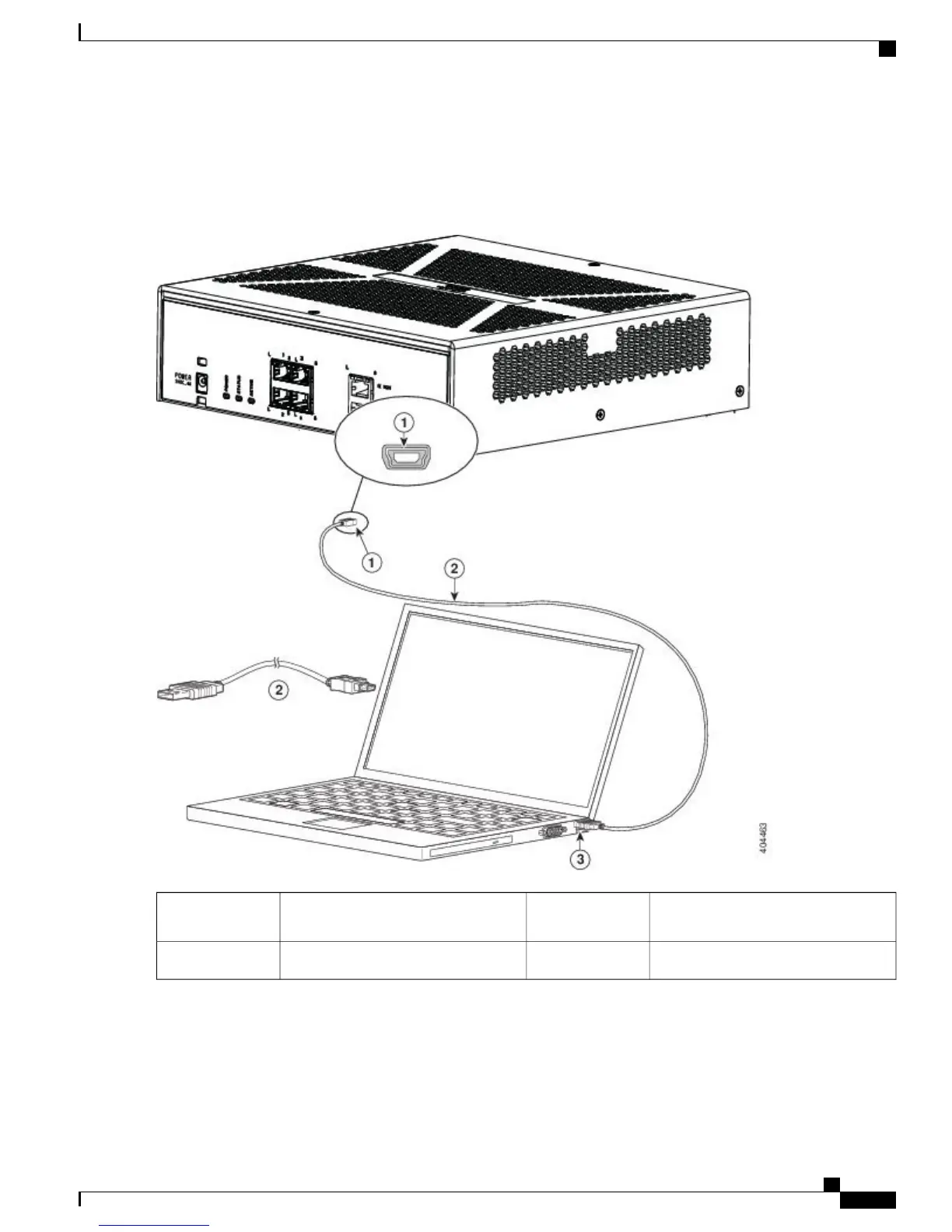

Figure 30: ASA 5506H-X Console Port Connection
Mini USB Type B to USB Type A
console cable
2Mini USB Type B console port1
USB Type A3
Step 4
Connect the end of the cable with the DB-9 connector (or USB Type A) to the terminal or PC. If your terminal or PC
has a console port that does not accommodate a DB-9 connector, you must provide an appropriate adapter for that port.
Cisco ASA 5506-X, ASA 5506W-X, and ASA 5506H-X Hardware Installation Guide
Online Only 41
Mount and Connect
Connect to the Console Port with Microsoft Windows
