Step 4 Position the device vertically on the wall.
Ensure that the power supplies are positioned as shown in the following figure.
Note

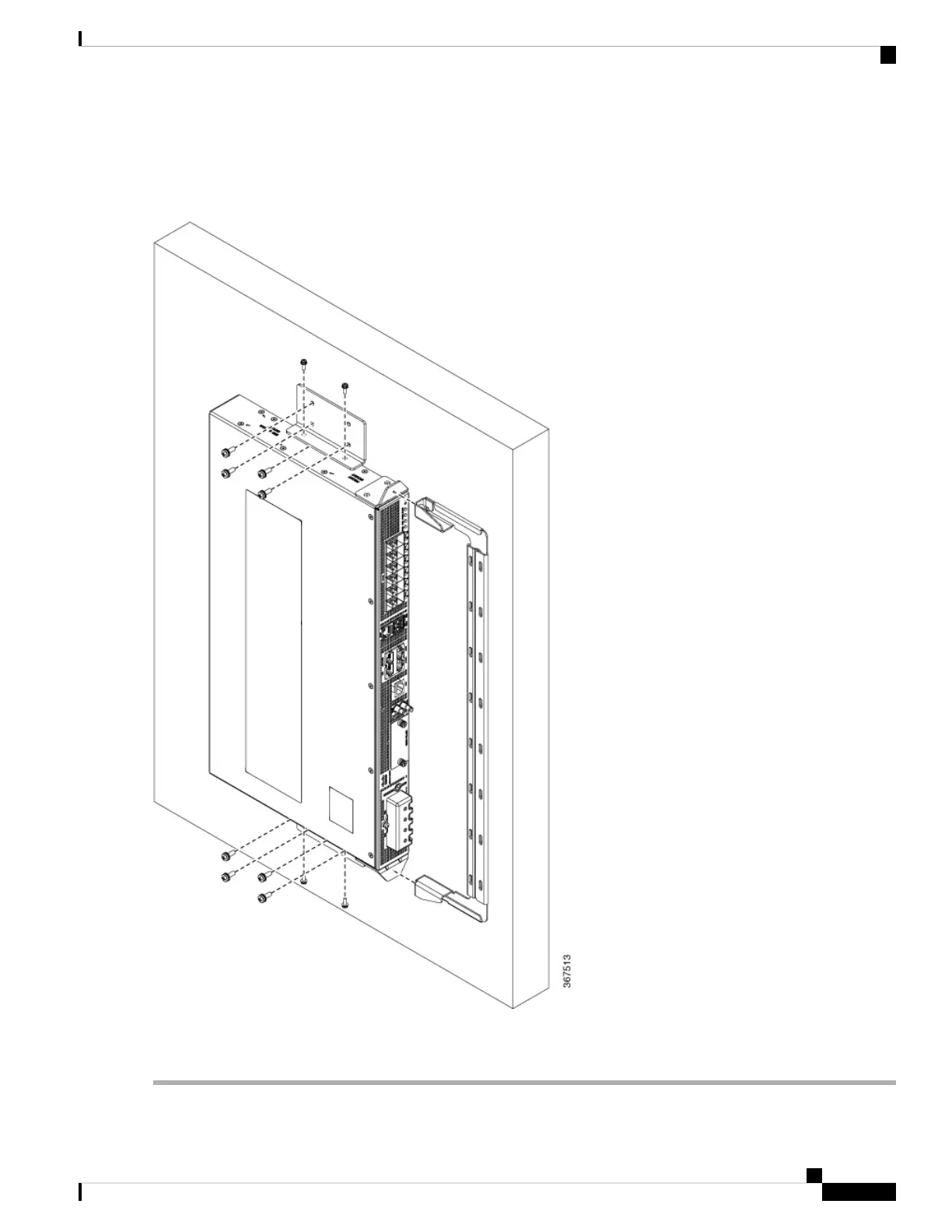

Figure 22: Wall Mount the Device
Before mounting the device, ensure that all unused holes at the sides of the device are protected with screws.
Caution
Cisco ASR-920-12SZ-A and Cisco ASR-920-12SZ-D Aggregation Services Router Hardware Installation Guide
41
Install the Router
Wall Mount the Device
