Attach Cables to the DC Power Supply
When installing DC power supply, use 14 AWG, 90°C wires. Always ensure that the building’s installation
for short-circuit (overcurrent) protection does not exceed 15A.
Note
To attach the DC power supplies:
Procedure
Step 1 Open the DC power supply guard.
Step 2 Attach the DC supply wires in the designated screws. See the figure below.

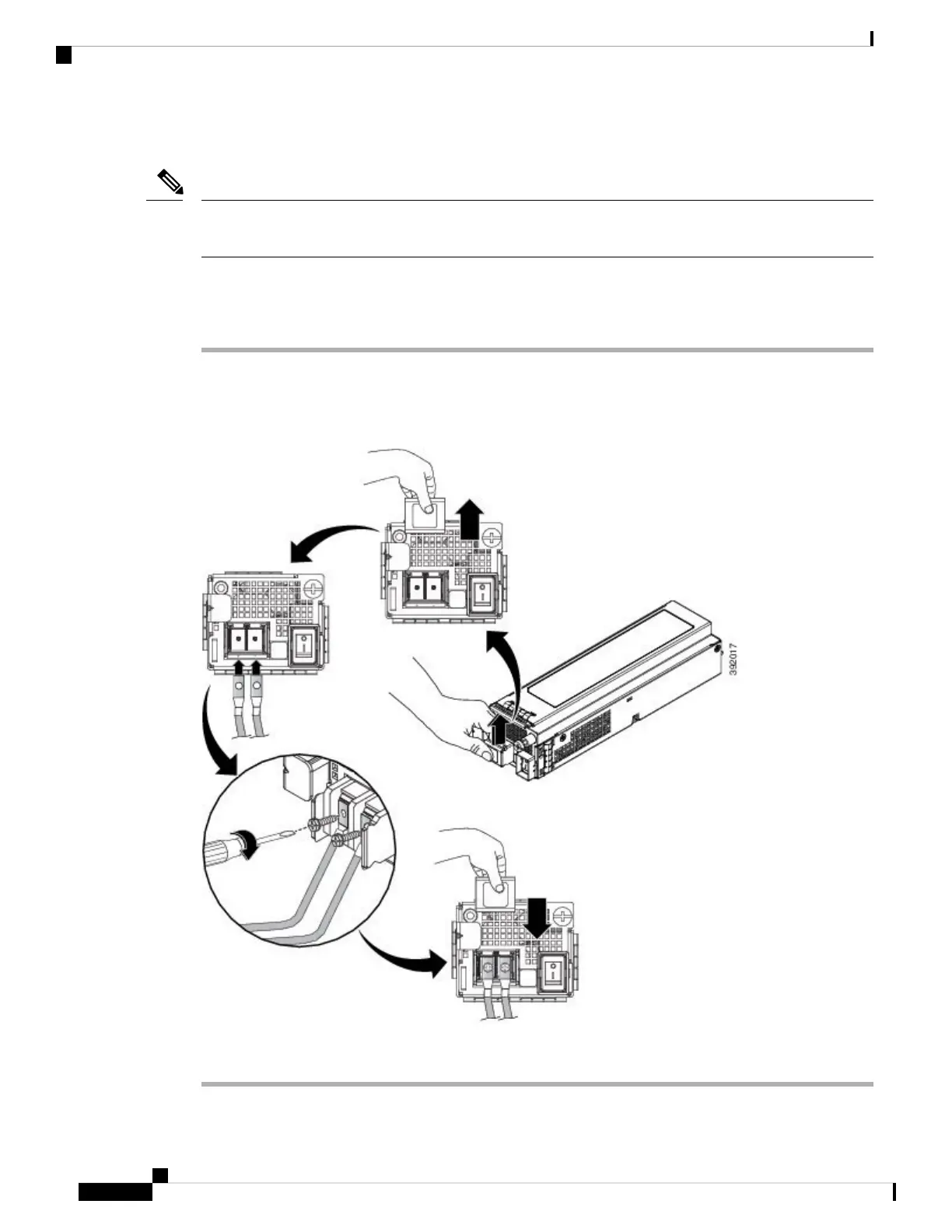

Figure 21: Connecting the DC Power Supply Wires
Step 3 Close the DC power supply guard.
Installing the Router
