Installing the Chassis Ground Connection
Before you connect the power or turn on the power to the Cisco ASR-920-24SZ-IM Router, you must provide
an adequate chassis ground (earth) connection to your router.
This section describes how to ground the Cisco ASR-920-24SZ-IM Router chassis. The grounding lug location
is on the back panel of the router.
Ensure that the grounding lug wire does not cover the fan opening.
Tip

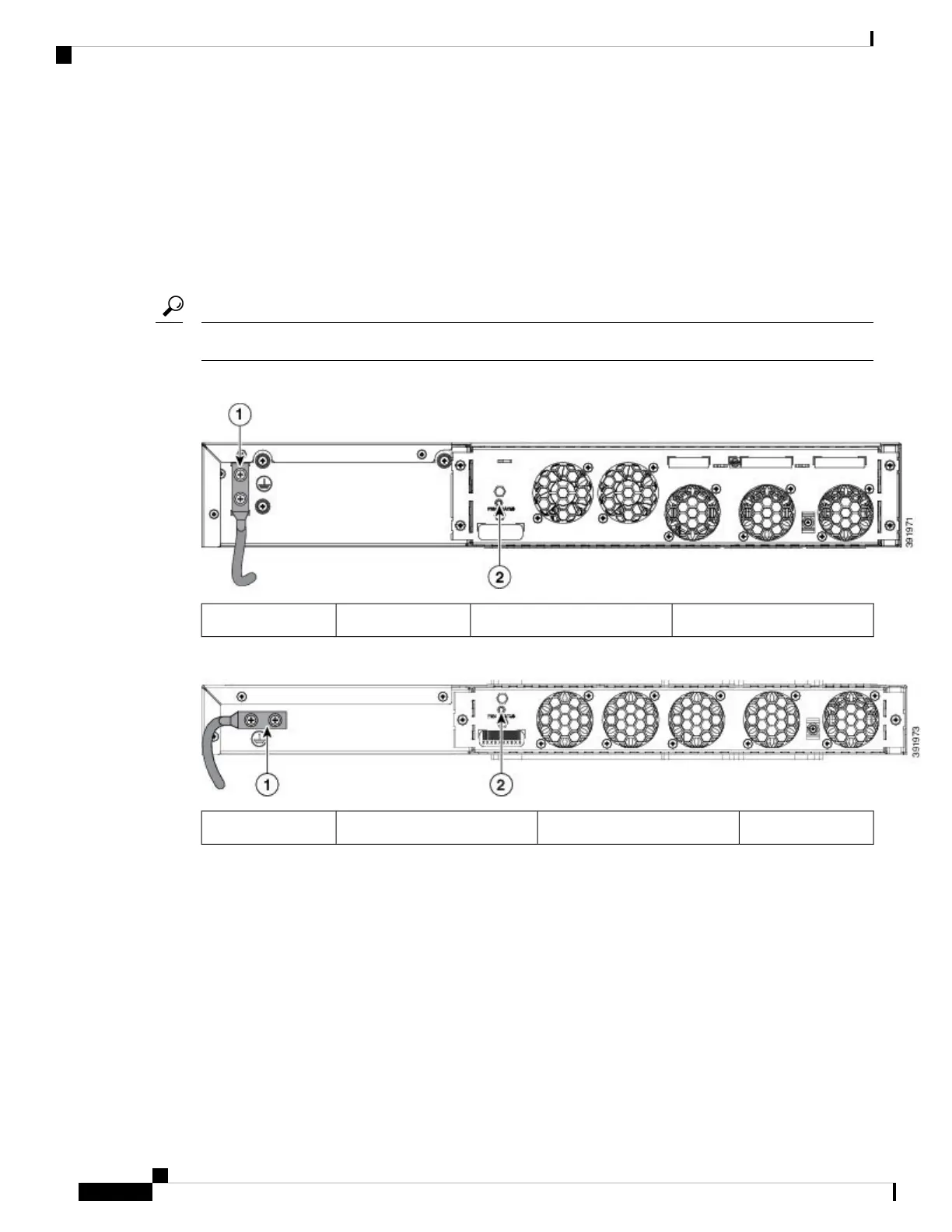

Figure 33: Attaching a Grounding Lug to the Rear of the Cisco ASR-920-24SZ-IM Router
Fan status LED2Grounding lugs1
Figure 34: Attaching a Grounding Lug to the Rear of the Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router
Fan status LED2Grounding lugs1
To ensure that the chassis ground connection that you provide is adequate, you need the following parts and
tools:
• Ratcheting torque screwdriver with Phillips head that exerts up to 15 in.-lb (1.69 N-m) of torque for
attaching the ground wire to the router
• Crimping tool as specified by the ground lug manufacturer
• 6-AWG or larger copper wire for the ground wire
• Wire-stripping tools appropriate to the wire you are using
