Step 2 Align the mounting holes in the bracket (and optional cable guide) with the mounting holes in the equipment
rack.
The following figures show how to install the Cisco ASR-920-24SZ-IM Router in a 19-inch EIA rack.

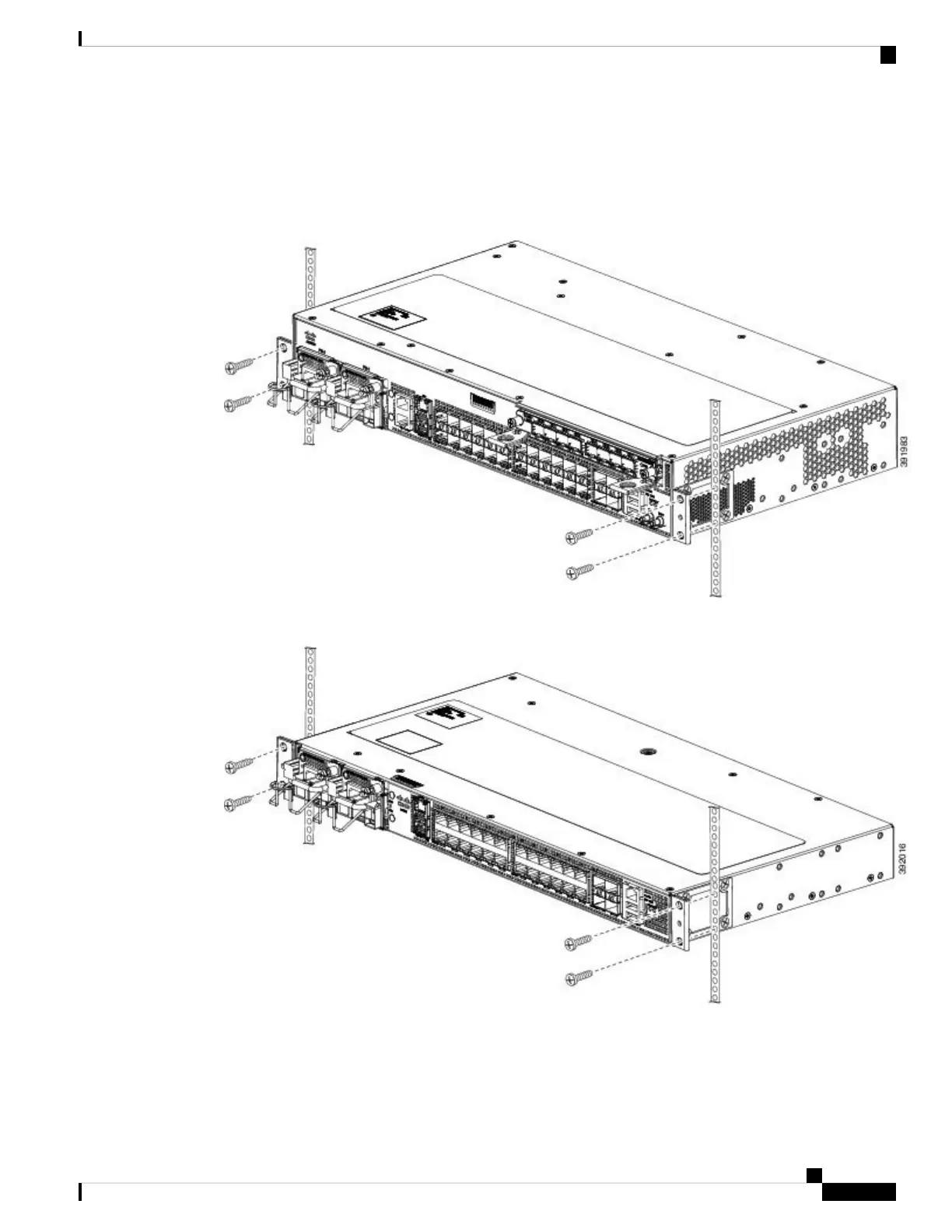

Figure 7: Installing the Cisco ASR-920-24SZ-IM Router in a 19-inch EIA Rack
Figure 8: Installing the Cisco ASR-920-24SZ-M, ASR-920-24TZ-M Router in a 19-inch EIA Rac
Step 3 Install the four M6x12mm zinc-plated steel screws through the holes in the bracket and into the threaded holes
in the equipment rack posts.
Installing the Router
9
Installing the Router
Installing the Router Chassis in the Rack
