Cisco ASR 920 series Hardware Installation Guide

1-4
Cisco ASR 920 Series Aggregation Services Router Hardware Installation Guide
OL-32751-01
Chapter 1 Cisco ASR 920 Series Aggregation Services Router Overview
Cisco ASR 920 Router Features

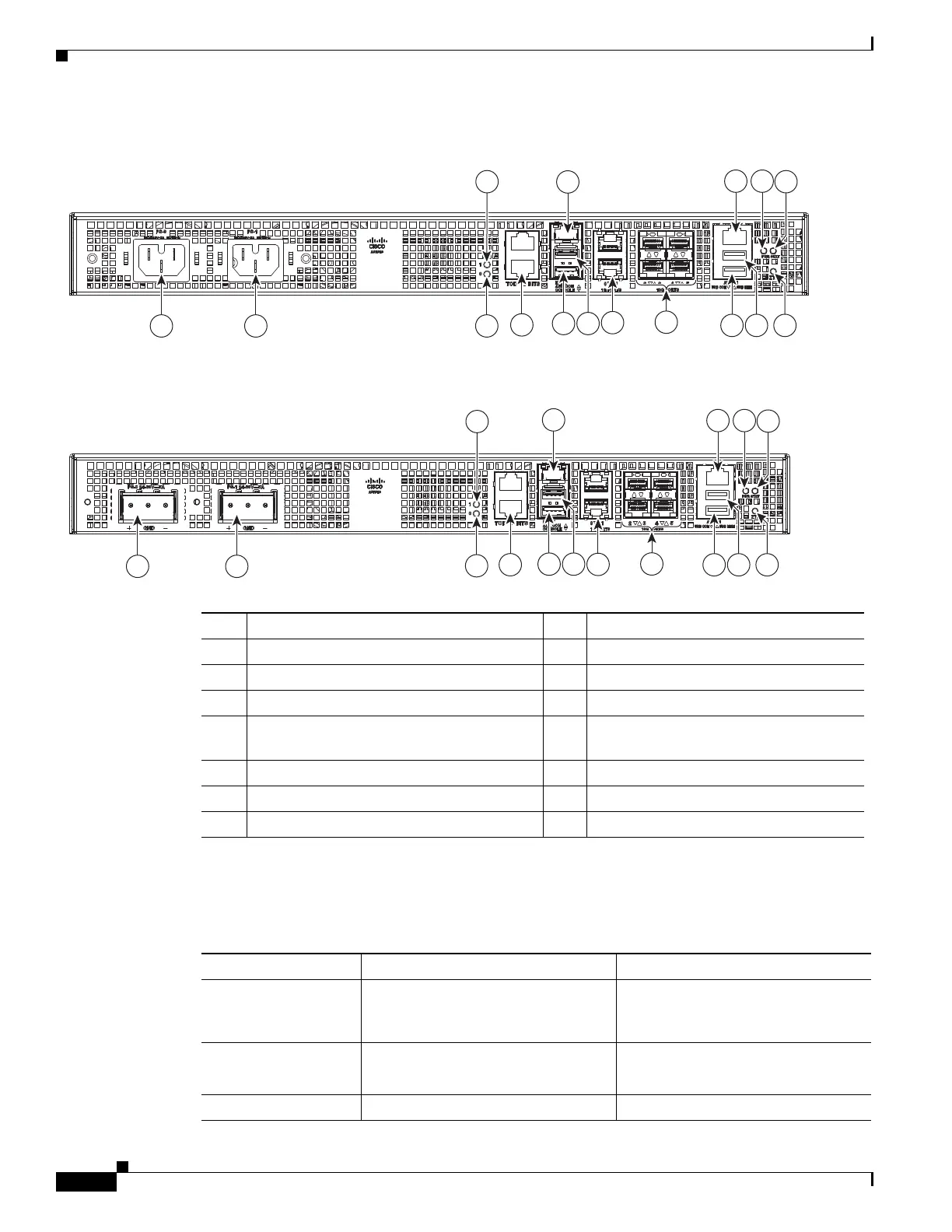

Figure 1-3 Front Panel of Cisco ASR-920-4SZ-A Router
Figure 1-4 Front Panel of Cisco ASR-920-4SZ-D Router
Table 1-1 describes the other features of Cisco ASR-920-12CZ (AC and DC) and Cisco ASR-920-4SZ
(AC and DC) Routers.
391649
11 2
5
3
9
10
6
4
12 14
11
13 15
16
7
8
391650
11 2
5
3
7
6
4
8
9
10
12 14
11
13 15
16
1 Power Supply 0 (AC or DC) 9 2 1GE Copper ports
2 Power Supply 1 (AC or DC) 10 Four 1G/10G Dual Rate Ports
3 Power Supply 0 LED (AC or DC) 11 USB Console port
4 Power Supply 1 LED (AC or DC) 12 Alarm port
5 RJ-48 slots for BITS (upper slot) and ToD
(lower slot)
13 USB Memory port
6 Management port 14 Board power LED
7 Console port (TIA/EIA-232F) 15 Zero Touch Provisioning button
8 Auxiliary Console port 16 System Status LED
Table 1-1 Cisco ASR-920-12CZ and Cisco ASR-920-4SZ Router Specifications
Specification ASR-920-12CZ-A/ASR-920-12CZ-D ASR-920-4SZ-A/ASR-920-4SZ-D
Dimension
Width x Depth x
Height
17.5 x 9.25 x 1.75 inches 15.5 x 9.25 x 1.75 inches
Weight ASR-920-12CZ-A: 3.80 kg
ASR-920-12CZ-D: 3.54 kg
ASR-920-4SZ-A: 3.50 kg
ASR-920-4SZ-D: 3.22 kg
Rack Unit One RU One RU
