Step 2
If the SFP module that you are using has the markings, use them to identify the top side of the module.
Step 3
Align the SFP module in front of the slot opening.
Step 4
Insert the SFP module into the slot until you feel the connector on the module snap into place in the rear of the slot.

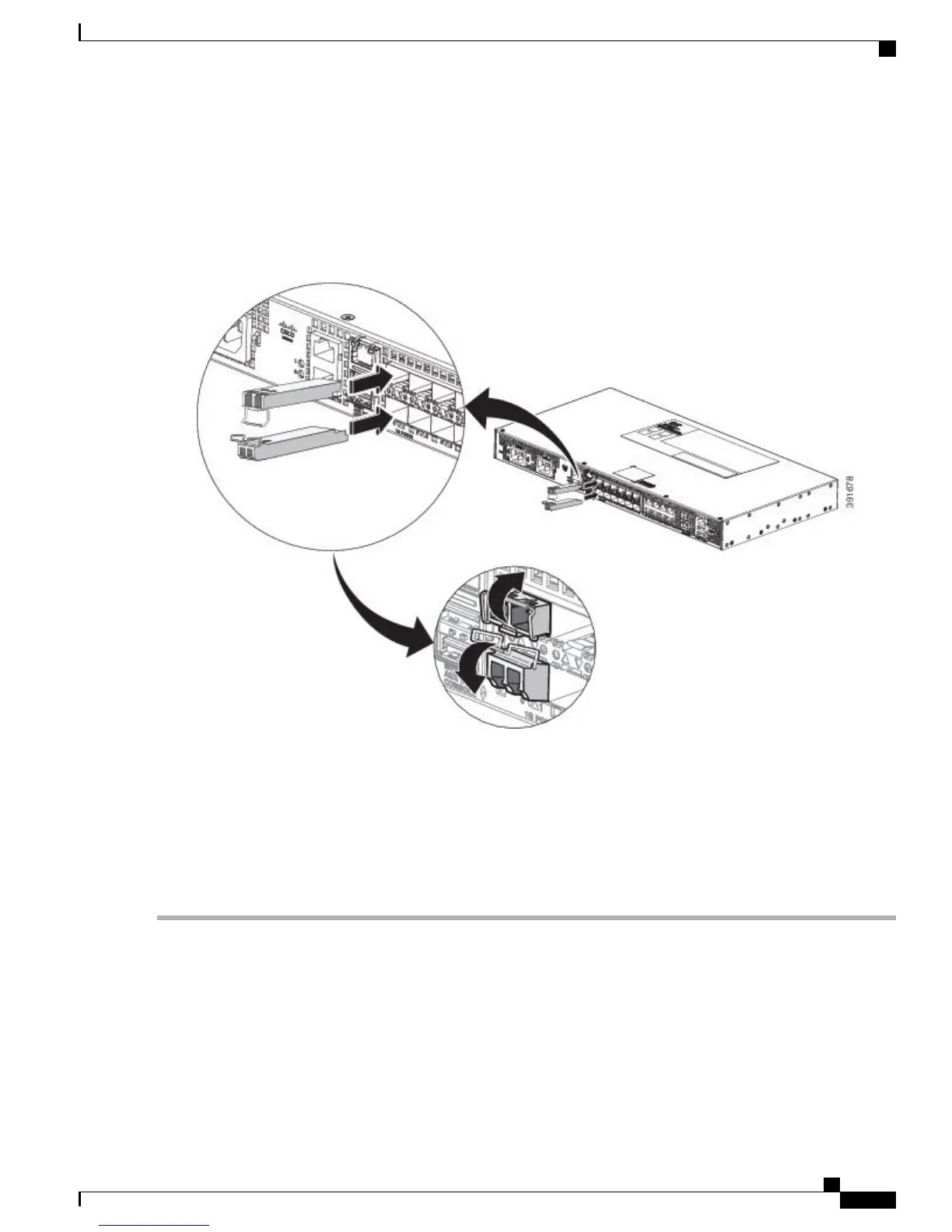

Figure 18: Installing an SFP Module into an SFP Module Slot
Do not remove the dust plugs from the fiber-optic SFP module port or the rubber caps from the fiber-optic
cable until you are ready to connect the cable. The plugs and caps protect the SFP module ports and cables
from contamination and ambient light. Store the dust plugs for later use.
Caution
Step 5
Insert the cable connector into the SFP module:
For fiber-optic SFP modules, insert the LC cable into the SFP module.
For copper 1000BASE-T SFP modules, insert the RJ-45 cable connector into the SFP module.
Remove SFP Modules
To remove an SFP module from a module receptacle, follow these steps:
Cisco ASR 920 Series Aggregation Services Router Hardware Installation Guide
21
Installing the Cisco ASR 920 Series Router
Remove SFP Modules
