Cisco ASR 920 series User Manual

The DC connector or terminal block has an inbuilt screw and cage nut to which a torque of 1.3 to 1.8 N-m
can be applied.
Note

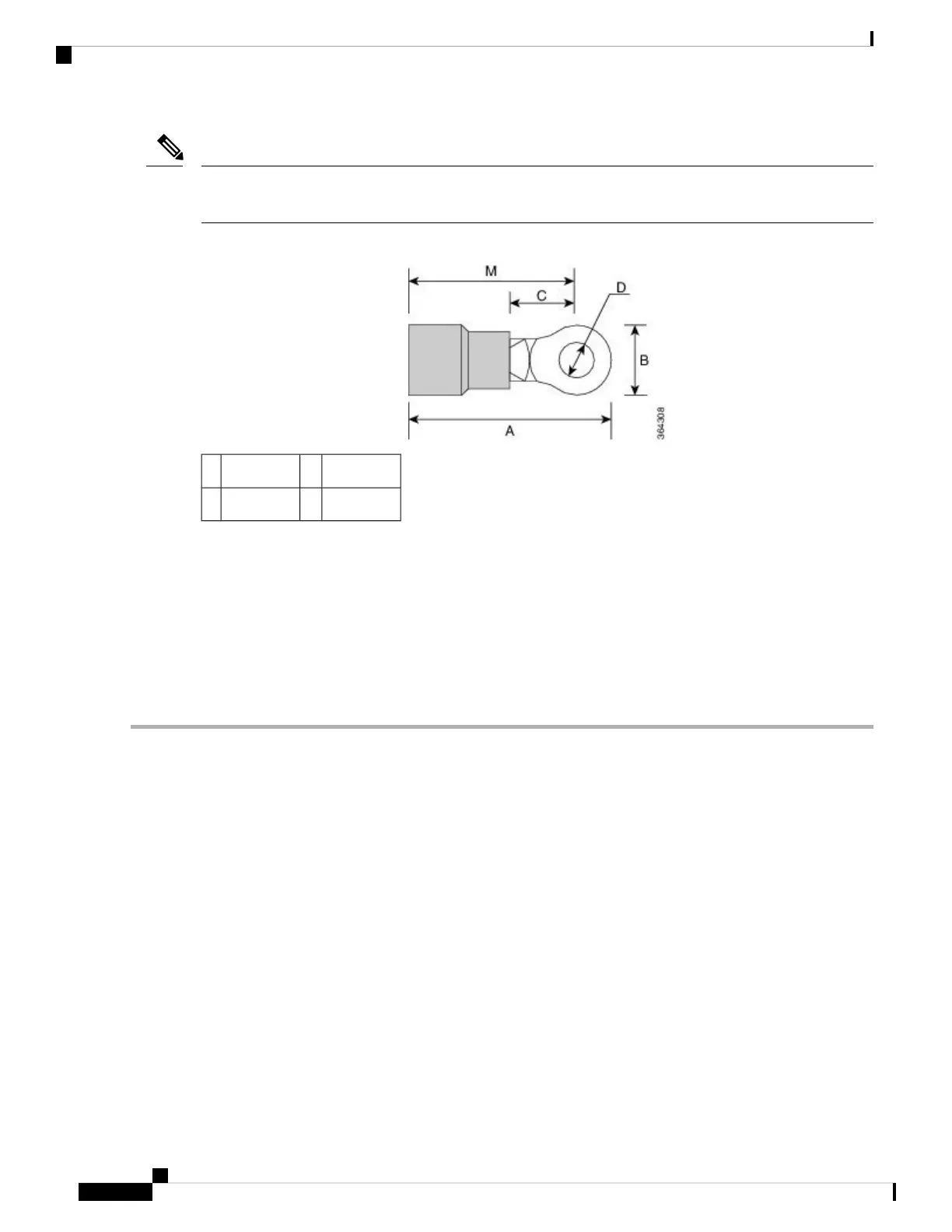

Figure 14: DC Connector With Inbuilt Screw
0.27 inchesC0.97 inchesA
0.81 inchesM0.31 inchesB
To attach the DC power supplies:
SUMMARY STEPS
1. Open the DC power supply guard.
2. Attach the DC supply wires in the designated screws. See the figure below.
3. Close the DC power supply guard.
DETAILED STEPS
Step 1 Open the DC power supply guard.
Step 2 Attach the DC supply wires in the designated screws. See the figure below.
Installing the Cisco ASR 920 Series Router
14
Installing the Cisco ASR 920 Series Router
Install the DC Power Supply

Cisco ASR 920 series Specifications

General

Form Factor	1RU
Operating System	Cisco IOS XE
Model	ASR 920 series
Memory	4 GB DRAM
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Relative Humidity	5% to 95% non-condensing
MTBF	Varies by model
Management	CLI, SNMP
