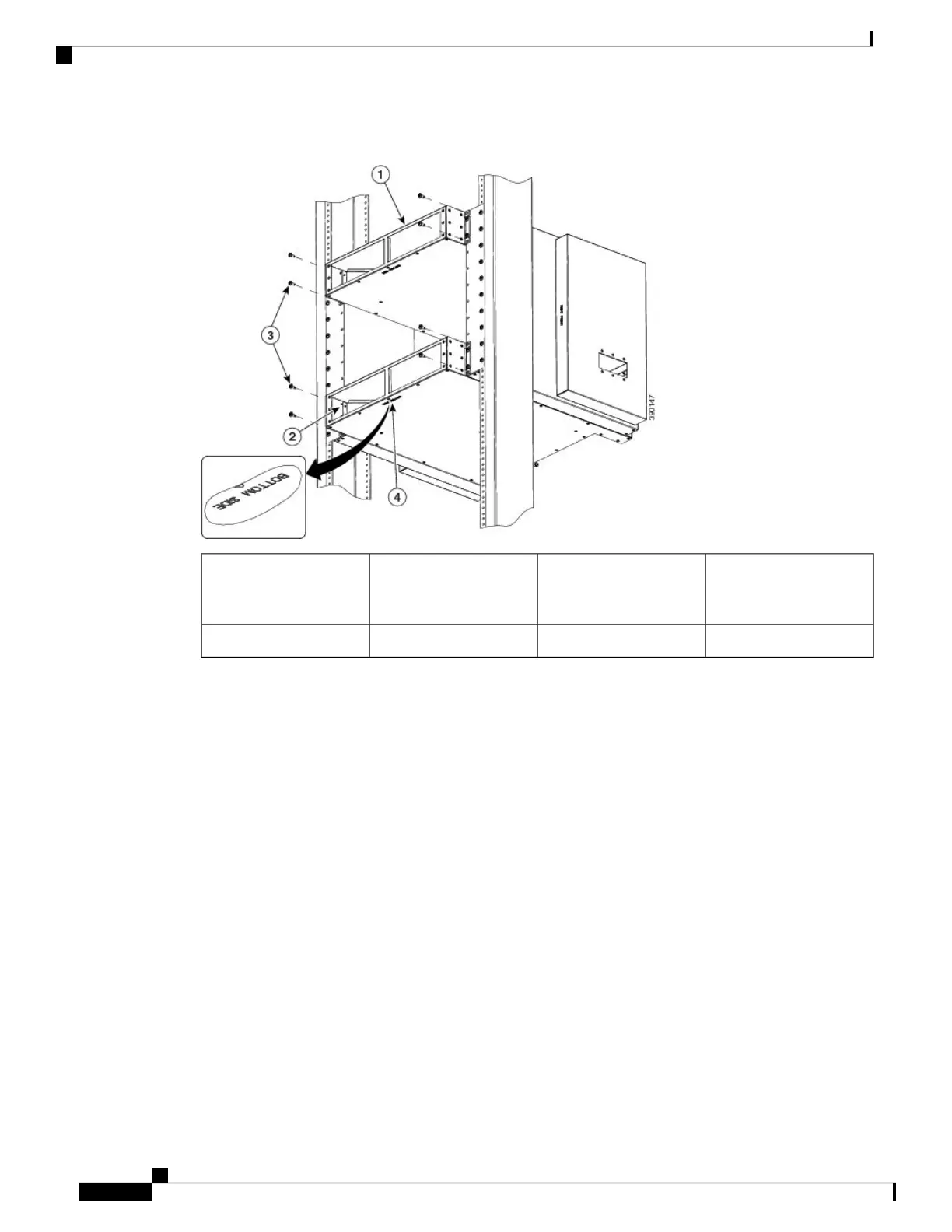

Figure 155: Attaching the Air Deflectors on the Cisco ASR 9904 Router Chassis —Top View
12-24 screws for attaching
the air deflectors (two
screws per side)
3Top air deflector1
Bottom side stamp4Bottom air deflector2
Step 5 Secure the side air baffles to the air deflectors using the supplied 8-32 screws (Figure 156: Securing the Cisco
ASR 9904 Router Chassis Side Baffles to the Air Deflectors (Rear View), on page 149). Do not tighten the
screws.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
148
Unpacking and Installing the Chassis
Installing Optional Air Baffles on the Cisco ASR 9904 Router

Cisco ASR 9901 Specifications

General

Chassis Height	1 RU
Rack Mounting	Yes
Redundancy	Yes
Operating System	Cisco IOS XR
Switching Capacity	Up to 1.2 Tbps
Memory	16 GB
Power Supply	Dual redundant AC or DC
Interfaces	10GE, 100GE
Operating Temperature	0 to 40°C (32 to 104°F)
Input Voltage	100-240V AC
Power Consumption	Varies based on configuration
Storage	64 GB SSD
Humidity	5% to 95% (non-condensing)
