Cisco ASR 9901 Installation Guide

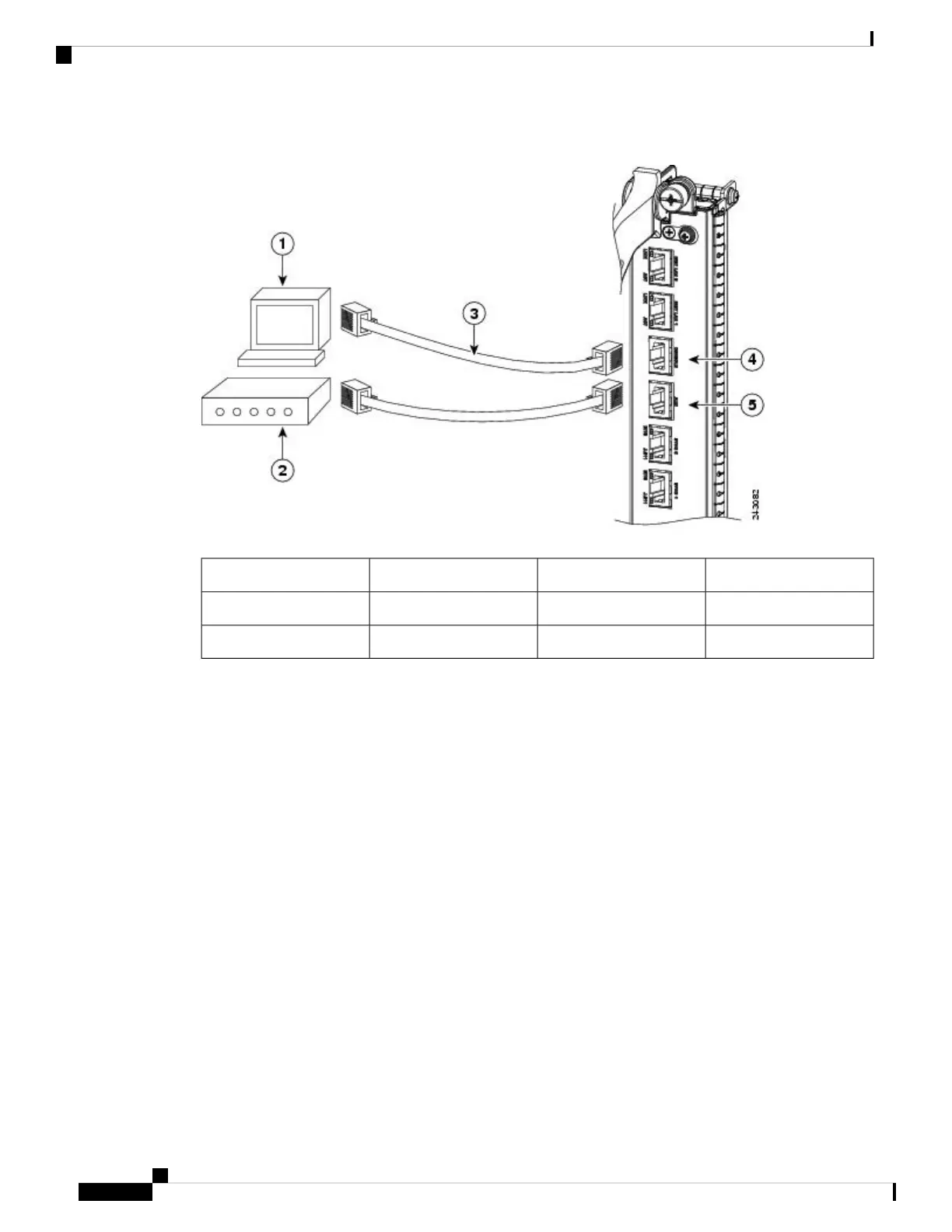

Figure 189: RSP Console and Auxiliary Port Connections
Console port4Console terminal1
Auxiliary (AUX) port5Modem2
RJ-45 Ethernet cables3
The figure below shows an example of an RP with data terminal and modem connections called out.
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
186
Installing Cards and Modules in the Chassis
Connecting Cables to the RSP or RP

Cisco ASR 9901 Specifications

General

Chassis Height	1 RU
Rack Mounting	Yes
Redundancy	Yes
Operating System	Cisco IOS XR
Switching Capacity	Up to 1.2 Tbps
Memory	16 GB
Power Supply	Dual redundant AC or DC
Interfaces	10GE, 100GE
Operating Temperature	0 to 40°C (32 to 104°F)
Input Voltage	100-240V AC
Power Consumption	Varies based on configuration
Storage	64 GB SSD
Humidity	5% to 95% (non-condensing)
