4
ProductId: ATA186I1
Features: 0x00000000
HardwareVersion: 0x0006 0x0000
Cisco ATA with V2.15 or 2.16 image(H323)
1. Cisco ATA 186 Configuration
ata000d6508d994
Version: v2.16 ata18x (Build 030401a)
MAC: 0.13.101.8.217.148
SerialNumber: INM07276617
ProductId: ATA186I1
Features: 0x00000000
HardwareVersion: 0x0006 0x0000

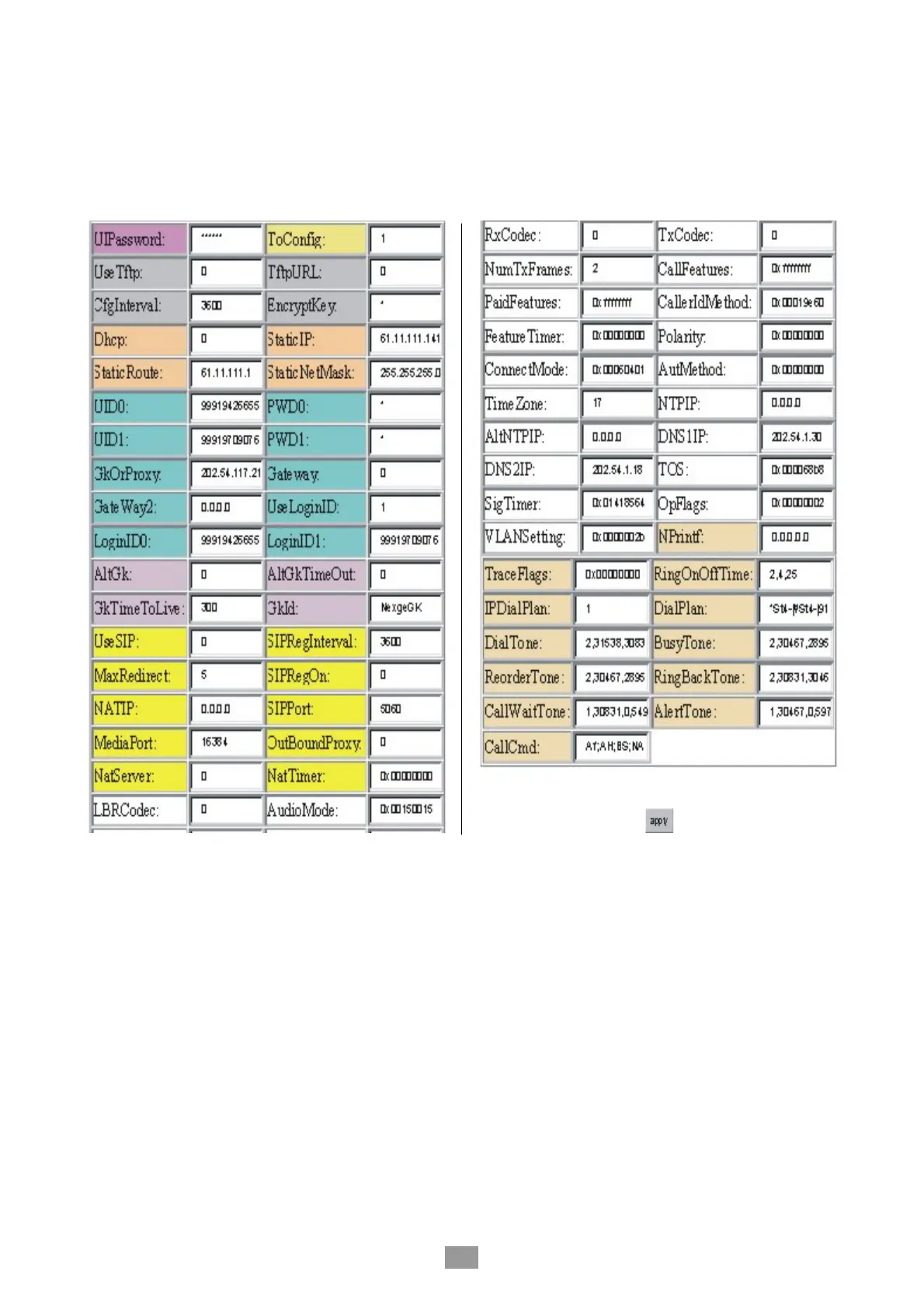

Configuring Account,Network & Codec Settings for SIP :
Once you get the ATA configuration page on the browser, please enter/check the following values:
1) UIPassword is to be set to access password which will be known only to the user – recommended to have for security reasons
so that others can’t make changes to the configuration.
2) UseTftp is to be set to 0.
3) Set Dhcp to 0 (Disabled) if you want to assign static IP address to ATA. If you want the ATA to get the IP address dynamically
assigned then set this to 1 (enabled). In most common scenario it is 0.
4) StaticIP is to be set to the IP allotted by the ATA
5) StaticRoute to be set to the default gateway entered earlier into the ATA.
6) StaticNetMask to be set to the mask entered earlier into the ATA.
( N.B. : you have already configured 3,4,5 parameters through IVR else you won’t be able to view the ATA configuration on
your browser.)
