Rear-mounting position4Number-8 Phillips flat-head screws2
Mounting a 24-Port or 48-Port Switch in a Rack
Procedure
Step 1 Use the four supplied Phillips machine screws to attach the brackets to the rack.
Step 2 Use the black Phillips machine screw to attach the cable guide to the left or right bracket.

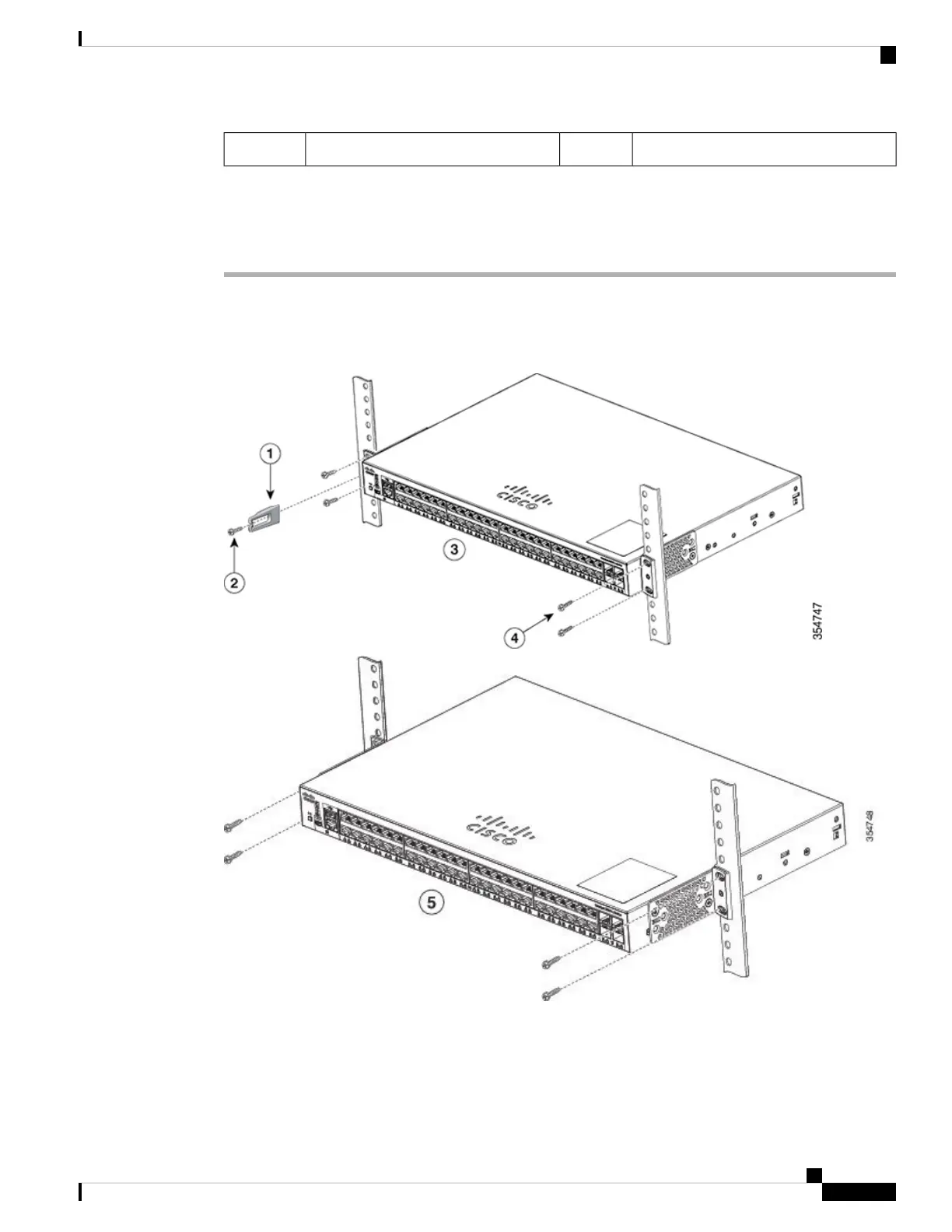

Figure 11: Mounting the Switch in a Rack
Cisco Catalyst 1000 Series 24-Port and 48-Port Switch Hardware Installation Guide
21
Switch Installation
Mounting a 24-Port or 48-Port Switch in a Rack
