Step 2 Attach the four rubber feet to the four circular etches on the bottom of the chassis.
Step 3 Place the switch on the table or shelf near an AC power source.
Step 4 When you complete the switch installation, see After Switch Installation for information on switch configuration.
After Switch Installation
• Configure the switch using the Configuration Setup wizard to enter the initial switch configuration.
• Install the power cord retainer (optional).
• Connect to the front-panel ports.
Installing the Power Cord Retainer (Optional)
The power cord retainer is optional (part number [PWR-CLP=]). You can order it when you order your switch.
Procedure
Step 1 Choose the sleeve size of the power cord retainer based on the thickness of the cord. The smaller sleeve can
be snapped off and used for thin cords.
Step 2 Slide the retainer around the AC power cord, and pass it around the loop on the switch.

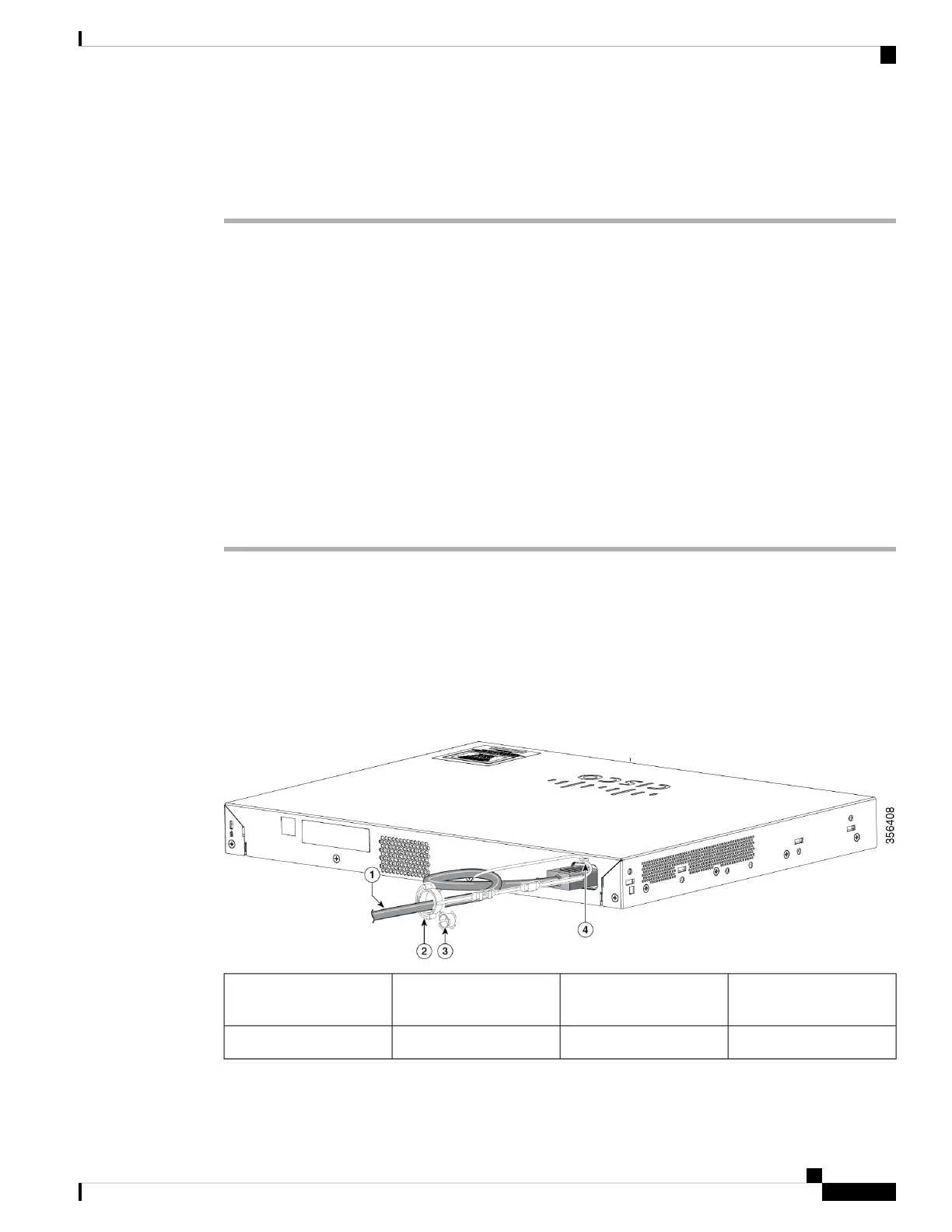

Figure 14: Inserting the Retainer Through the Lanced Loop
Sleeve for thinner power
cords
3AC power cord1
Loop4Power cord retainer2
Step 3 Slide the retainer through the first latch.
Cisco Catalyst 1000 Series 24-Port and 48-Port Switch Hardware Installation Guide
25
Switch Installation
After Switch Installation
