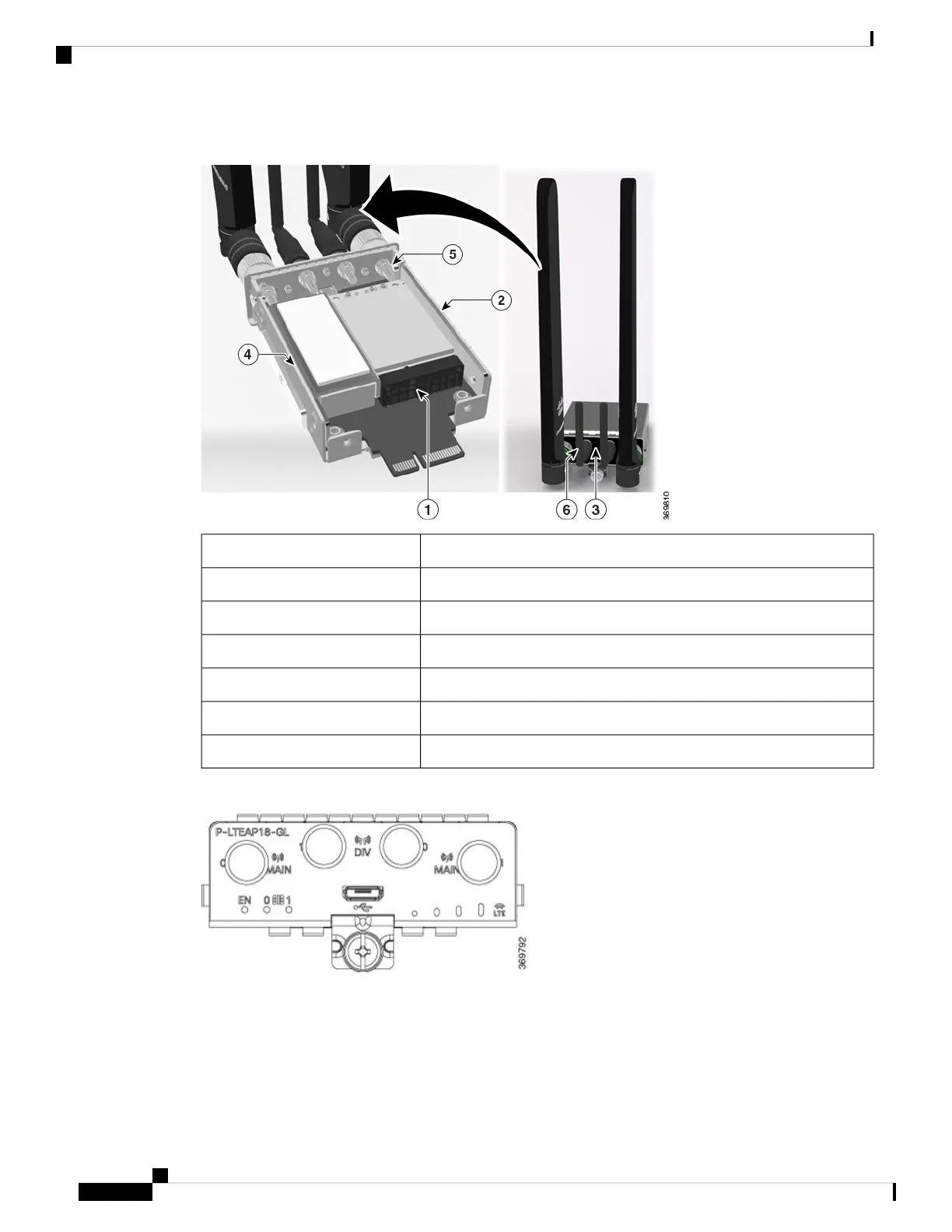

Figure 5: LTE Pluggable - C1118-8PLTEP
DescriptionItem
Mini-PCIE1
Common heat spreader + thermal interface2
I/O3
Enclosure base to support 4-antenna4
4-1 SMA-MHF4 cable assembly5
SMA Diversity Antenna for usability and Micro-USB port access6
Figure 6: LTE Pluggable - C1118-8PLTEP Back Panel
Install and Upgrade Internal Modules and Field Replaceable Units
8
Install and Upgrade Internal Modules and Field Replaceable Units
Install an LTE Pluggable Module on a C1101-4P
