Chapter 1 Overview
Key Features
Figure 1-3 4-Port100BaseFX Modules
For connector and schematic information, see “100BaseFX and 1000BaseX
Modules Cabling” in Appendix B, “Connectors and Cables.”
1000BaseX Module
The 1000BaseX module, shown in Figure 1-4, provides one switched 1000-Mbps,
full-duplex port that uses an SC fiber-optic connector. The port supports the IEEE
802.3z 1000BaseX standard. For connector and schematic information, see
“100BaseFX and 1000BaseX Modules Cabling” in Appendix B, “Connectors and
Cables.”

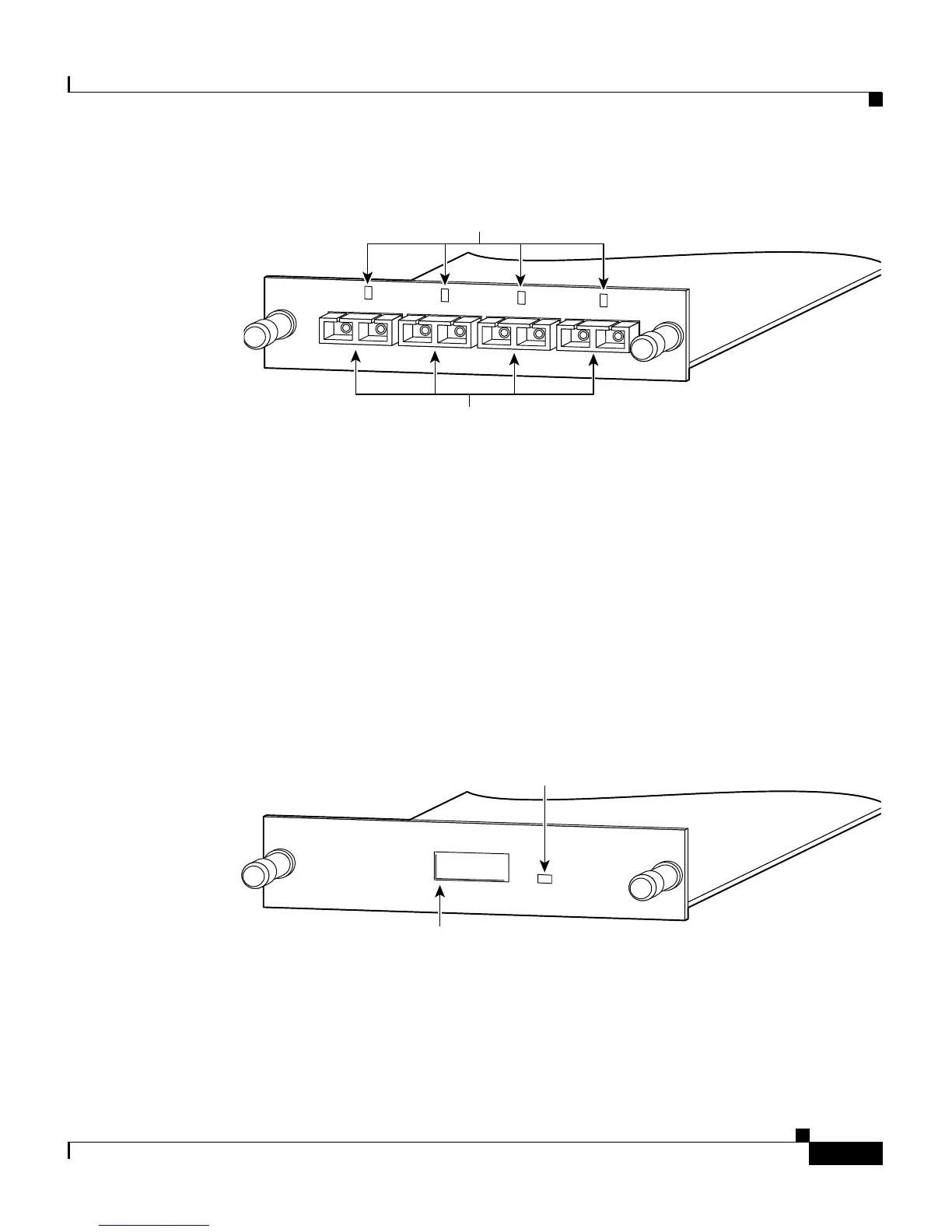

Figure 1-4 1000BaseX Module
15678
1X
2X
Four 100BaseFX ports
Tighten
Screws
To Activate
1
2
3
4
100BaseFX
LEDs
WS-X2924-XL-V
17696
1X
2X
Slot for
1000BaseX port
Tighten
Screws
To Activate
WS-X2931-XL
1000BaseX
LED
