Catalyst 2900 Series XL Modules Hardware Installation Guide
78-5912-03
Chapter 1 Overview
Deployment Examples
High-Performance Workgroup

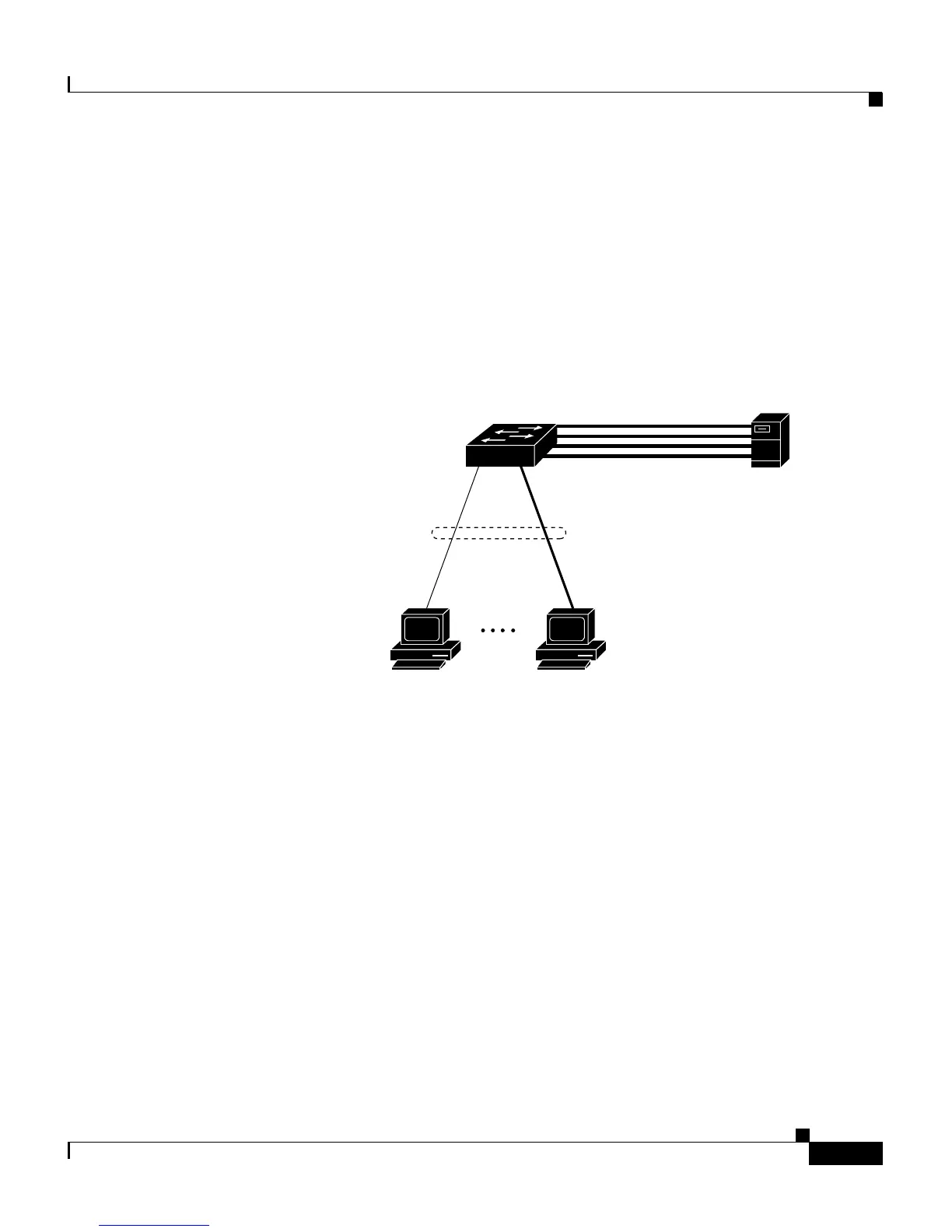

Figure 1-12 shows a high-performance client-server workgroup. A Catalyst
2924M XL switch with a 10/100 module installed connects the PCs and creates a
four-port Fast EtherChannel link to a high-performance server supporting Fast
EtherChannel.
Figure 1-12 High-Performance Client-Server Workgroup
S6770
Catalyst 2924M XL
with 10/100 module
10Base T or
100BaseTX PCs
Fast/Gigabit
EtherChannel links
Switched full-duplex
10BaseT/100BaseTX links
High-performance
server
