Rack-Mount the Switch

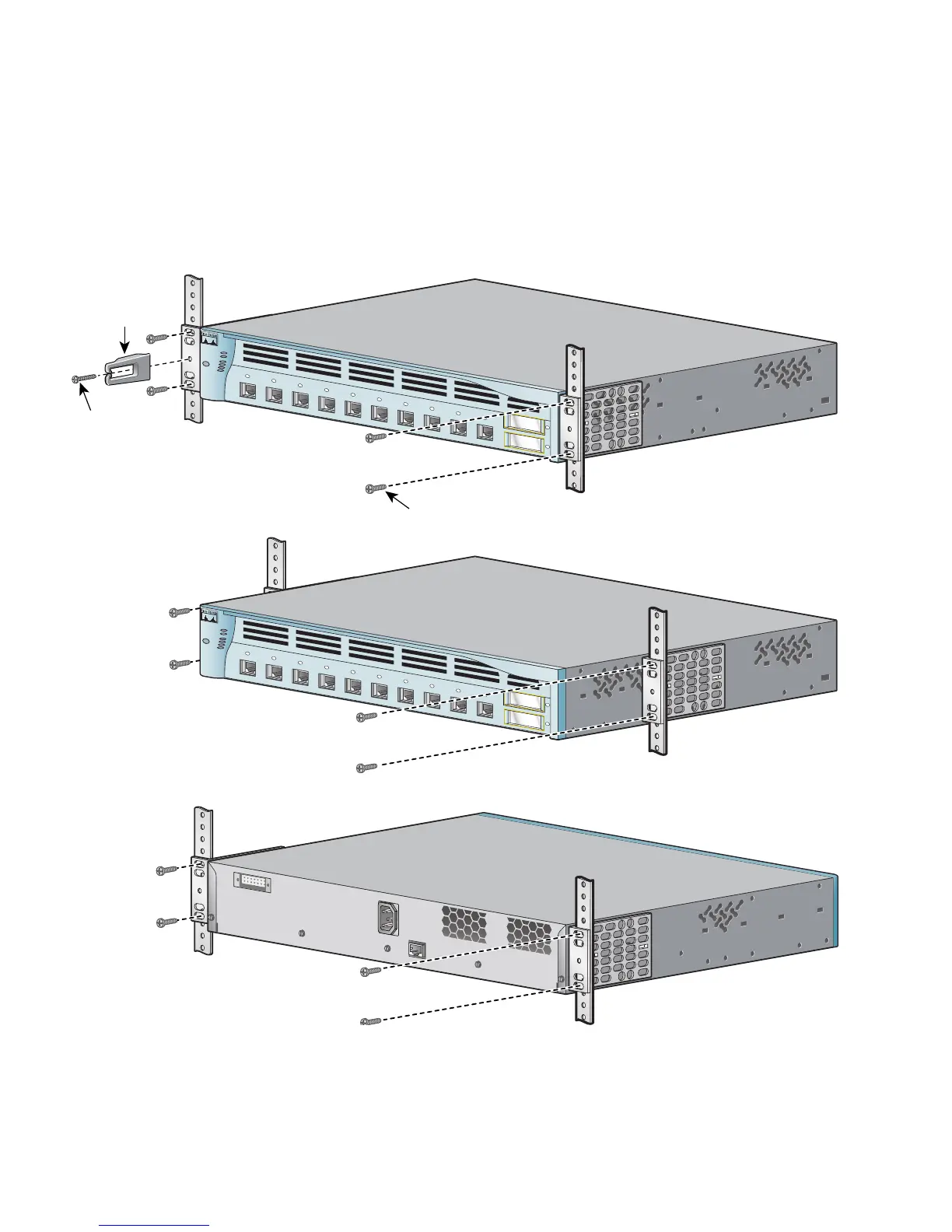

Use the black Phillips machine screw to attach the cable guide to the left or right bracket. Use the four
number-12 Phillips machine screws to attach the brackets to the rack.
Cable
guide
Front-mounting position
Mid-mounting position
(telco rack)
Rear-mounting position
Black Phillips
machine screw
Number-12 Phillips
machine screws
