Cisco Catalyst 3560-CX Product Overview

Internal Power Supply
All the switches except Catalyst 3560CX-8PT-S are powered through their internal power supplies. The
internal power supply is an autoranging unit that supports input voltages between 100 and 240 VAC. Plug
the AC power cord into the AC power connector and into an AC power outlet.
All the switches are powered through their internal power supplies. The internal power supply is an autoranging
unit that supports input voltages between 100 and 240 VAC (max of 90V to 264V). The AC frequency range
of the power supply is 50Hz~60Hz. Plug the AC power cord into the AC power connector and into an AC
power outlet.
Security Slot
The switches have security slots on the rear panel. You can install an optional cable lock, such as the type
that is used to secure a laptop computer, to secure the switch.

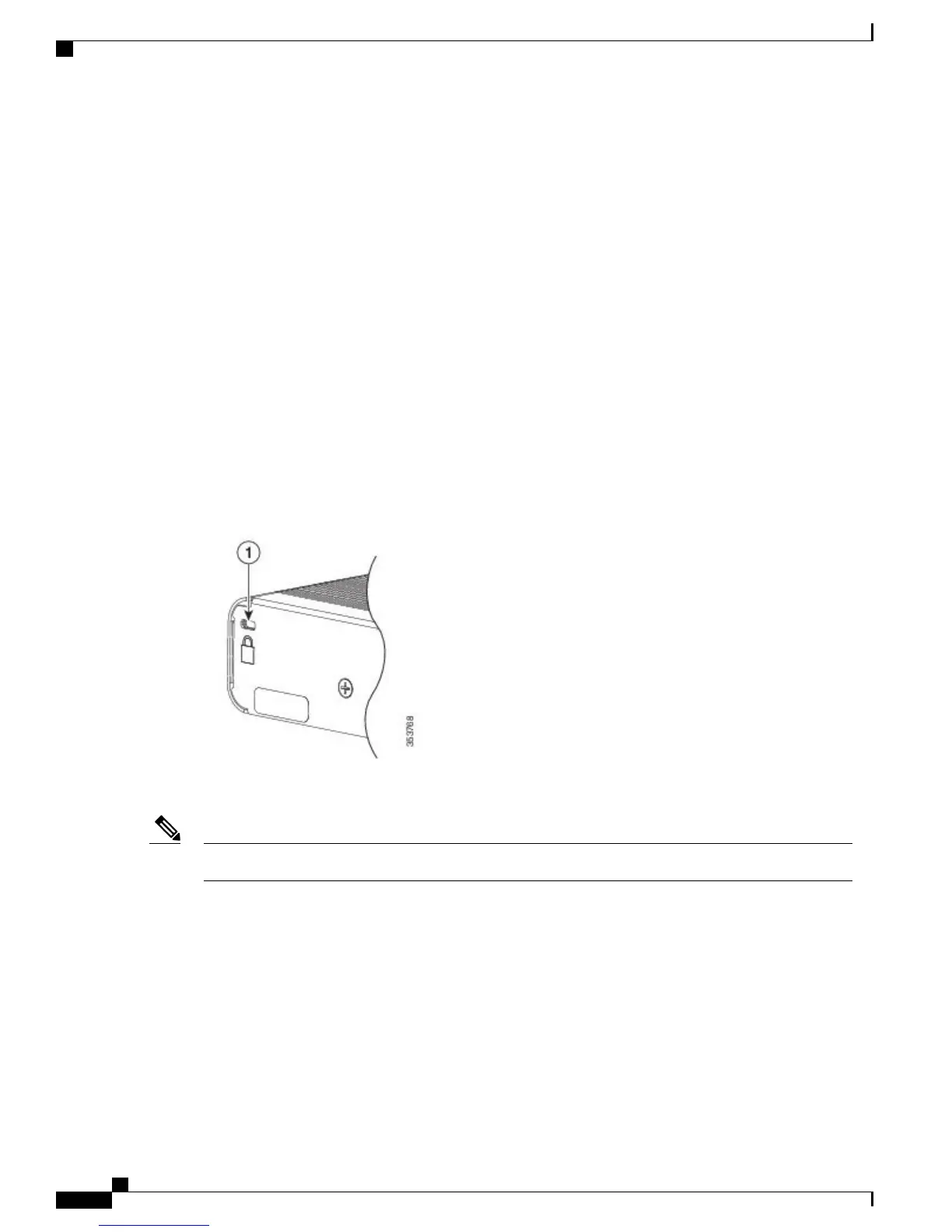

Figure 9: Switch Rear Panel
For PoE models, the security slot is on the right side of the rear panel.Note
Auxiliary Power Adapter
Catalyst 3560CX-8PT-S switches can be powered either through the 10/100/1000 uplink ports receiving power
from a PoE, PoE+ or UPOE switch or through an auxiliary AC-DC or DC-DC power adapter. You can order
Catalyst 3560-CX and 2960-CX Switch Hardware Installation Guide
12
Product Overview
Internal Power Supply

Cisco Catalyst 3560-CX Specifications

General

Model	WS-C3560CX-8PC-S
Switching Capacity	20 Gbps
Product Type	Switch
Manageable	Yes
Layer Supported	Layer 3
Jumbo Frame Support	Yes
Jumbo Frame Size	9198 bytes
Input Voltage	100 - 240 VAC
Operating Temperature	32 to 113°F (0 to 45°C)
Power Supply	Internal
Ports	8 x 10/100/1000 Ethernet Ports
Uplink Ports	2 x 1G SFP
PoE	PoE+
Form Factor	Desktop, Wall-mountable
MAC Address Table Size	16, 000 entries
Power Source	AC
