Catalyst 3750-X and 3560-X Switch Getting Started Guide
OL-19590-01
Securing the AC Power Cord (Optional)
Securing the AC Power Cord (Optional)
253160
AC OK
C3KX-PWR-715WAC
PS OK
AC OK
C3KX-PWR-715WAC
PS OK

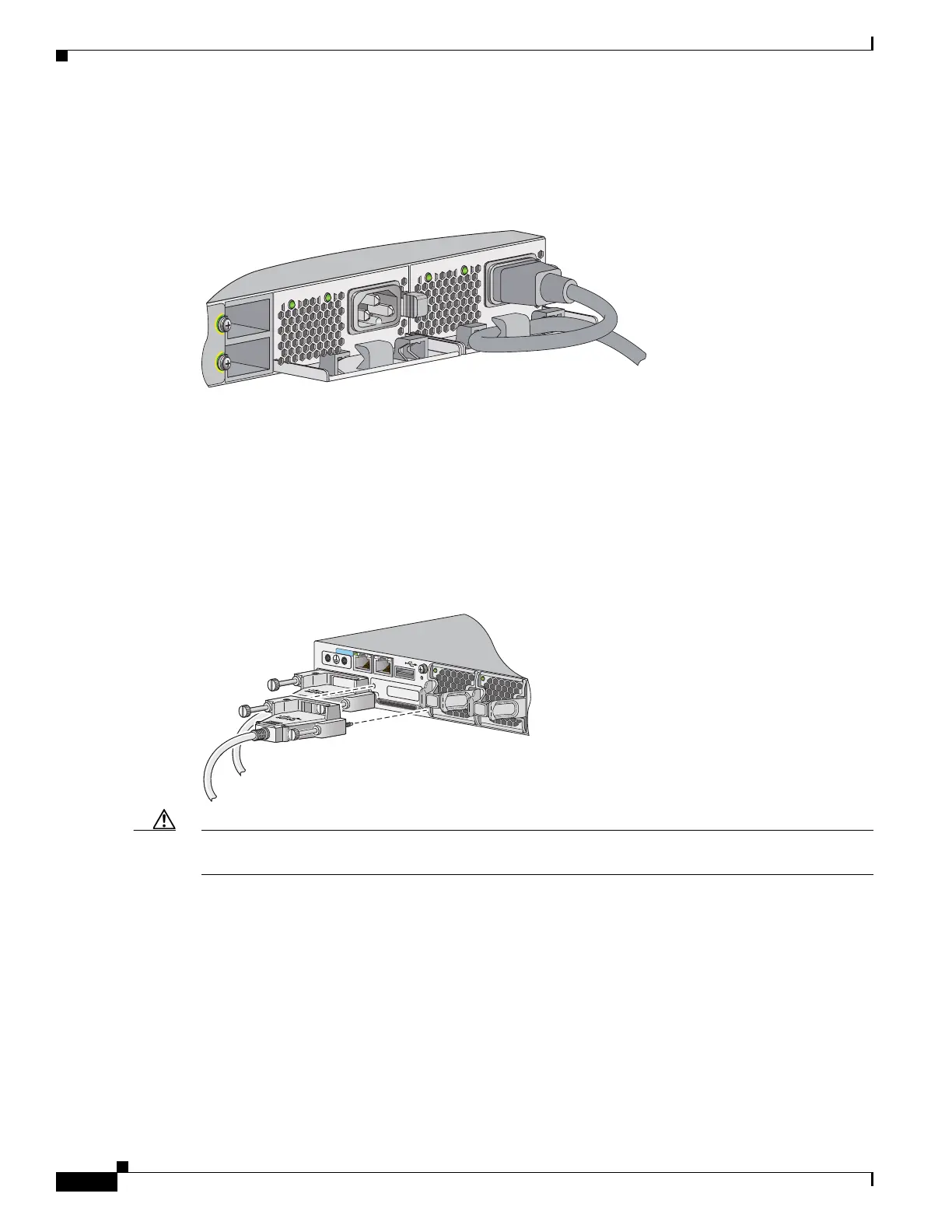

Make a loop in the power cord and thread it through the power cord retainer. Connect the power cord to
the power supply.
Connecting the StackWise Cables (Catalyst 3750-X Switch)
Always use a Cisco-approved StackWise cable to connect the switches.
Connect the cable to the StackWise port on the switch rear panel. Use the window in the StackWise cable
to align the connector. Use a ratcheting torque screwdriver to tighten the retainer screws to 5-inch pound
of torque. Connect the other end of the cable to the port of the other switch, and tighten the retainer
screws to 5-inch pound of torque. Avoid overtightening the screws.
Caution Removing and installing the StackWise cable can shorten its life. Do not remove and insert the cable
more often than is necessary.
StackWise Cabling Configurations
This illustration shows the recommended stack configuration with connections using 0.5-meter
StackWise cables.
For more configuration examples, see the hardware installation guide on Cisco.com.
RESET
CONSOLE
STACK 1
STACK 2
AUX

Cisco Catalyst 3560-X Series Specifications

General

Product Type	Switch
Layer	Layer 3
Model	Cisco Catalyst 3560-X Series
Ports	24 or 48 x 10/100/1000 Ethernet ports
Stacking	Yes, with FlexStack
Power Supply	Internal power supply (redundant power supply optional)
PoE	Available on select models (PoE and PoE+)
MAC Address Table Size	Up to 16, 000 entries
Layer 3 Features	RIP, OSPF, EIGRP, PIM
Security Features	ACLs, 802.1X
Management	CLI, SNMP, Web GUI
Operating Humidity	10 to 95% (noncondensing)
Dimensions	4.4 x 44.5 x 37.8 cm
