Cisco Catalyst 3560-X Series User Manual

18
Catalyst 3750-X and 3560-X Switch Getting Started Guide
OL-19590-01
Connecting the Switch Ports
SFP-Module Ports
Use only Cisco SFP modules with the switch. For a list of supported modules, see the release notes on
Cisco.com. For detailed instructions on installing, removing, and connecting to SFP modules, see the
SFP module documentation.
Verify Port Connectivity
After you connect a device to the switch port, the port LED turns amber for about 30 seconds while the
switch establishes a link. The LED turns green when the switch and the attached device have a link. If the
LED is off, the device might not be turned on, there might be a cable problem, or there might be a
problem with the adapter installed in the device.

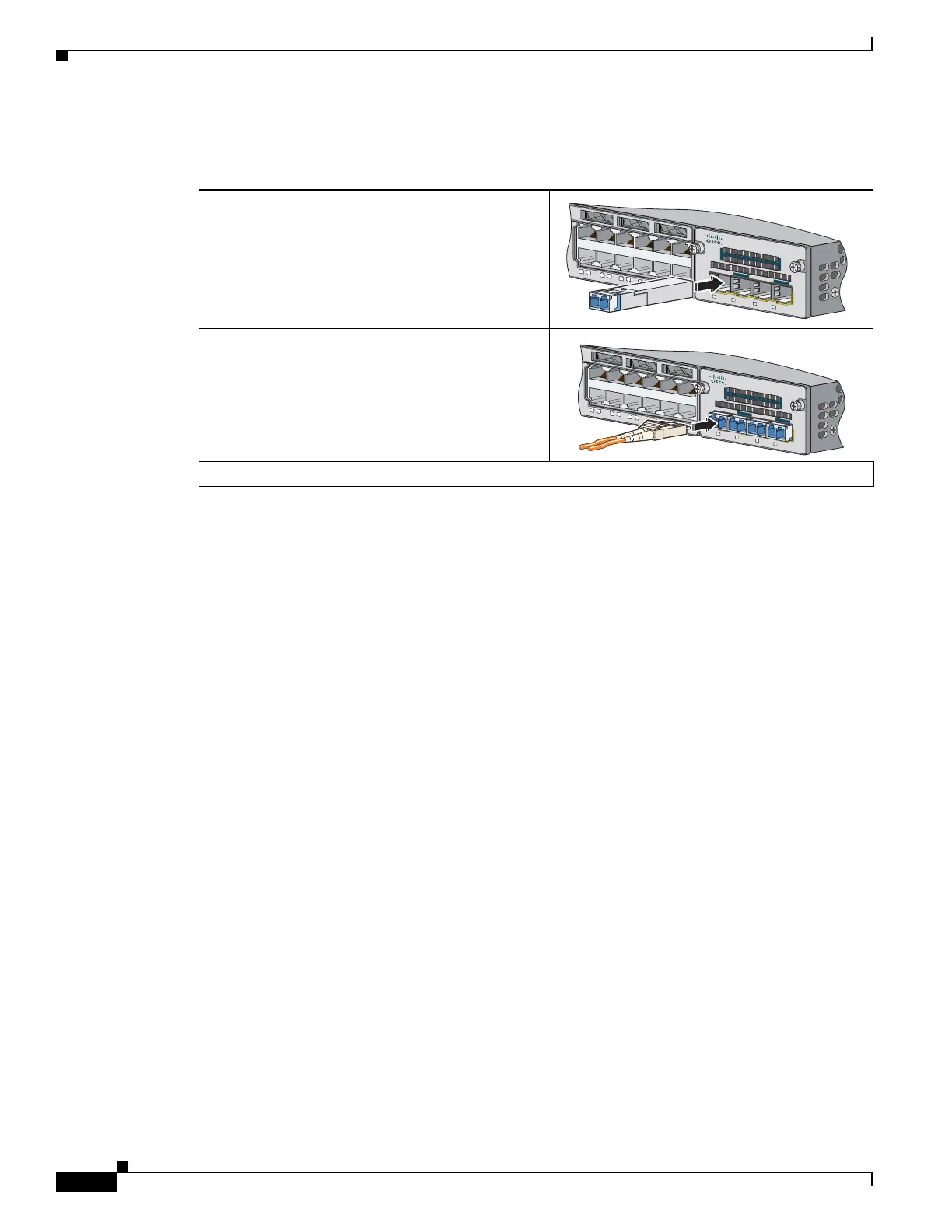

Step 1
Hold the SFP module on the sides, and insert it into
the switch slot until you feel the connector snap into
place.
Step 2
Connect an appropriate cable to the module port.
Step 3
Connect the other cable end to the other device.
Catalyst 3750-X PoE+48
37
38
39
40
41
42
43
44
9
10
11
12
C3KX-NM-10G
NETWORK
MODULE
G1
G2/TE1
G3
G4/TE2
Catalyst 3750-X PoE+48
37
38
39
40
41
42
7
8
9
10
11
12
C3KX-NM-10G
NETWORK
MODULE
G1
G2/TE1
G3
G4/TE2

Cisco Catalyst 3560-X Series Specifications

General

Product Type	Switch
Layer	Layer 3
Model	Cisco Catalyst 3560-X Series
Ports	24 or 48 x 10/100/1000 Ethernet ports
Stacking	Yes, with FlexStack
Power Supply	Internal power supply (redundant power supply optional)
PoE	Available on select models (PoE and PoE+)
MAC Address Table Size	Up to 16, 000 entries
Layer 3 Features	RIP, OSPF, EIGRP, PIM
Security Features	ACLs, 802.1X
Management	CLI, SNMP, Web GUI
Operating Humidity	10 to 95% (noncondensing)
Dimensions	4.4 x 44.5 x 37.8 cm
