Catalyst 3750-X and 3560-X Switch Getting Started Guide
OL-19590-01
Installing the Switch
Caution To comply with the Telcordia GR-1089 Network Equipment Building Systems (NEBS) standard for
electromagnetic compatibility and safety, connect the Ethernet cables only to intrabuilding or
nonexposed wiring or cabling.
Note The grounding architecture of this product is DC-isolated (DC-I).

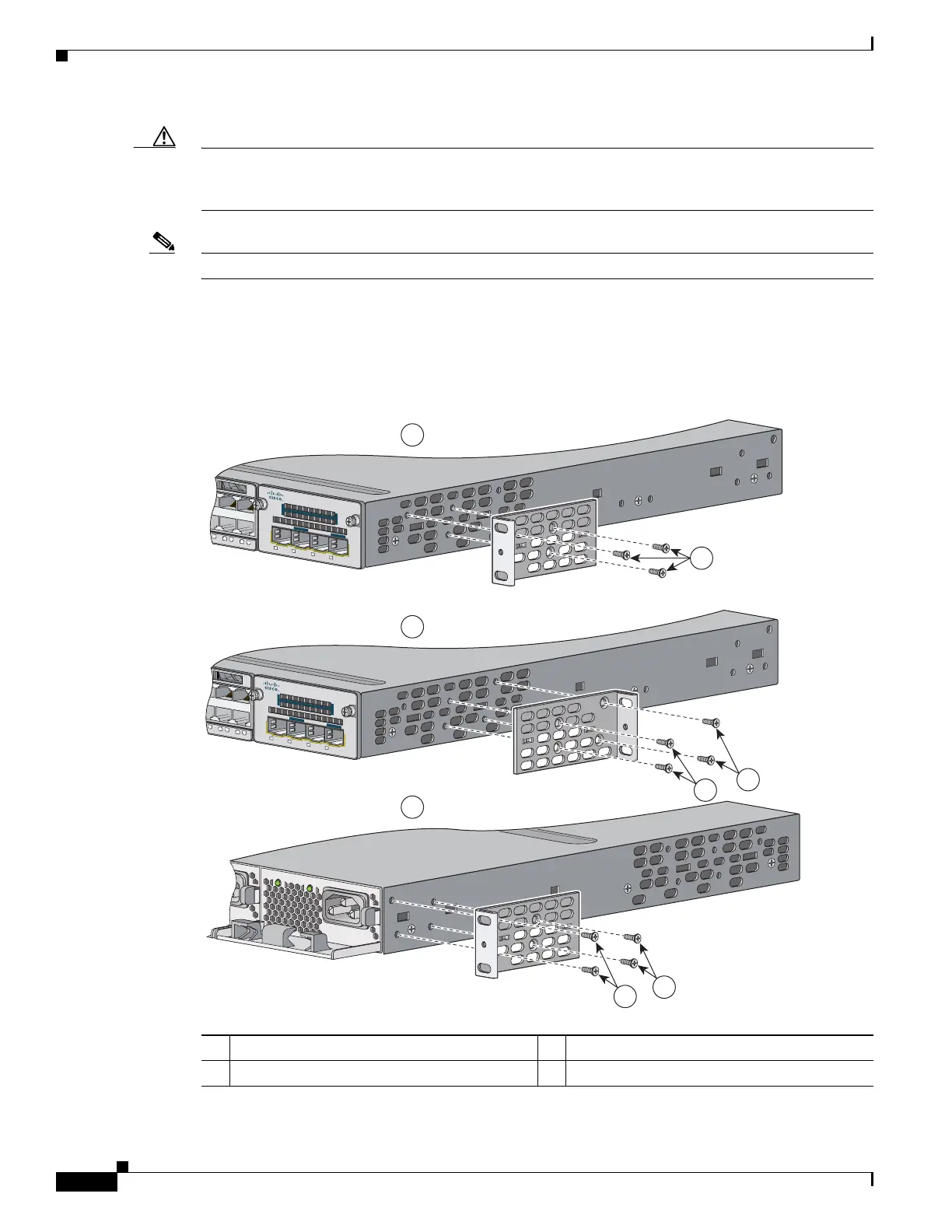

Attaching the Brackets
Use three (for front-mount) or four (for mid- or rear-mount) number-8 Phillips flat-head screws to attach
the long side of each bracket to the switch in one of these mounting positions.
1 Front-mounting position 3 Mid-mounting position
2 Number-8 Phillips flat-head screws 4 Rear-mounting position
5WAC
AC OK
C3KX-PWR-715WAC
PS OK
Catalyst 3750-X PoE+48
8
9
10
11
12
C3KX-NM-10G
NETWORK
MODULE
G1
G2/TE1
G3
G4/TE2
Catalyst 3750-X PoE+48
8
9
10
11
12
C3KX-NM-10G
NETWORK
MODULE
G1
G2/TE1
G3
G4/TE2
207656
1
2
3
4
2
2
2
2

Cisco Catalyst 3750-X Series Specifications

General

Model	Cisco Catalyst 3750-X Series
Switching Capacity	160 Gbps
Stacking Bandwidth	64 Gbps
StackWise Plus	Yes
Form Factor	Rack-mountable
RAM	256 MB
Flash Memory	64 MB
Ports	24 or 48 Ethernet 10/100/1000 ports
Uplinks	Optional 10GE network modules or 1GE network modules
PoE/PoE+ Support	Yes
Dimensions	44.5 x 38.6 x 4.5 cm
Jumbo Frame Support	Yes
Power Supply	AC/DC
Features	QoS, security
Operating Temperature	0 to 45°C
Forwarding Rate	101.2 Mpps
