Configurable 40-Gigabit ports
5
10-Gigabit ports
185, 6, 7, and 8
199, 10, 11, and 12
2013, 14, 15, and 16
5
To configure 10G ports to function as 40G ports, you need to use adapter cables that connect four 10G SFP+ ports of the switch on one end to a 40G QSFP
port of the switch on the other end.
Catalyst 6832-X-LE

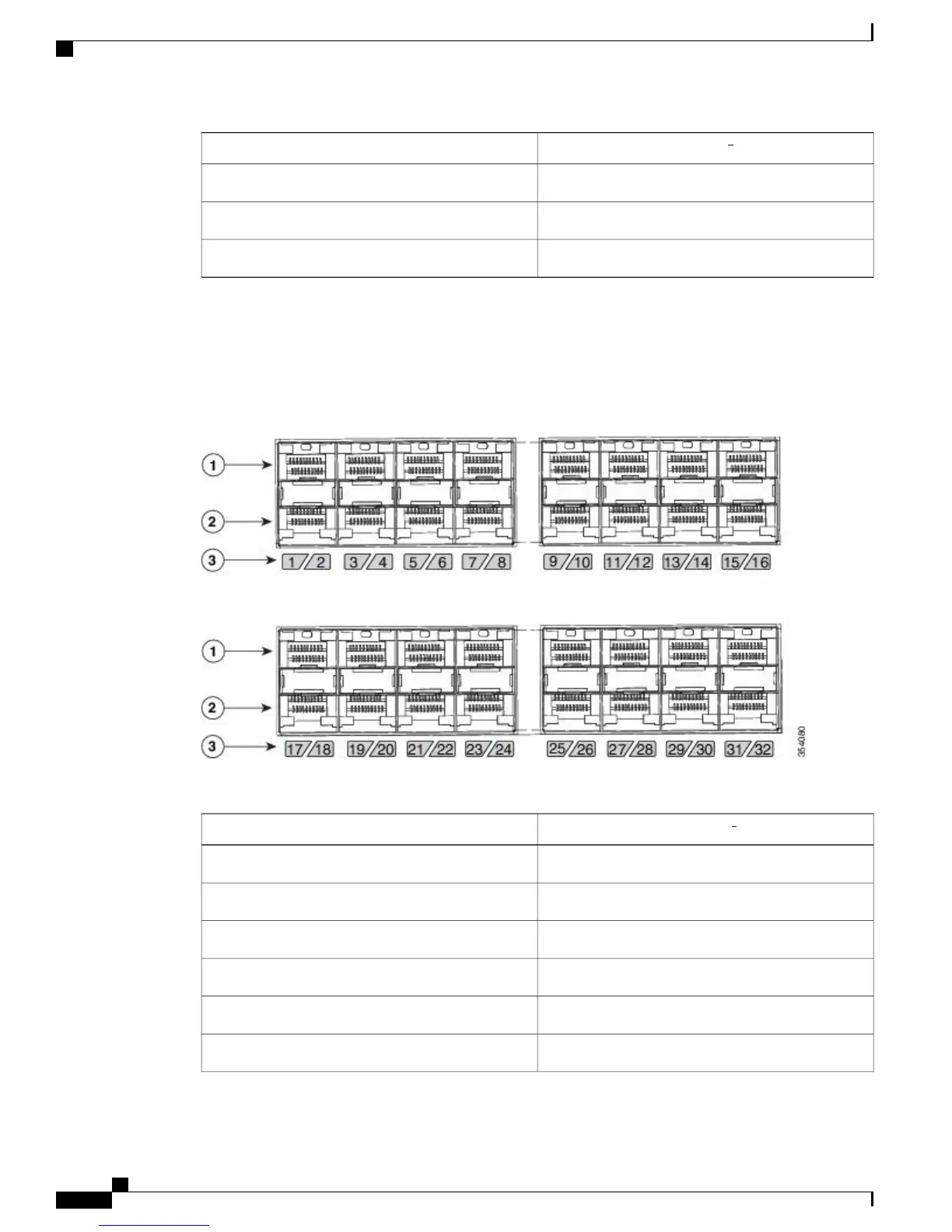

Figure 6: 10G native port numbering
Table 3: Port mapping for Catalyst 6832-X-LE
Configurable 40-Gigabit ports
6
10-Gigabit ports
331, 2, 3, and 4
345, 6, 7, and 8
359, 10, 11, and 12
3613, 14, 15, and 16
3717, 18, 19, and 20
3821, 22, 23, and 24
Catalyst 6840-X Switch Series Hardware Installation Guide
10
Product Overview
SFP and SFP+ Transceiver Module Ports
