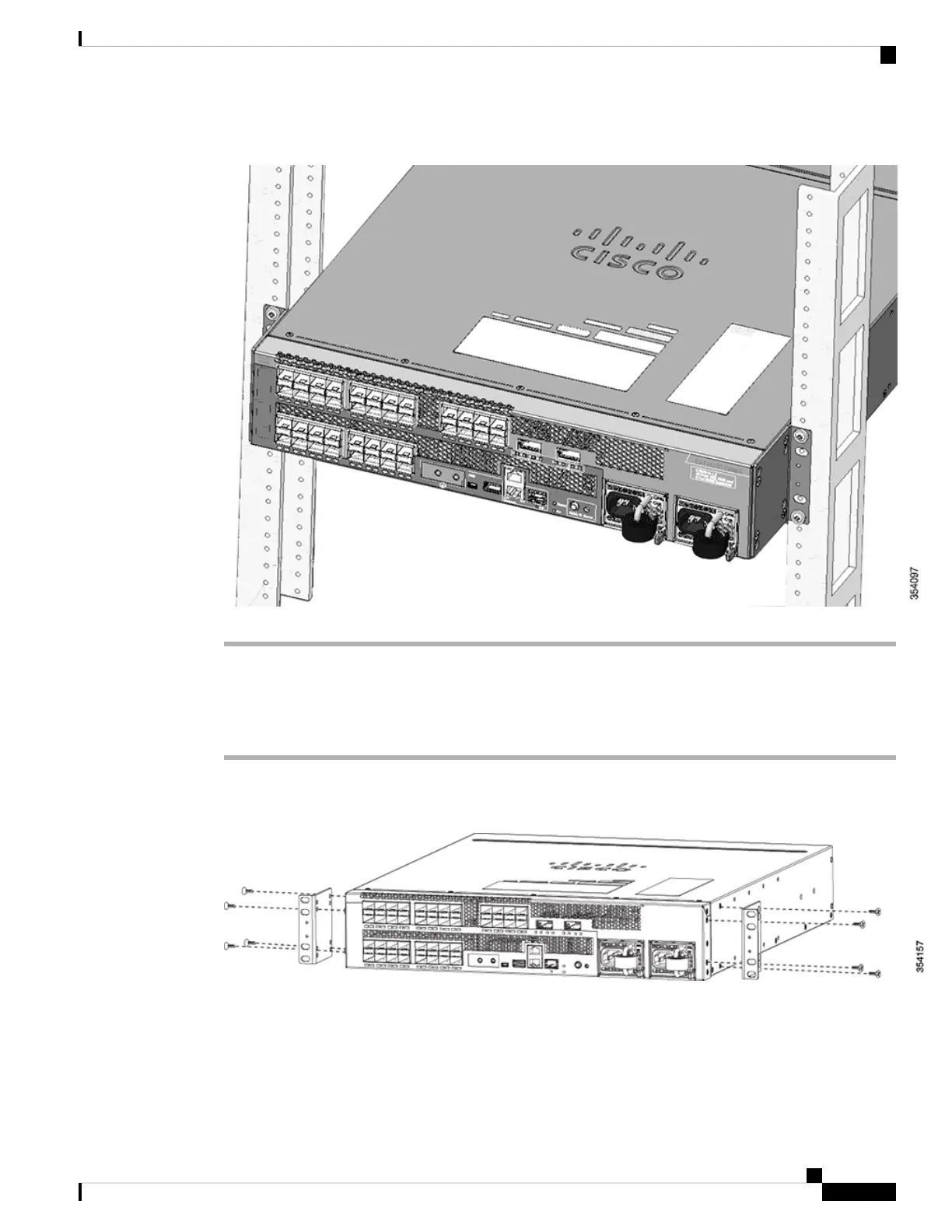

Figure 16: Installing the chassis on a Rack with a 17.5 in. (44.45 cm) Opening
Installing the L Brackets on a Rack with 17.75 in. (45.09 cm) Opening
Procedure
Step 1 Attach the L bracket to the chassis as shown in the following figure.
Figure 17: Attaching the L Bracket to the chassis
Step 2 Position the chassis in the rack and align the mounting holes in the L bracket with the mounting holes in the
equipment rack.
Step 3 Secure the chassis using four screws through the holes in the L bracket and into the rack post holes.
Catalyst 6840-X Switch Series Hardware Installation Guide
41
Installing the Switch
Installing the L Brackets on a Rack with 17.75 in. (45.09 cm) Opening
