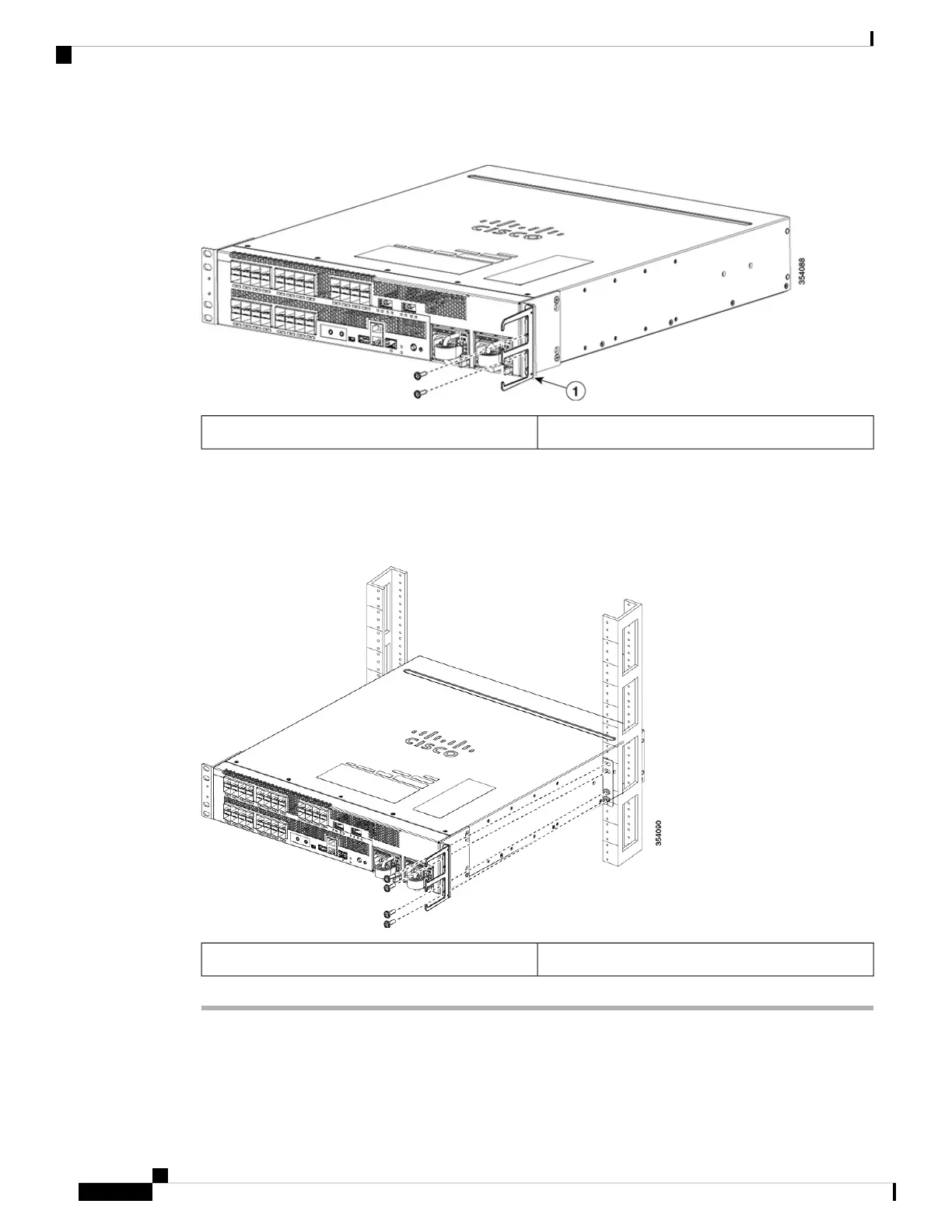

Figure 20: Installing the Cable Mount Guides
Cable guide1
Step 5 Install all four M4.0x20mmL screws (two on each side) through the cable guide mounting holes, into the L
bracket holes. Tighten the screws securely.
Step 6 Secure the chassis using four screws through the holes in the L bracket and into the rack post holes.
Figure 21: Installing the Cable Mount Guides
10-32 or 12-24 screws1
What to do next
After installing the chassis in its location, complete the installation process by following these procedures:
Catalyst 6840-X Switch Series Hardware Installation Guide
44
Installing the Switch
Installing the Chassis in a Two-Post Rack
