Cisco Catalyst 6840 Series User Manual

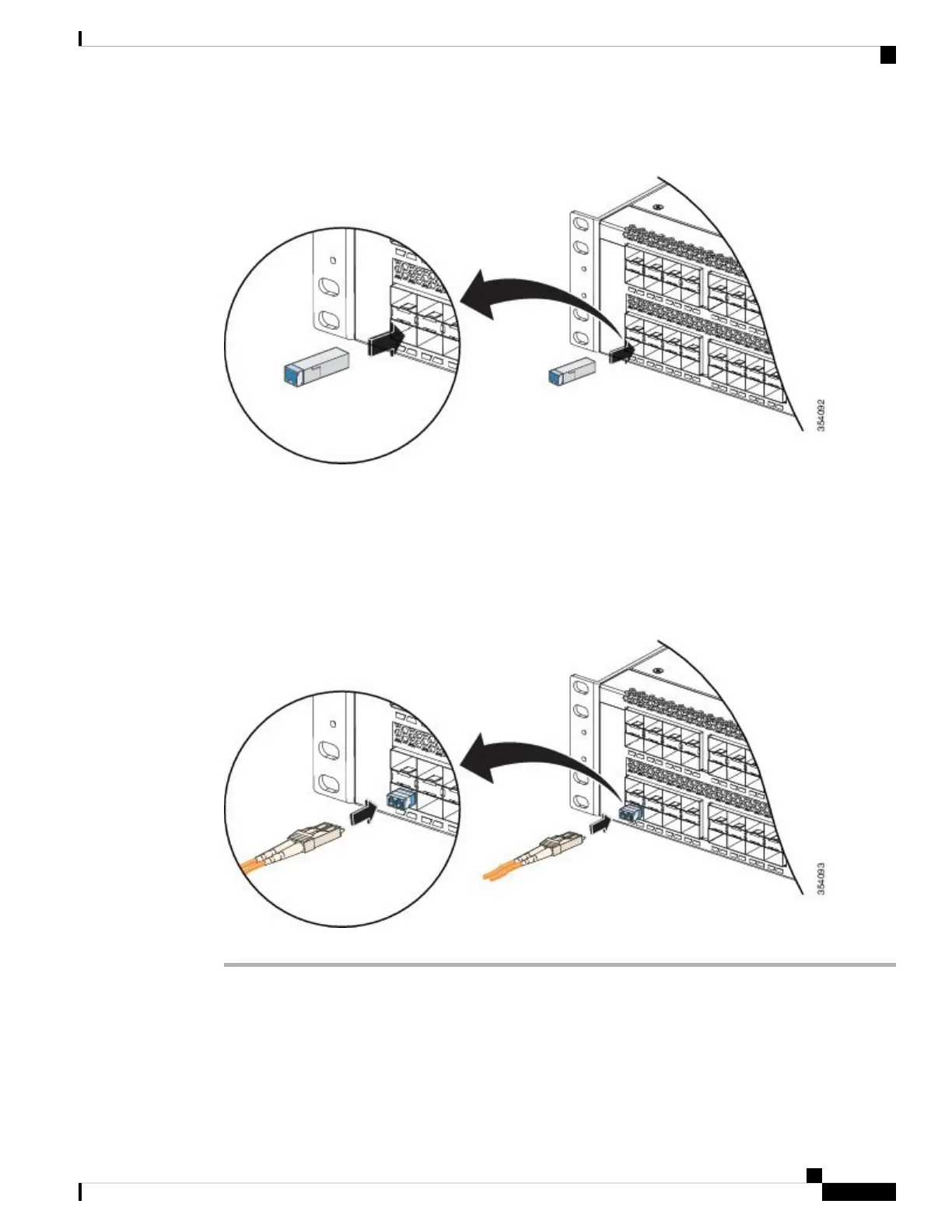

Figure 23: Installing an SFP Module in the SFP Transceiver Module Port
Step 5 If the module has a bale-clasp latch, close it to lock the SFP transceiver module in place.
If you are inserting the SFP transceiver module in the lower ports, you need to invert the module.
Note
Step 6 Remove the SFP dust plugs and save.
Step 7 Connect the SFP cables.
Figure 24: Port with SFP Transceiver Modules Installed
Catalyst 6840-X Switch Series Hardware Installation Guide
49
Installing the Switch
Installing SFP and SFP+ Transceiver Modules

Cisco Catalyst 6840 Series Specifications

General

Brand	Cisco
Model	Catalyst 6840 Series
Category	Switch
Language	English
