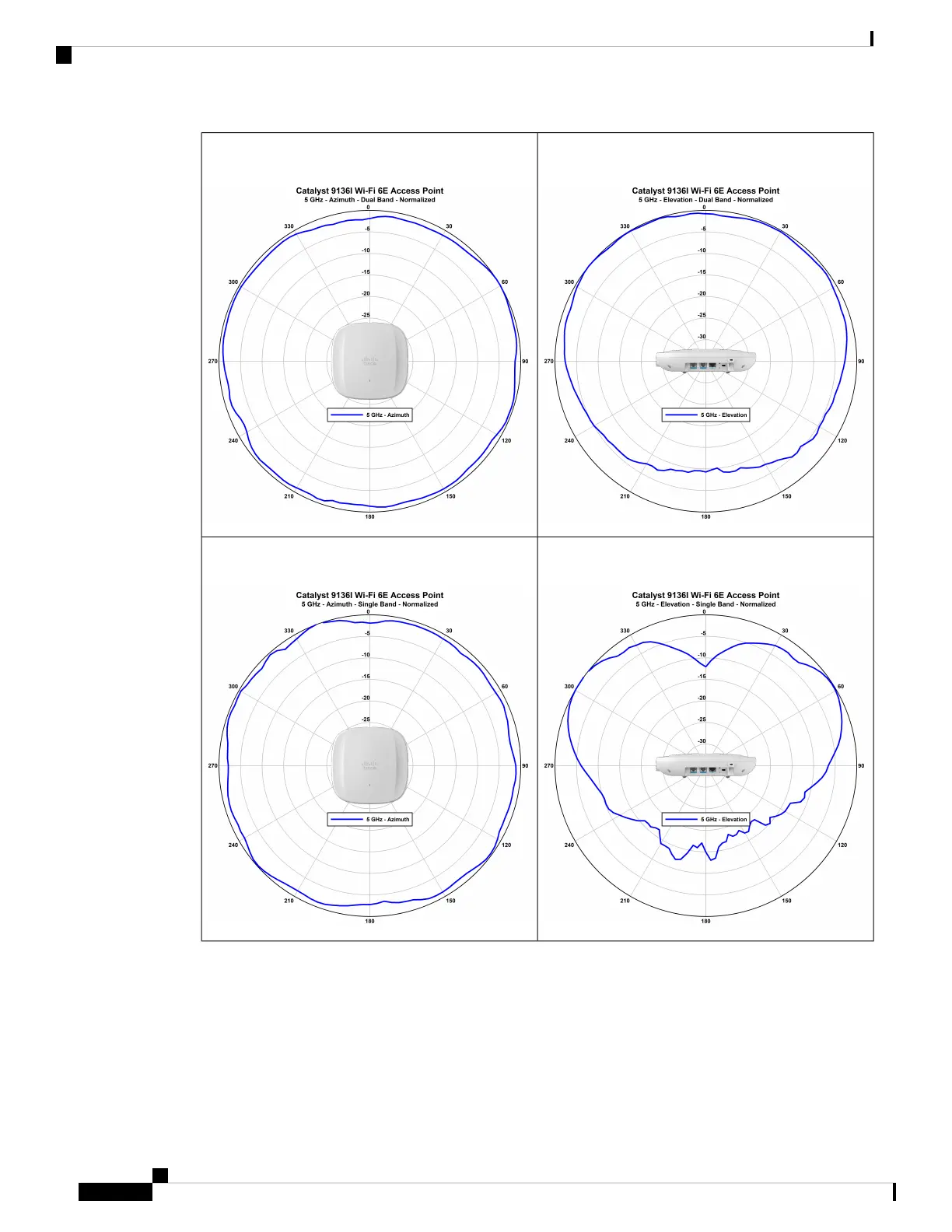

Figure 6: C9136I - Dual-Band Antenna Radiation Pattern (5-GHz
Elevation)
Figure 5: C9136I - Dual-Band Antenna Radiation Pattern (5-GHz
Azimuth)
Figure 8: C9136I - Single-Band Antenna Radiation Pattern (5-GHz
Elevation)
Figure 7: C9136I - Single-Band Antenna Radiation Pattern (5-GHz
Azimuth)
Cisco Catalyst 9136I Series Access Point Hardware Installation Guide
8
Hardware Features
C9136I (Internal Antenna) Radiation Patterns
