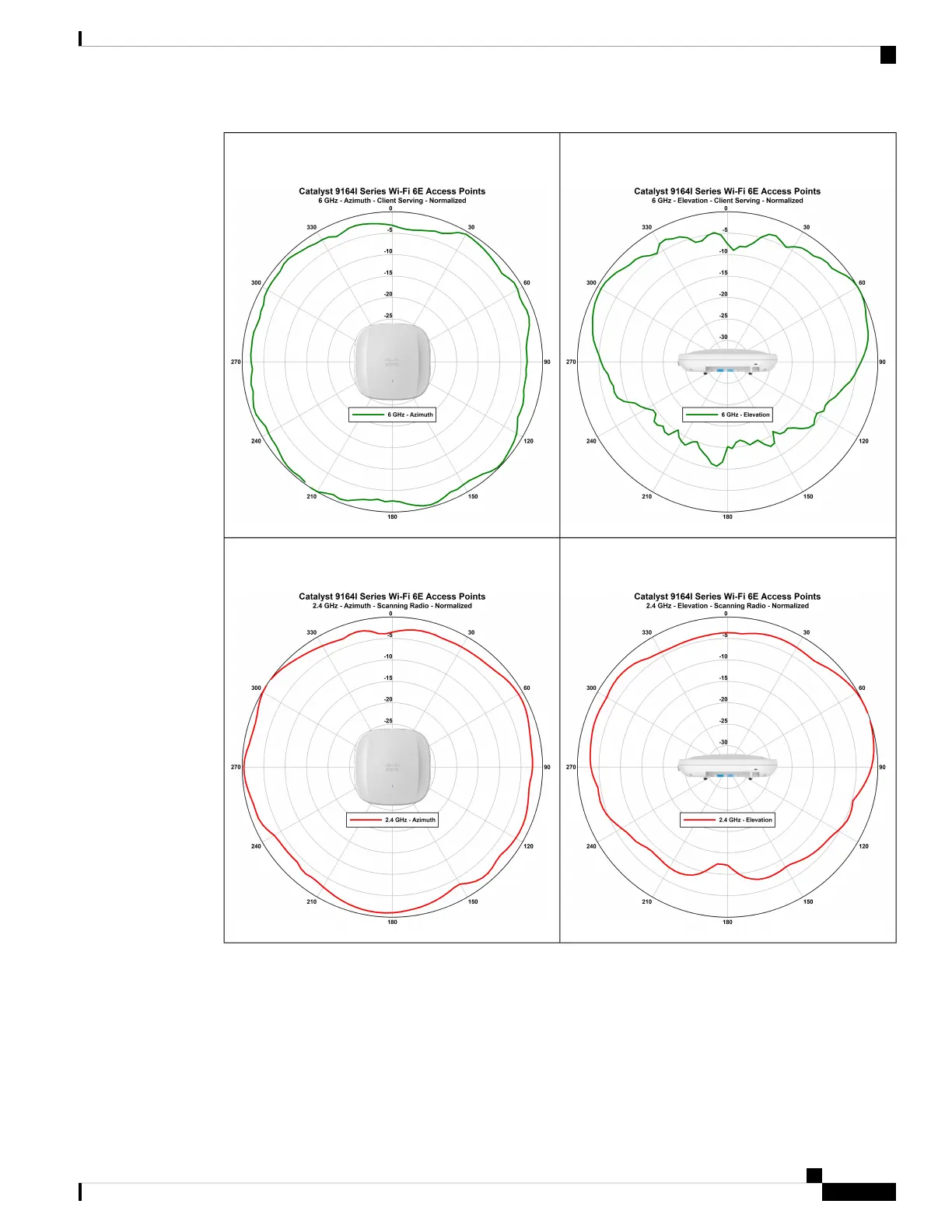

Figure 8: CW9164I - Client-Serving Normalized Radiation Pattern
(6-GHz Elevation)
Figure 7: CW9164I - Client-Serving Normalized Radiation Pattern
(6-GHz Azimuth)
Figure 10: CW9164I - Scanning Radio-Normalized Radiation Pattern
(2.4-GHz Elevation)
Figure 9: CW9164I - Scanning Radio-Normalized Radiation Pattern
(2.4-GHz Azimuth)
Cisco Catalyst 9164 Series Wi-Fi 6E Access Point Hardware Installation Guide
9
Hardware Features
CW9164I (Internal Antenna) Radiation Patterns
