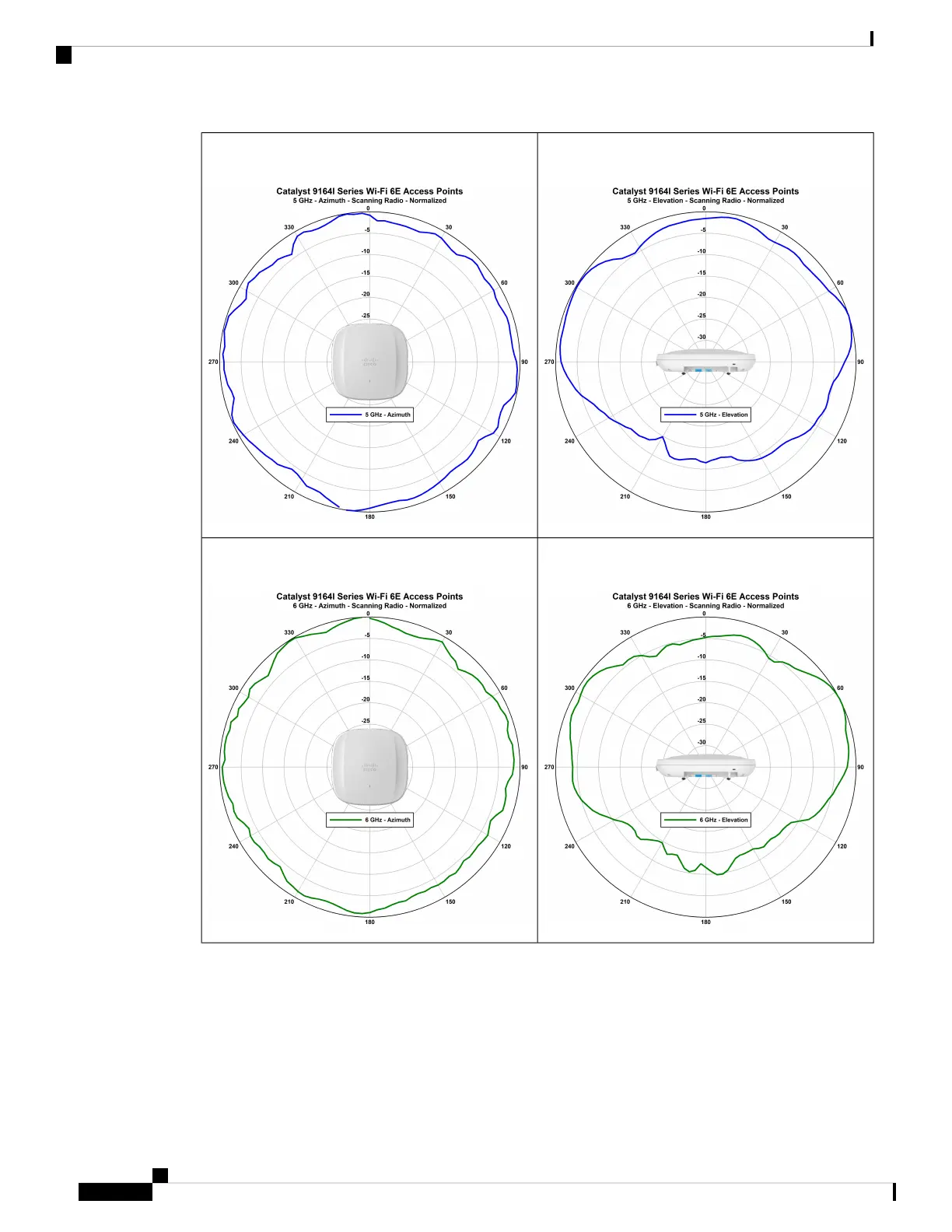

Figure 12: CW9164I - Scanning Radio-Normalized Radiation Pattern
(5-GHz Elevation)
Figure 11: CW9164I - Scanning Radio-Normalized Radiation Pattern
(5-GHz Azimuth)
Figure 14: CW9164I - Scanning Radio-Normalized Radiation Pattern
(6-GHz Elevation)
Figure 13: CW9164I - Scanning Radio-Normalized Radiation Pattern
(6-GHz Azimuth)
