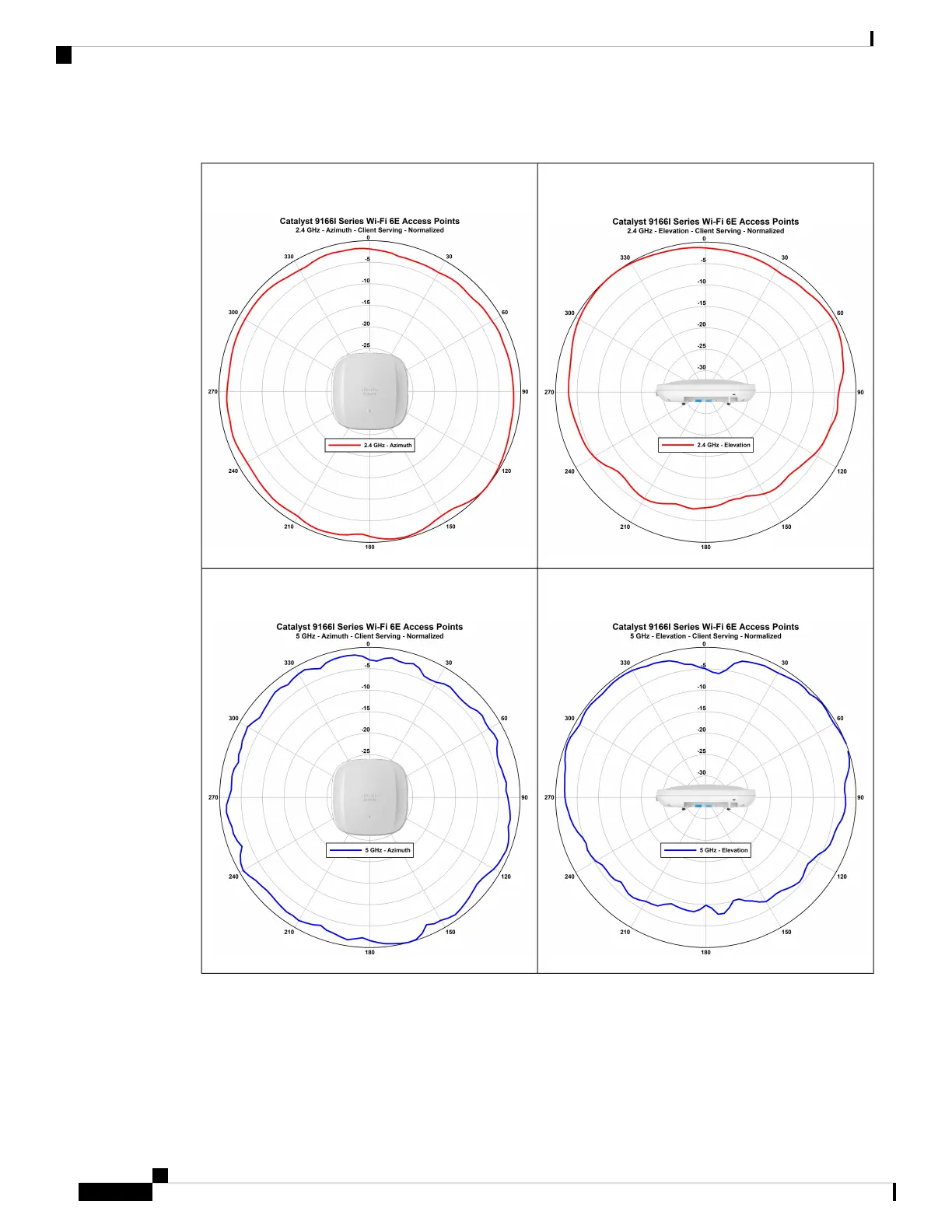

Table 3: Cisco Catalyst 9166I AP Radiation Patterns
Figure 4: CW9166I - Client-Serving Normalized Radiation Pattern
(2.4-GHz Elevation)
Figure 3: CW9166I - Client-Serving Normalized Radiation Pattern
(2.4-GHz Azimuth)
Figure 6: CW9166I - Client-Serving Normalized Radiation Pattern
(5-GHz Elevation)
Figure 5: CW9166I - Client-Serving Normalized Radiation Pattern
(5-GHz Azimuth)
Cisco Catalyst 9166 Series Wi-Fi 6E Access Point Hardware Installation Guide
10
Hardware Features
CW9166I (Internal Antenna) Radiation Patterns
