Cisco Catalyst 9500 Series Hardware Installation Guide

Front Panel

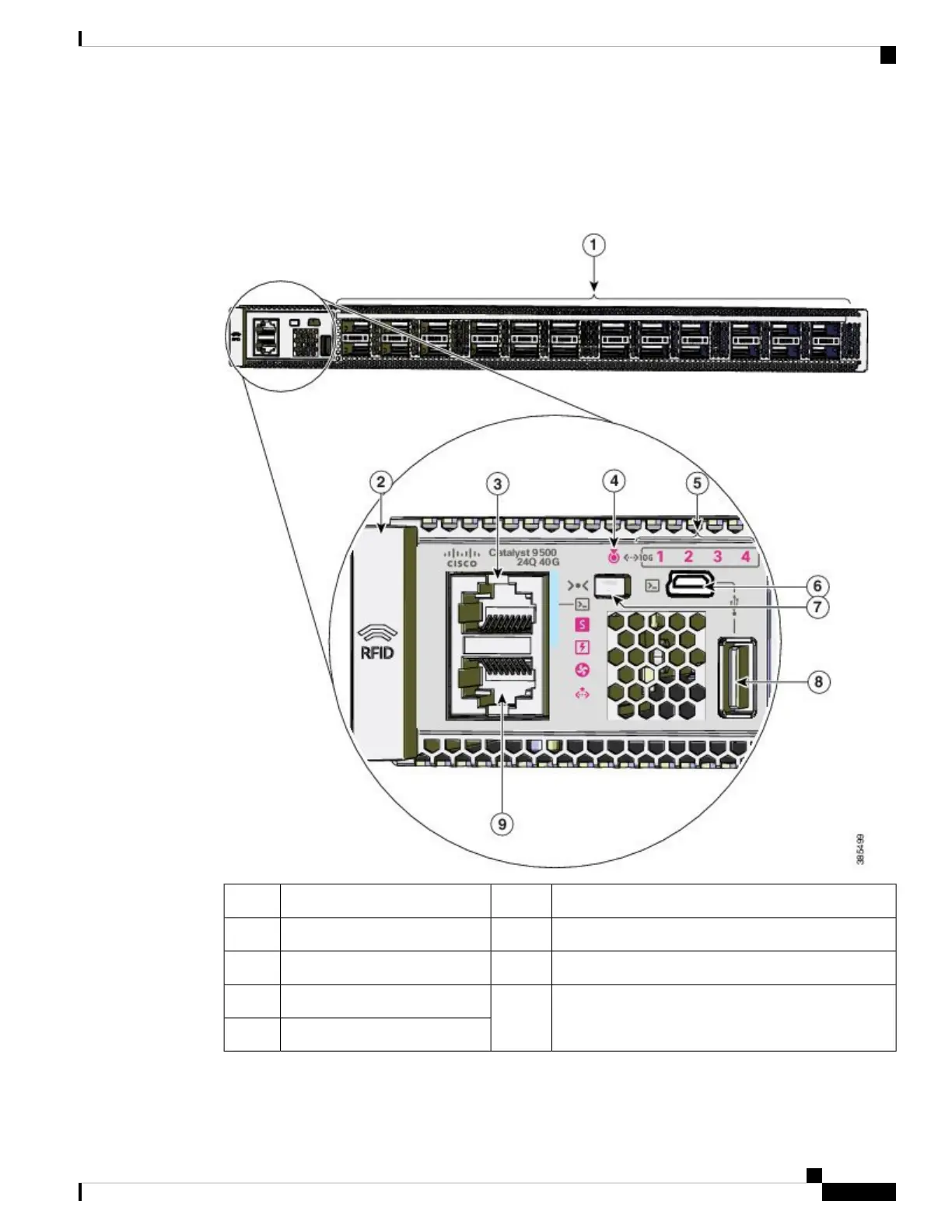

Figure 1: Front Panel of a 24-Port Cisco Catalyst 9500 Switch
USB mini Type B console port624 40G QSFP ports1
Mode button7RFID2
USB 2.0 host port8Console port (RJ-45 Serial)3
Ethernet management RJ-45 port9Blue beacon LED4
10G Status LEDs5
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
7
Product Overview
Front Panel

Cisco Catalyst 9500 Series Specifications

General

Series	Catalyst 9500 Series
Category	Switch
Software	Cisco IOS XE
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Fixed Uplink Modules	Varies by model
Stacking	Yes (StackWise Virtual)
Redundancy	Redundant power supplies and fans
Security	Advanced security features
PoE+	Available (varies by model)
Power Supply Options	AC and DC options (varies by model)
Relative Humidity	5% to 90% noncondensing
Dimensions (H x W x D)	Varies by model
Weight	Varies by model
Ports	Up to 48 ports (varies by model)
