Attaching the Cable Management Bracket
Before you begin
The cable management brackets should be mounted to each rack-mount bracket on the chassis to provide
cable management to both sides of the chassis. These brackets are screw-mounted to the rack-mount brackets
to allow easy installation and removal of cables.
The cable-management brackets for the Cisco Catalyst 9800-40 Wireless Controller contains one independent
cable-management U-type feature with two screws for each bracket.
Make certain that the cable-management bracket "U" feature is facing upwards when you attach it to the
chassis.
Note
Step 1 Align the cable-management bracket to the rack-mount bracket on one side of the Cisco Catalyst 9800-40 Wireless
Controller.
The cable-management bracket aligns to the top hole of the chassis rack-mount bracket.
Step 2 Using a Phillips screwdriver, insert one screw through the top screw hole of the cable-management bracket and into the
chassis rack-mount bracket and tighten the screw
Use the package of screws that came with your chassis containing four screws.
Note
The following figure shows where to attach the cable-management brackets to the Cisco Catalyst 9800-40 Wireless
Controller.

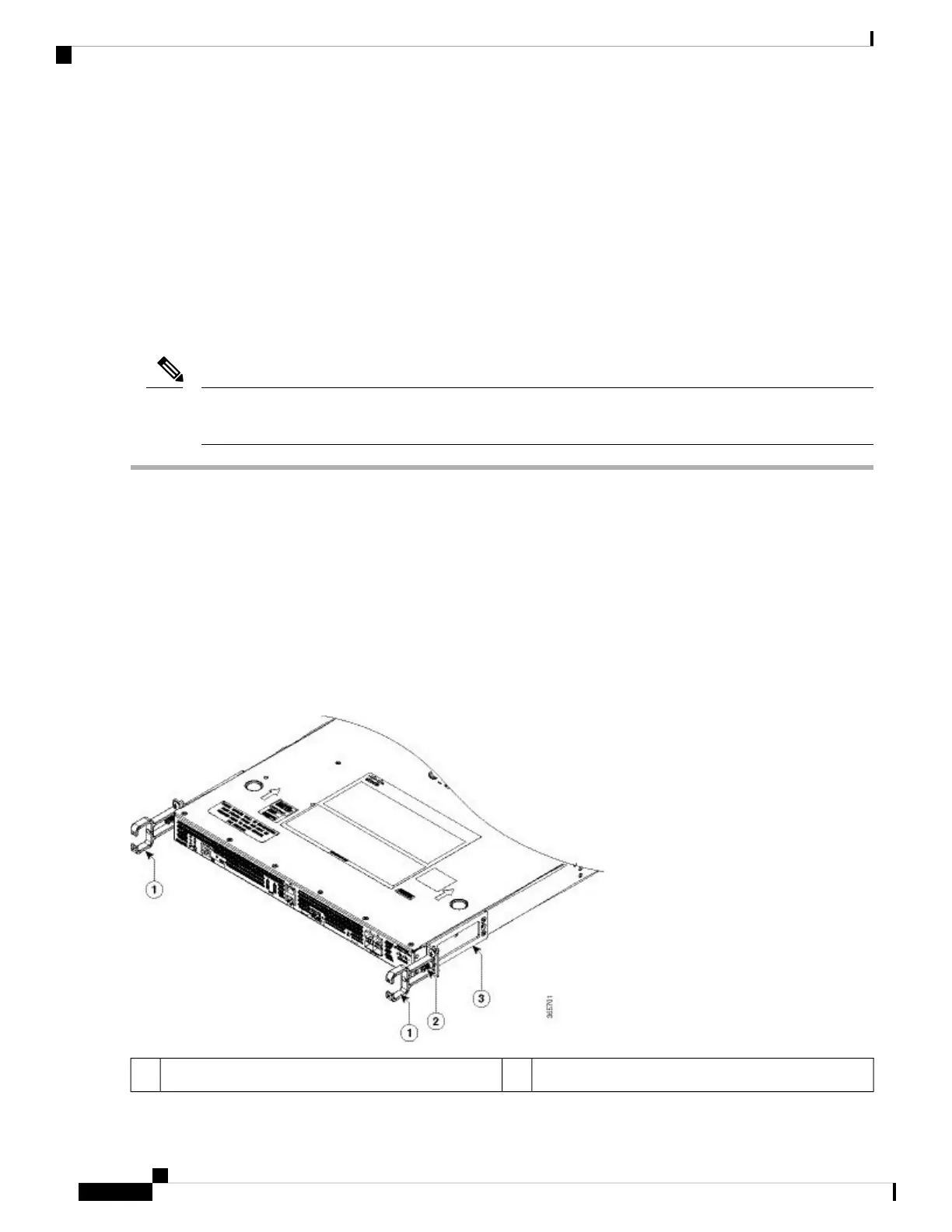

Figure 6: Attaching the Cable-Management Brackets to the Cisco Catalyst 9800-40 Wireless Controller
Chassis front rack-mount bracket3Cable-management bracket "RU" feature1
