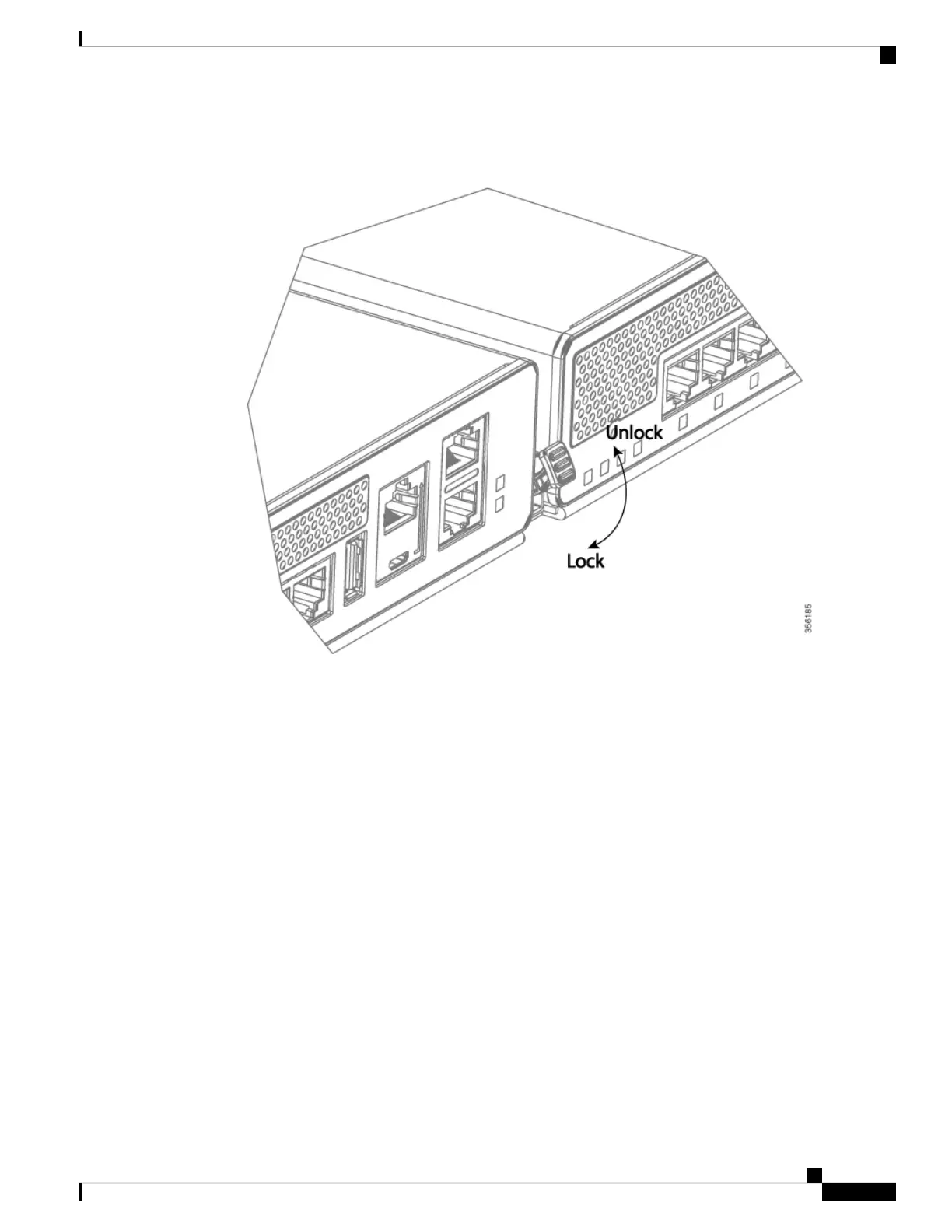

Figure 5: Close-up View of Center Latch Securing Controllers in a Rack
Step 3 Remove power supply baffle in rear tray. Baffles secure with tabs circled.
Installing the Cisco Catalyst 9800-L Wireless Controller
7
Installing the Cisco Catalyst 9800-L Wireless Controller
Rack Mounting the Controller
