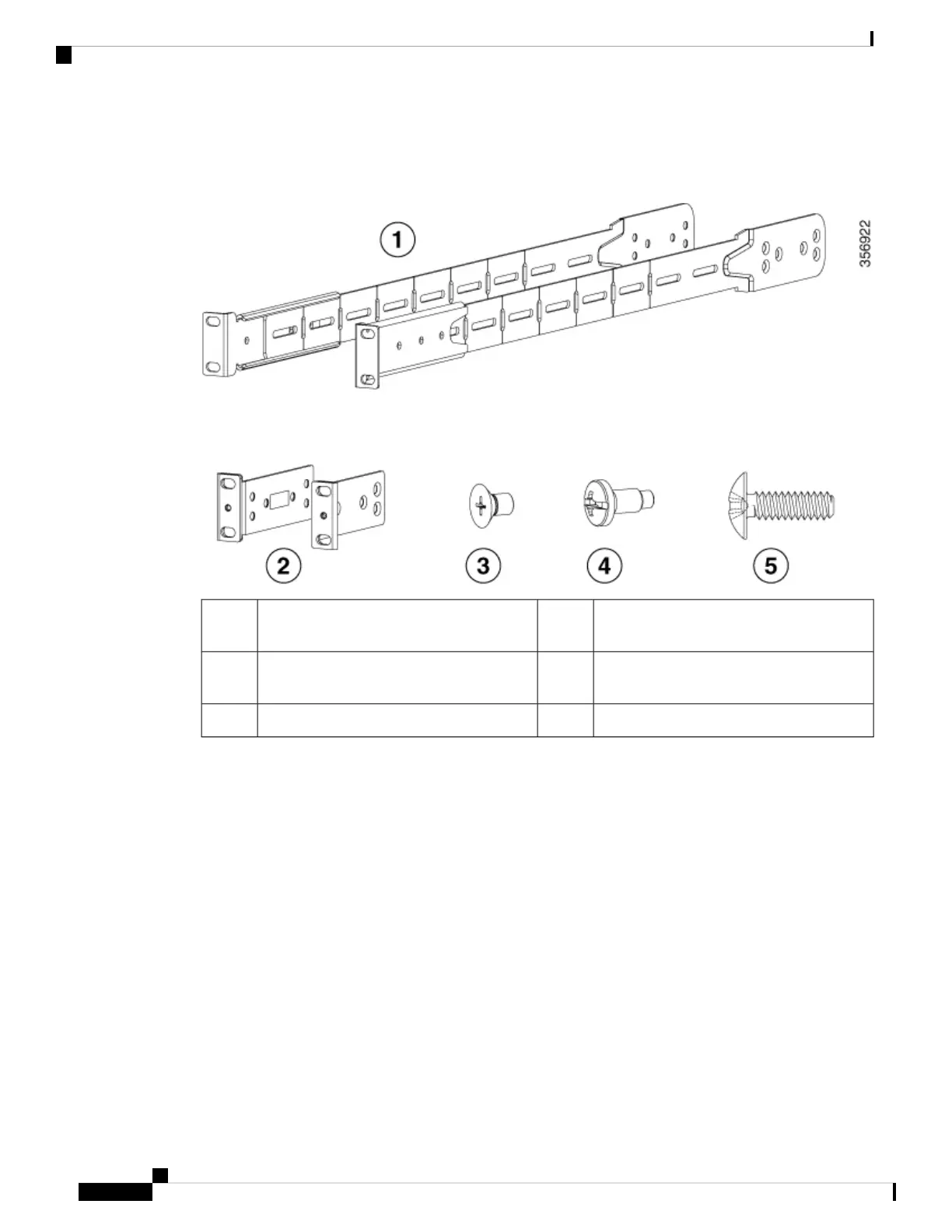

Figure 23: Four Post Rack Mount Kit for Cisco Catalyst 9500 High Performance Series Switches
This figure shows the four post rack mount kit for Cisco Catalyst 9500 High Performance Series Switches.
You can order the optional brackets from your Cisco sales representative.
Eight number-12 Phillips pan-head 0.50“
long screws
4Extension rails and brackets for four-point
mounting
1
Eight number-10 Phillips pan-head 0.625“
long screws
5Two 19-inch brackets2
--24 M4.0x6mm Phillips flat-head screws3
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
44
Installing a Switch
Rack-Mounting
